IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Codec—Part Number CTS-5K-ENCODER= or CTS-5K-HOSTCPU=
Step 4 Unfasten the six screws that hold the codec to the cable and pull the codec upward and outward from the
frame using a #3 Phillips driver. The procedure to remove the encoder/decoder codec, or the Host CPU
codec, is the same.

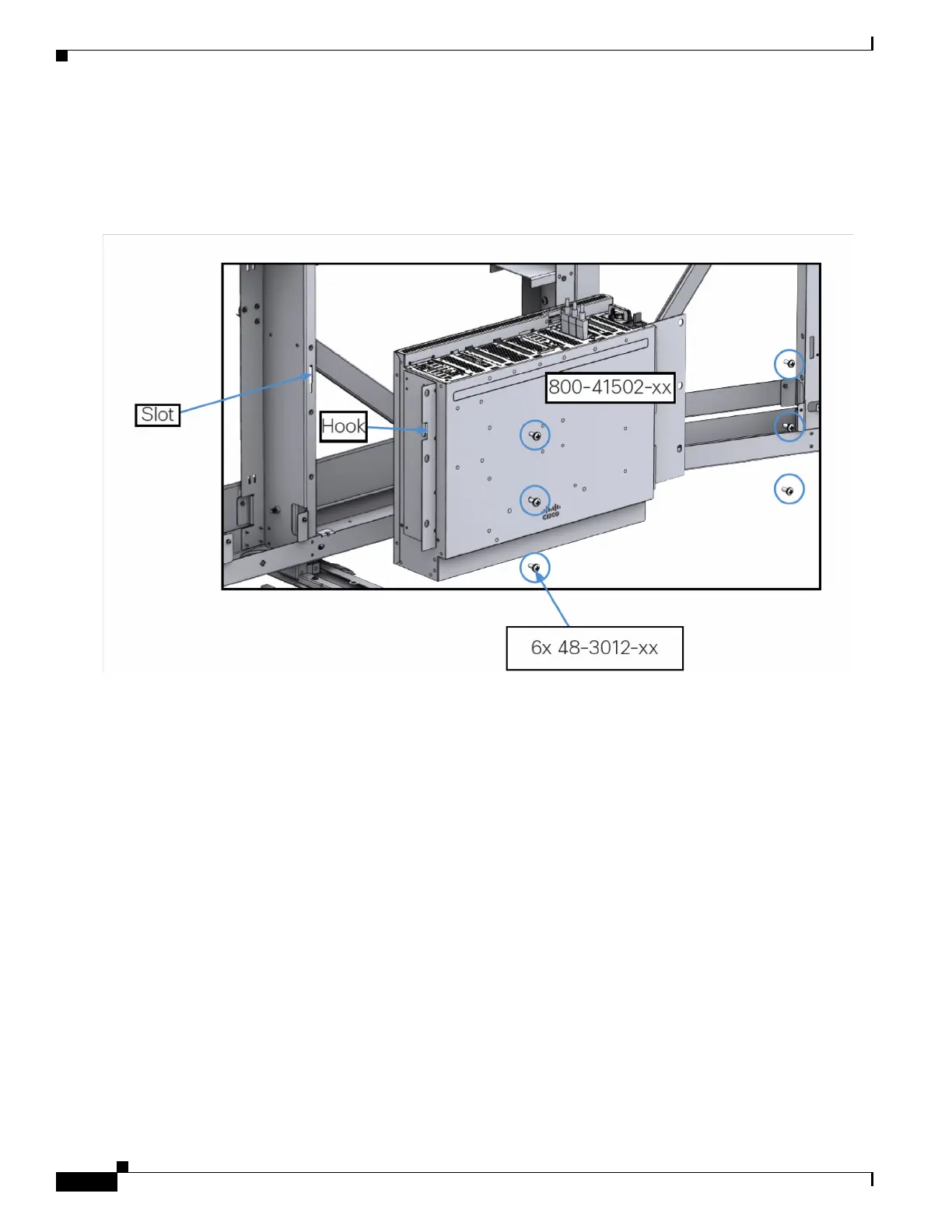

Figure 3 Removing the Host CPU Codec from the Frame
