Cisco TelePresence IX5000

39
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Codec—Part Number CTS-5K-ENCODER= or CTS-5K-HOSTCPU=

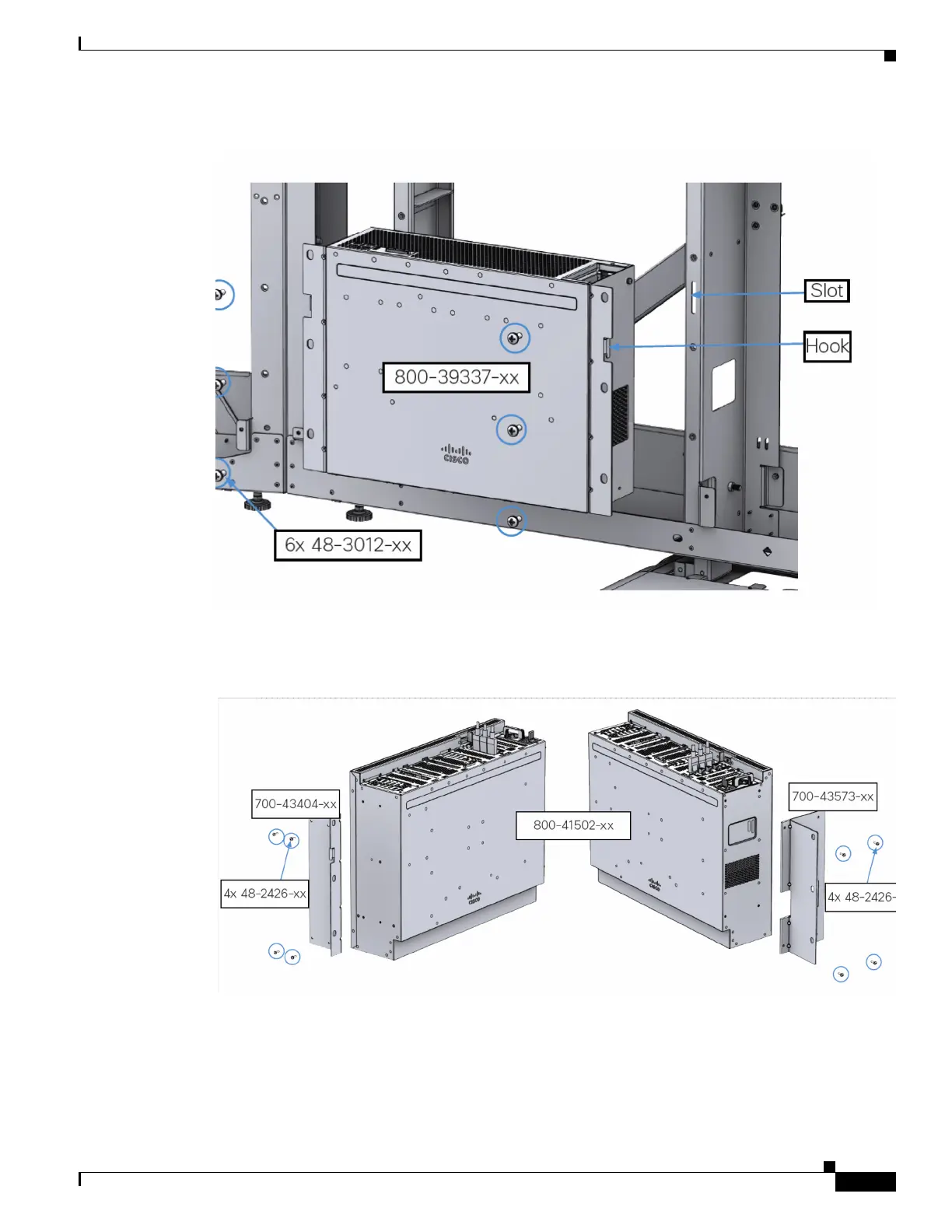

Figure 4 Removing the Encoder/Decoder Codec from the Frame
Step 5
Remove the bracket from the codec using a #2 Phillips driver.
Figure 5 Removing the Brackets from the Host CPU Codec
