Cisco TelePresence IX5000 and IX5200 First-Time Setup
OL-27038-01
Performing First-Time Setup

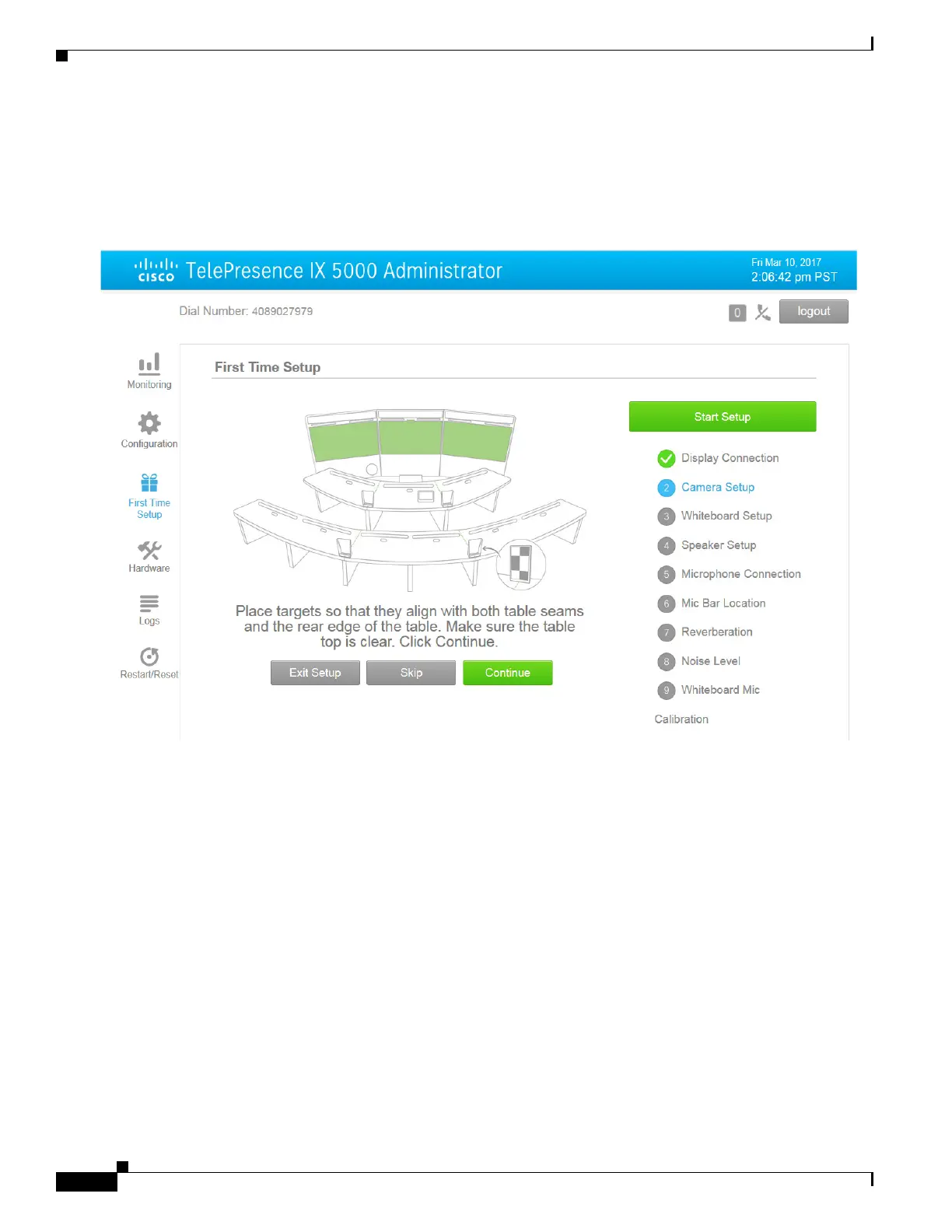

– If you select 4 targets, place the camera targets on the front and rear tables in the locations
shown below.
The line on the back of the target should be flush with the seams between the center and side
tabletops. Be sure that the tabletop is clear, especially the rear edge, then click Continue to begin
the test.
e. If the test fails, make sure that the targets are placed correctly, and that the table edges are free of
any obstructions, and rerun first-time setup from the beginning.
If the IX system is installed with a Walnut table and the camera alignment continues to fail, there
may be a contrast conflict between the table edge and table pattern. To complete the camera
alignment in this case, perform the following steps:
– Place a black strip of semi-adhesive tape along the entire table edge as shown in the figure.
