Cisco Telepresence MX200 Installing Guide

78-20007-03 MX200 Table Stand Installation Sheet | 2012 JANUARY | © 2011-2012 Cisco Systems, Inc. All rights reserved.
Installing Cisco TelePresence MX200 - Table Stand
2

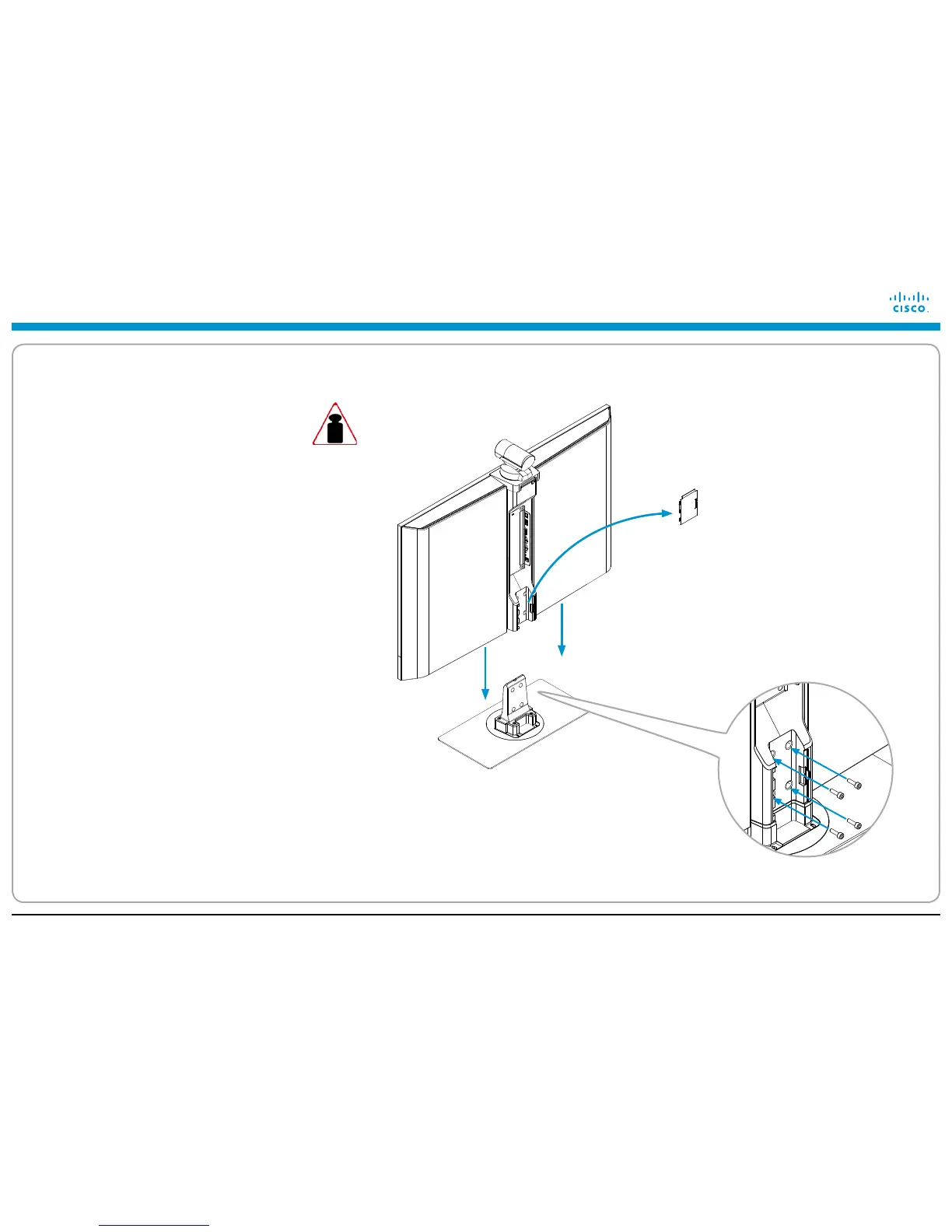

Mounting the LCD video unit to the table stand
27 kg / 60 lb
Note: Always use the provided gloves when handling
the LCD video unit to avoid stains on the unit’s surface.
i Lift the LCD video unit and slide it onto the top of
the table stand. Two people working together are
required for this operation.
ii Remove the cable channel lid (see illustration to
the right) to get access to the holes for the screws.
iii Fasten the LCD video unit to the table stand using
the four screws (tool: Hexagonal screwdriver).
Cable channel lid
(for strain relief)
Table stand
LCD video unit

Cisco Telepresence MX200 Specifications

General

Resolution	1080p (Full HD)
Audio	Integrated microphone array and speakers
Network	Gigabit Ethernet
Connectivity	HDMI, USB
Video Standards	H.264
Codec	Cisco
