Cisco TelePresence SX10 Installation Guide

H
D
130 - 145 cm
4 ft 3 in.- 4 ft 9 in.

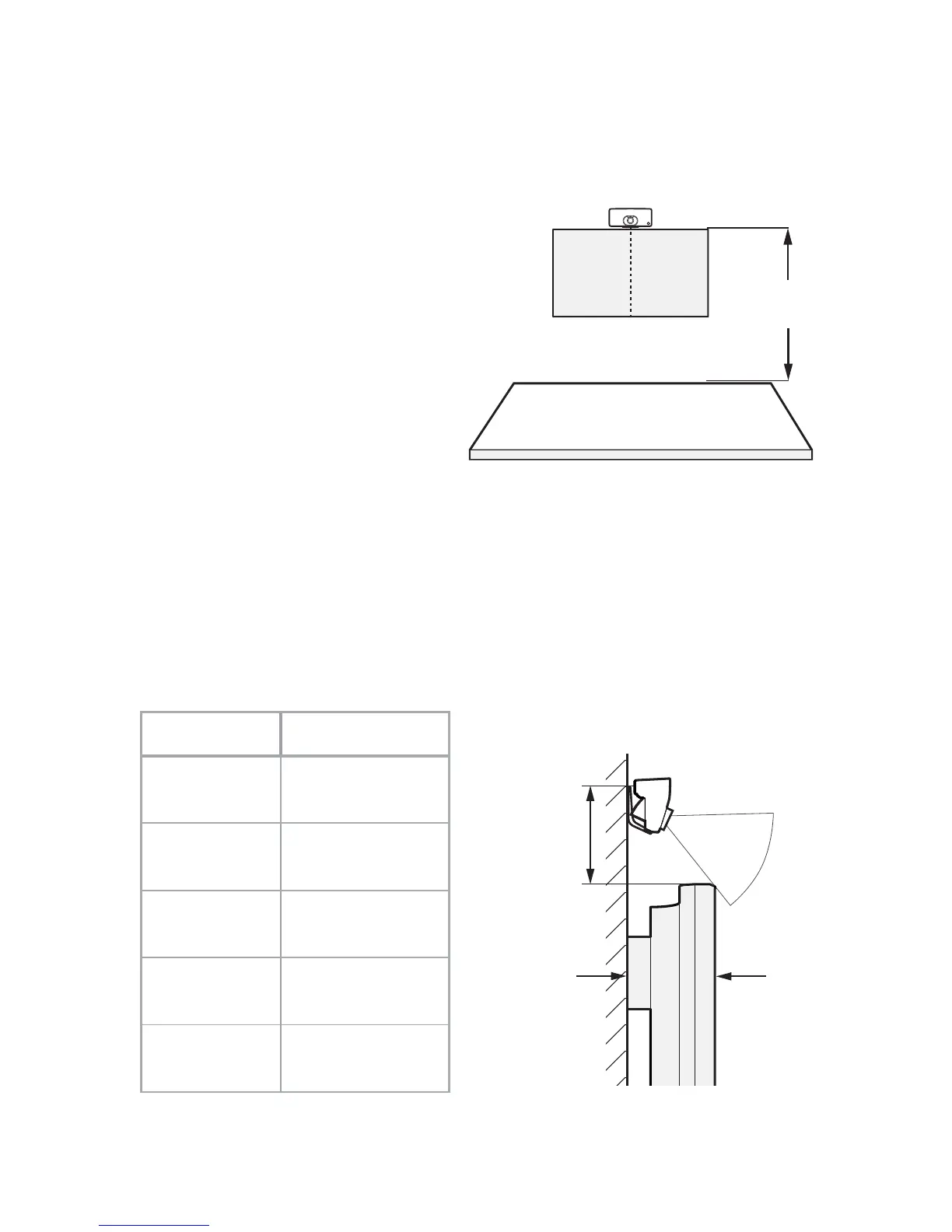

1. Before mounting the SX10
Mount the screen
For the best conferencing experience,
mount the screen at 130-145 cm
(4 ft 3 in.- 4 ft 9 in.) height.
For pre-installed and larger screens,
placing the SX10 under the screen
may work better. Connect the cables,
and set the device on a table or a shelf
under the screen to check the image
before wall mounting the SX10.
Display depth D Wall mount height H
<100 mm
<3.94 in.
110 mm
4.33 in.
100 - 130 mm
3.94 - 5.12 in.
130 mm
5.12 i n.
130 - 150 mm
5.12 - 5.91 in.
150 mm
5.91 in.
150 - 170 mm
5.91 - 6.69 in.
170 mm
6.69 in.
170 - 190 mm
6.69 - 7.48 in.
185 mm
7. 4 8 i n .
Measure screen depth to determine the SX10 installation height
The thicker the screen, the further up from the screen you should install the SX10.
This is to ensure that the screen doesn’t block the camera view.
For more on room guidelines and recommendations for other scenarios visit:
collaborationhelp.cisco.com and www.cisco.com/go/projectworkplace

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
