Cisco TelePresence SX10 Installation Guide

1. Connect the SX10 to your screen with the provided HDMI cable.
2. Connect the LAN cable from the SX10 to an Ethernet wall plug. If Power over
Ethernet (PoE) is available, the SX10 is powered through this cable. Alternatively
you can use a PoE injector.
3. If your network doesn’t support PoE, use the provided power adapter.
Connect additional cables for presenting, and external microphone and speakers to
their respective connectors, if needed.
Power over Ethernet (PoE)
The PoE source (network switch or PoE injector) must be located in the same building
as the SX10 device. The maximum cable length when connecting the SX10 to a PoE
source is 50 m / 164 ft.
NOTE: Do not connect an external device to the USB port.
1
2
Monitor output,
HDMI
Ethernet/PoE
Power
3

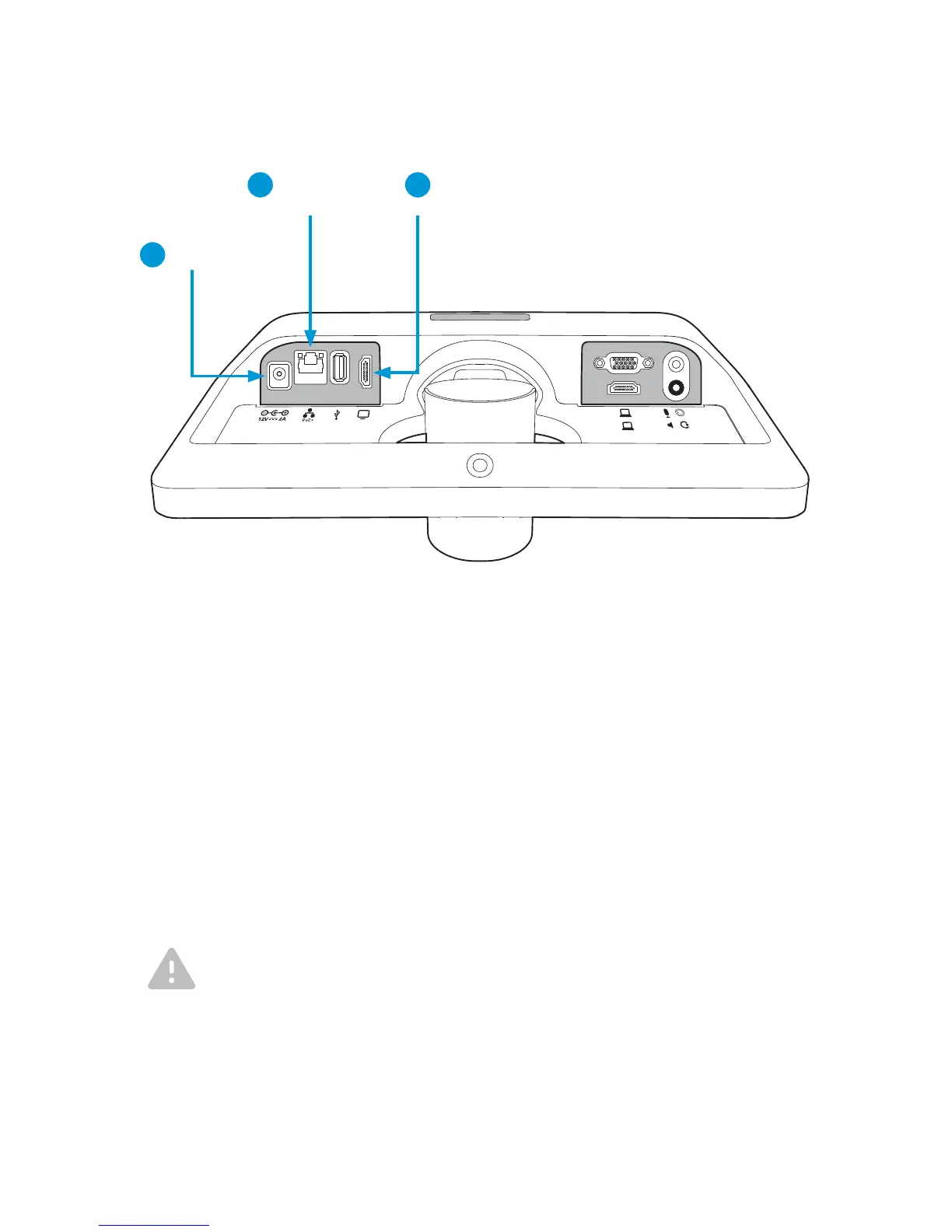

3. Connect the cables

Cisco TelePresence SX10 Specifications

General

Digital zoom	2 x
Optical zoom	2.65 x
Supported video modes	1080p, 720p
Video formats supported	H.263, H.264, MPEG4
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 1024 x 576 (WSVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Voice codecs	G.711, G.711a, G.722, G.722.1, G.729, G.729A
Ethernet LAN (RJ-45) ports	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	12 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	91 mm
Width	275 mm
Height	117 mm
Weight	900 g
