Cisco UCS B200 M3 Installation Manual

Procedure
Step 1

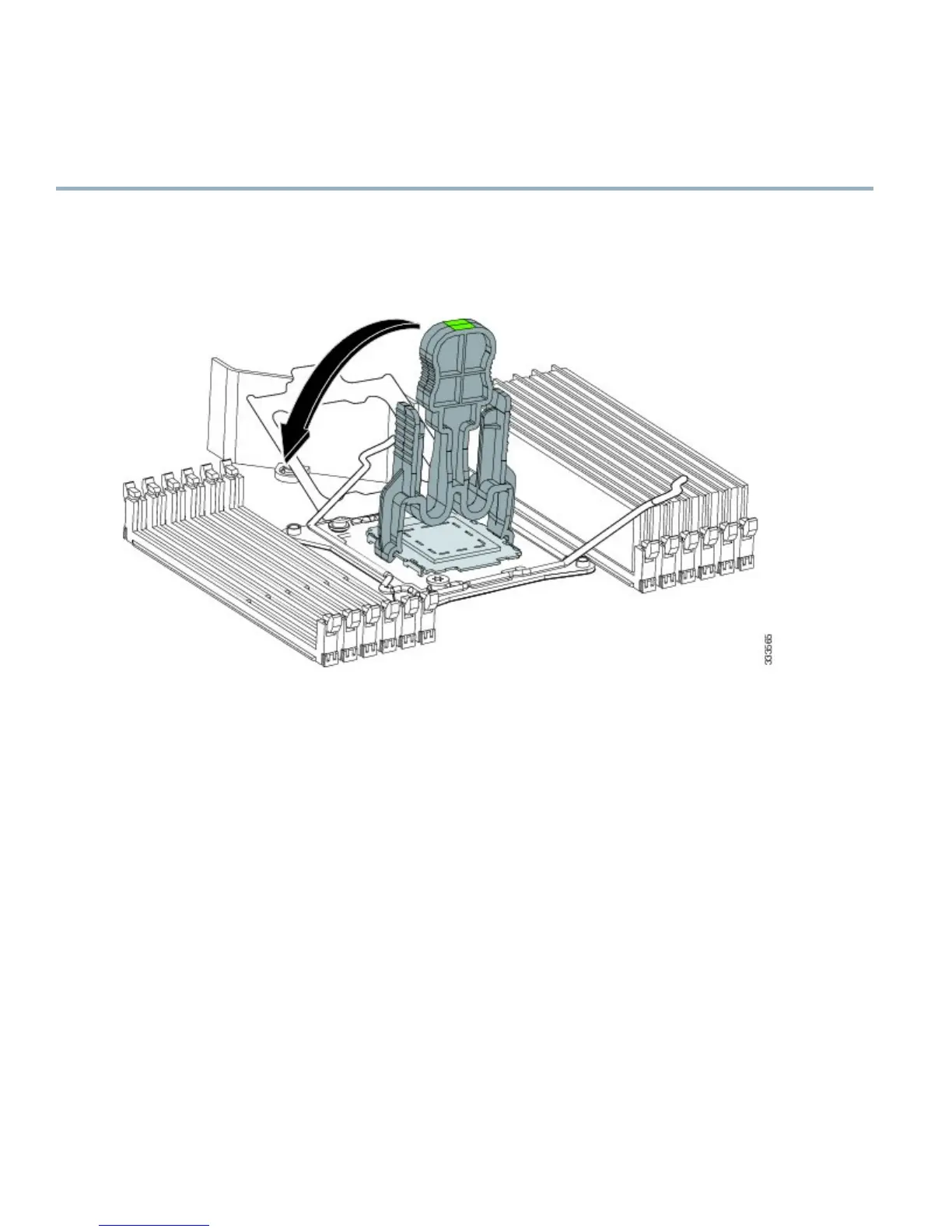

(Optional) If you are installing a CPU in a socket that had been shipped empty, there will be a protective cap intended to
prevent bent or touched contact pins. The pick and pull cap tool provided can be used in a manner similar to a pair of
tweezers. Grasp the protective cap and pivot as shown.
Figure 13: Protective Cap Removal
Step 2
Release the catch on the pick and place tool by pressing the handle/button.
Step 3
Remove the new CPU from the packaging, and load it into the pick and place tool as follows:
a) Confirm that the pedestal is set up correctly for your processor. The pedestal ships configured with the markings
“LGA2011-R0” facing upward, and this is the correct orientation.
b) Place the CPU on the pedestal. The CPU corners should fit snugly at the pedestal corners and the notches should meet
the pegs perfectly.
c) Place the CPU pick and place tool on the CPU pedestal aligned with the A1 arrow pointing to the A1 registration mark
on the pedestal.
d) Press the button/handle on the tool to grasp the CPU.
18

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
