Cisco UCS C22 M3

Cisco UCS C22 M3 High-Density SFF Rack-Mount Server
SUPPLEMENTAL MATERIAL
45

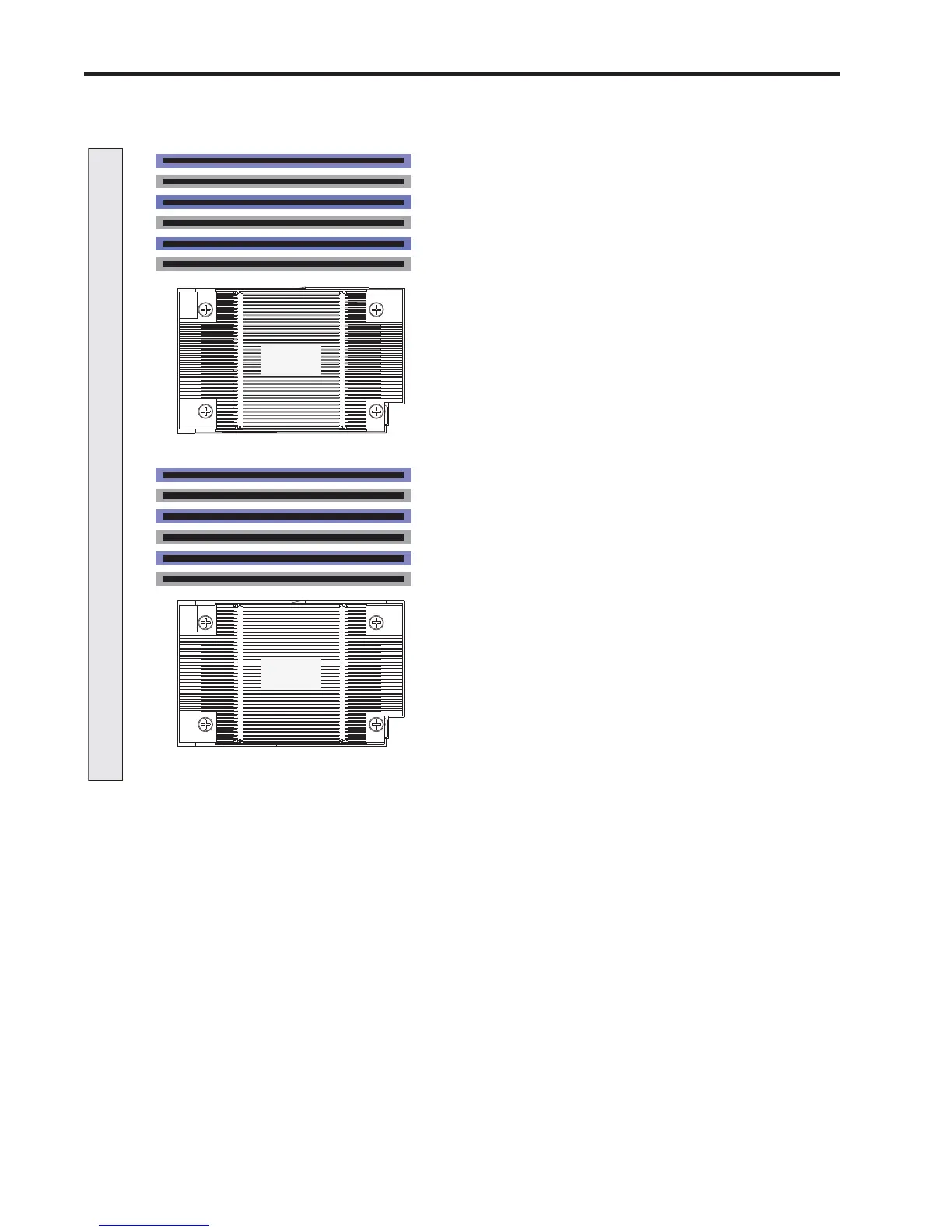

Figure 7 Physical Layout of CPU DIMM Channels and Banks
285209
A0
A1
B0
B1
C0
C1
D0
D1
E0
E1
F0
F1
Front of Server
CPU1
CPU2
