Cisco WAP321 Manual

Reboot Access Point
There are two ways to reset the Access Point:
• Hardware reset
• Reset with the use of the web configuration utility
Reboot Access Point by Hardware
Step 1. Press the power button to turn off the device. After 10 seconds have passed,
press the power button a second time to power the device back on.
The Access Point reboots and is refreshed.
Reboot Access Point by Web Configuration Utility

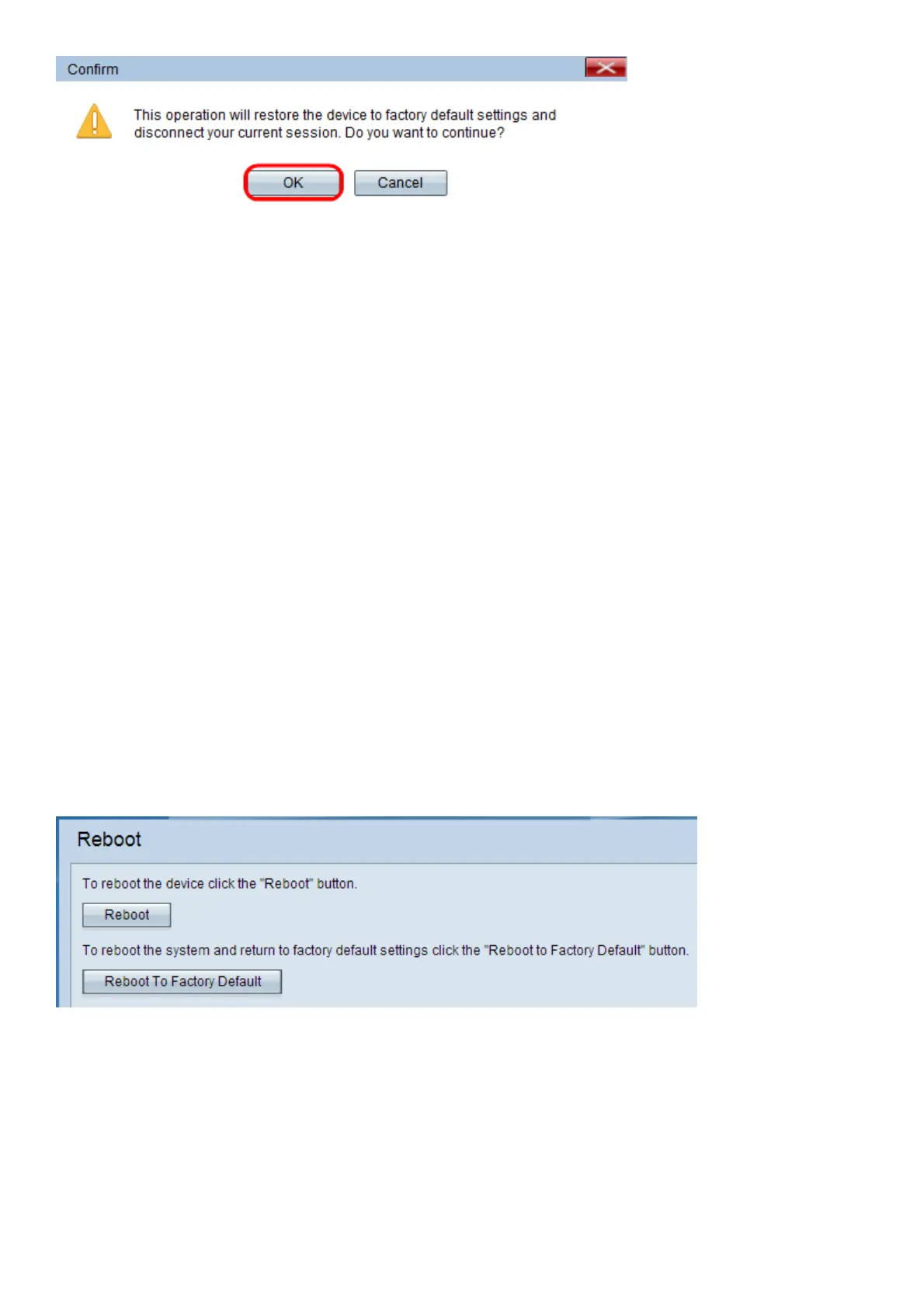

Step 1. Log in to the web configuration utility and choose Administration > Reboot.
The Reboot page opens:
Step 2. Click Reboot to reboot the device.

Cisco WAP321 Specifications

General

Modulation	OFDM
Frequency band	2.4 - 5 GHz
Number of users	32 user(s)
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
Certification	FCC class B, CE, IC, Wi-Fi
LED indicators	Power, WAN, WLAN
Supported network protocols	IEEE802.11b/g/n/i/e, 802.3, 802.3u, 802.1X, IPv4, IPv6, HTTP/HTTPS, SNMP
WAN connection	Wi-Fi
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA2, WPS
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	275 g
Dimensions (WxDxH)	169.08 x 169.42 x 35 mm
