2 www.cistermiser.co.uk
FIT IN ACCORDANCE WITH WATER REGULATIONS
Under the water regulations, urinals should use no more than 7.5 litres
per bowl per hour (10 litres for a single bowl)

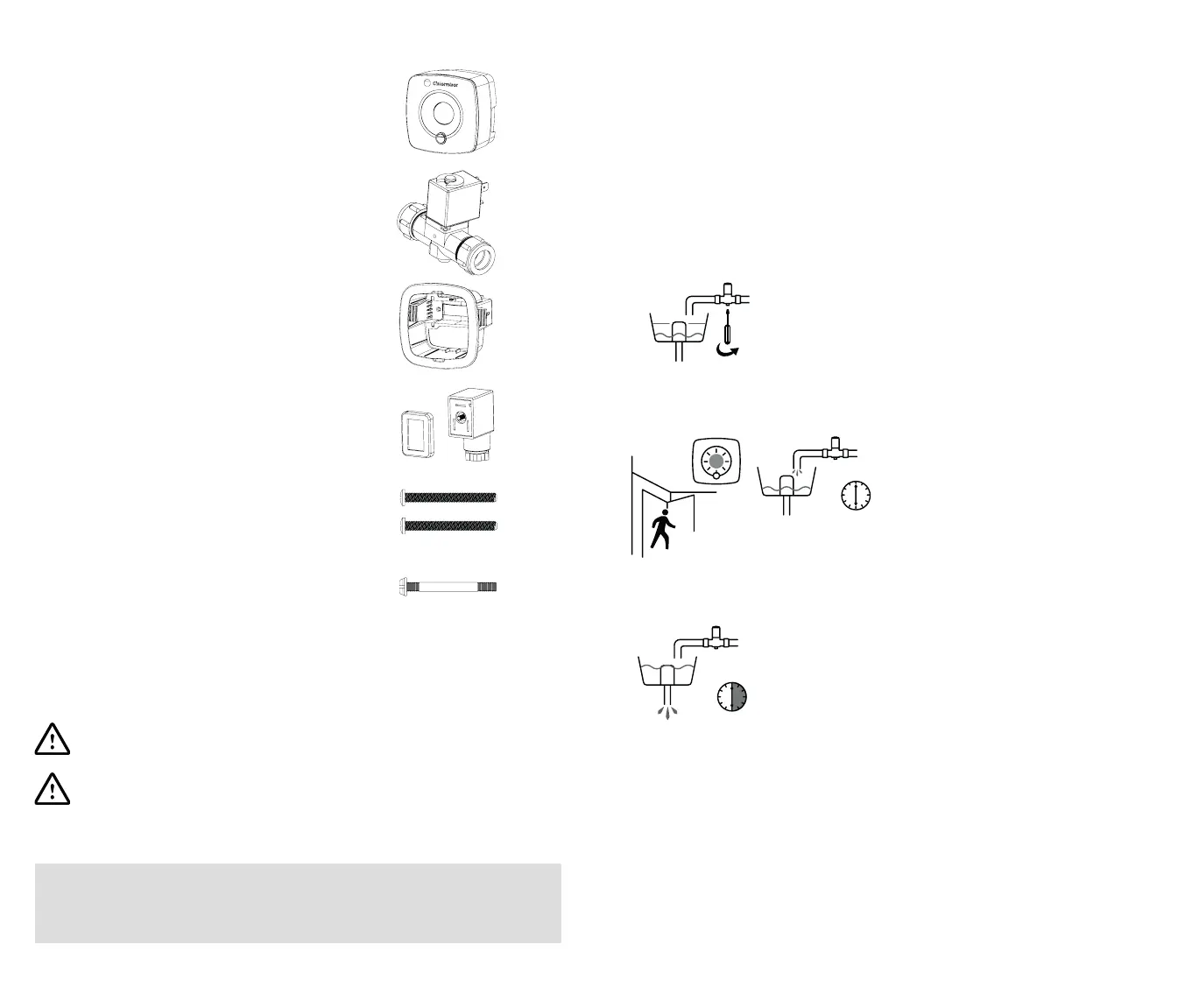

Supplied Parts
1. Sensor Unit
2. Solenoid Valve
3. Mounting Bracket
(for cavity walls or ceiling tiles)
4. Remote Valve Plug & Gasket
5. Mounting Screws M3.5 x 40mm (x2)
6. Solenoid Mounting Screw M3 x 30mm
1
3
2
5
6
4
Not Supplied
2 core low voltage cable for remotely installed applications
Do not power unit until installation is complete and wiring carried
out to BS7671 IEE regulations.
Isolate water supply before powering up.
www.cistermiser.co.uk 3
1. Introduction
The infrared urinal flush control (IRC) valve automatically manages the
supply of water to a urinal cistern.
The IRC is only to be used in conjunction with a cistern and is suitable for
fixing to solid or cavity walls and false ceilings, or directly onto pipework.
The IRC sensor unit can be installed separately from the solenoid valve.
On detection of movement in the washroom, the IRC activates a 30 minute
cycle allowing water to flow into the cistern.
During the last five minutes of the 30 minute cycle the sensor ‘looks’ for
movement. If no movement is detected during these five minutes the
valve will close. If the sensor detects movement a new 30 minute cycle is
activated. If no movement is detected for 12 hours the IRC will activate a
hygiene cycle.
Adjust valve to fill in 30 min
(See Page 11 Section 6)
Cistern flushes when full
Occupancy detected -
valve opens for 30 min
After 25 min infrared sensor
looks again for occupancy
30 MIN
0 MIN
To Next Page
