Cistermiser IRC User Manual

4 www.cistermiser.co.uk

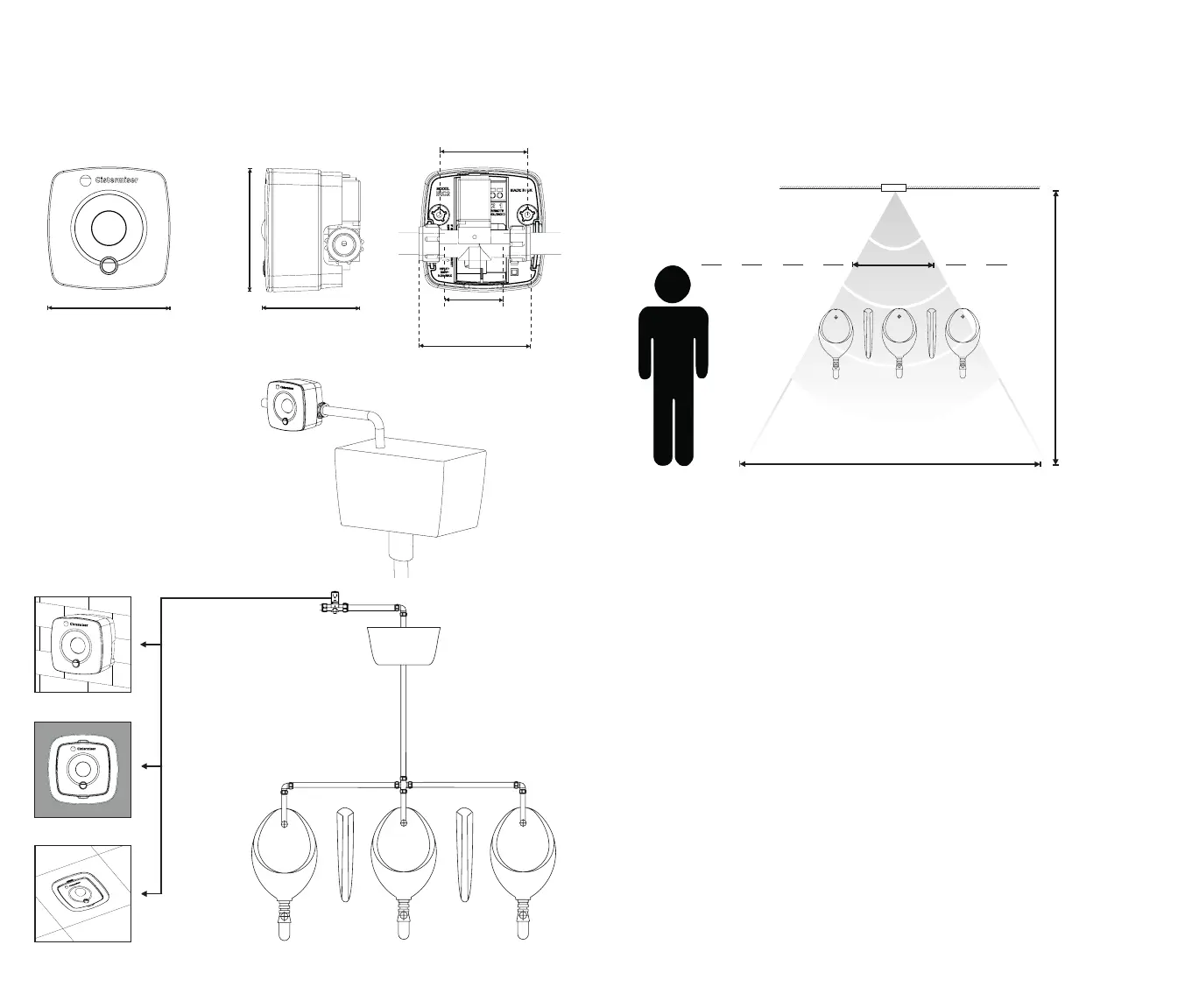

2. Positioning
Pipe Mounted
(Battery-powered only)
Cavity Wall
Solid Wall
Remote Mounted
(Mains and/or Battery-powered only)
Cable: 1mm² (max 10m)
Ceiling
Side viewFront view
68mm
76mm
Solenoid valve
85mm
85mm
40mm (min)
Pipe cut-out
60mm
Fixing centres
Back view
125 Degrees
Sensor range
Typical
Ceiling
Height 2.4m
Typical UK
Male Height
1.7 m
Maximum detection range 2.5m NOT TO SCALE
Floor level
Ceiling
9.2m
www.cistermiser.co.uk 5
2.7m
Sensor
