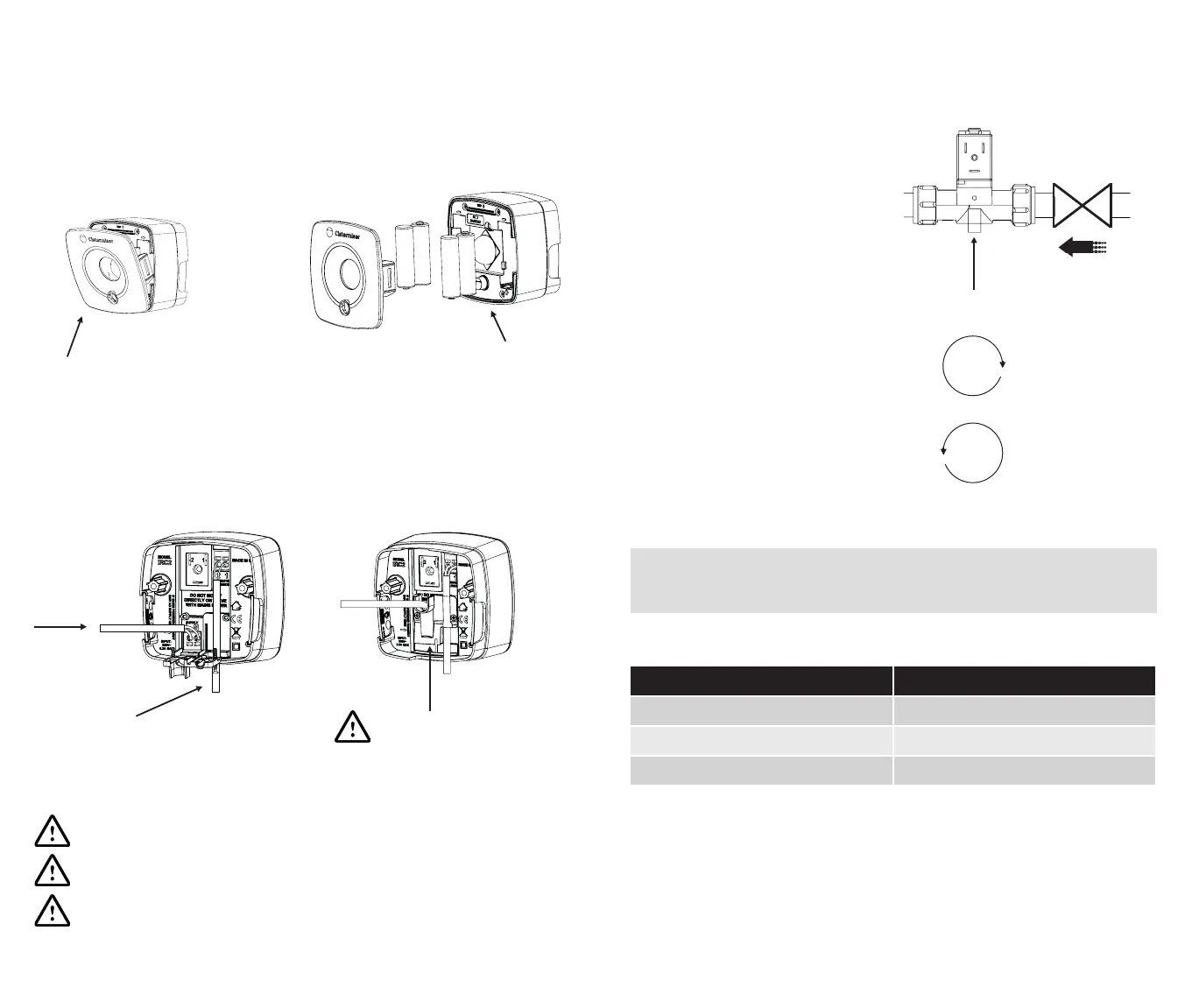

5. Power
Pipe mounted installations are Battery-powered only but Remote mounted
installations can be
Battery-powered and/or Mains-powered
Mains
Battery
230V to be installed by a qualified electrician on a 3 Amp fused spur
Do not mount a valve with Mains power directly onto pipework
When fitted directly onto pipework, only use Battery power
Secure cable clamp
after wiring
Insert
4 x AA
Batteries
Remove
front
cover
Solenoid cable specification:
CSA= 1mm²
Length 10m (max) from sensor
to solenoid
Mains cable specification:
Nominal 230V ± 10% AC 50Hz
10 www.cistermiser.co.uk
To solenoid
230V
Mains
www.cistermiser.co.uk 11
Once all is installed, the flow rate
will need to be adjusted to suit the
particular installation.
Using the flow regulator on the
bottom of the solenoid, you can
either increase or decrease the flow
of water. Ideally the cistern should
flush once every 30 minutes.
Adjust the valve by turning the screw
at the base of the brass valve body;
clockwise to reduce the flow and
anticlockwise to increase the flow.
6. Commissioning
Cistern size Time to fill 100ml
4.5L 40 sec
9.0L 20 sec
13.5L 13.5 sec
NOTE: Use the table below to set your cistern to flush once every 30
minutes. Adjust the flow through the valve so it takes the time below to
fill a measuring cup to 100ml.
Clockwise:
reduces the
flow rate
Anti-clockwise:
increases the
flow rate
Flow regulator
