4
Overview

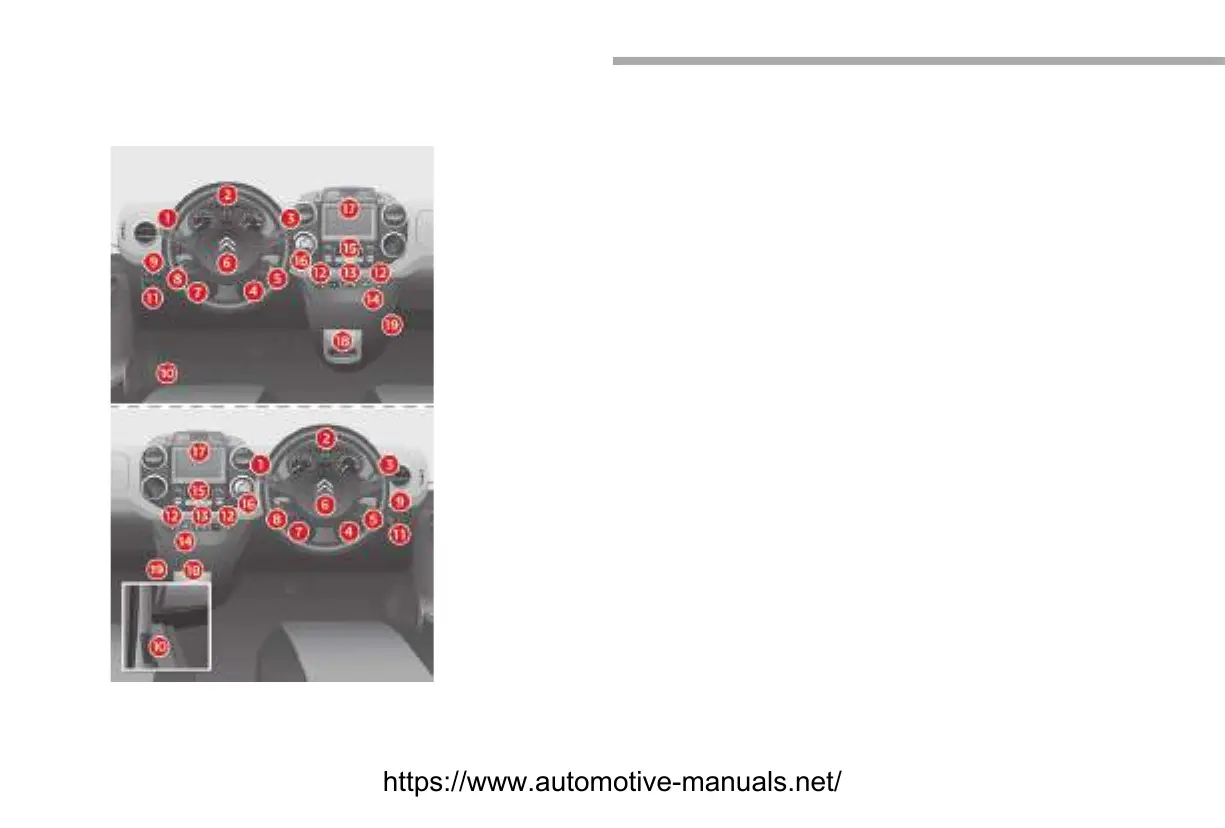

Instruments and controls
1. Lighting and direction indicator control
stalk.
2. Instrument panel with display.
3. Wiper/screenwash/trip computer control
stalk.
4. Ignition.
5. Audio system controls.
6. Driver's front airbag/horn.
7. Steering wheel height and reach
adjustment.
8. Cruise control/speed limiter controls.
9. Control plate: parking assist, headlamp
beam adjustment, ESC, Stop & Start,
alarm (depending on country of sale).
10. Bonnet release.
11.
Electric door mirror adjustment controls.
12. Front window controls.
13. Switch panel: hazard warning lamps,
central locking, child lock (depending
on version).
14. Cigarette lighter.
15. Heating/ventilation controls.
16.
Electronic gearbox or Grip control control.
17. Touch screen tablet.
18. USB port (with electronic gearbox).
19. USB port (with manual gearbox).
