AXLES
SUSPENSION
STEERING

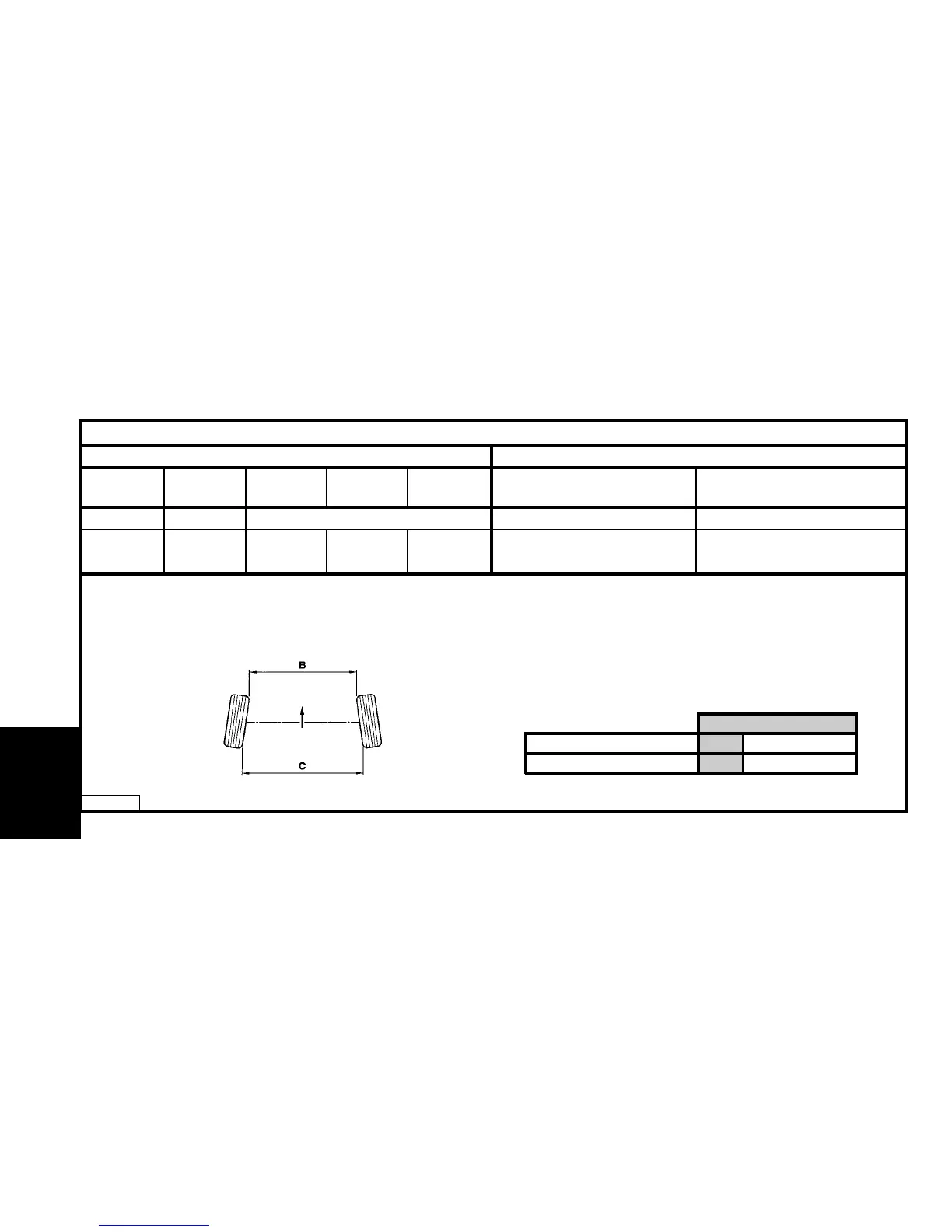

AXLE GEOMETRY
Front axle Rear axle
A > B = Negative figure : – = TOE-OUT
A < B = Positive figure : + = TOE-IN
NOTE
Vehicle
All types
Tracking
(Adjustable)
0 to - 3 mm
0° to - 0° 27'
3° 03' ± 30' 0° ± 30' 12° 56' ± 30'
5,4 ± 1,3 mm
0° 49’ ± 0° 12’
- 1° ± 20'
(Non adjustable) (Adjustable) (Non adjustable)
Castor Camber
King pin
inclination
Tracking Camber
