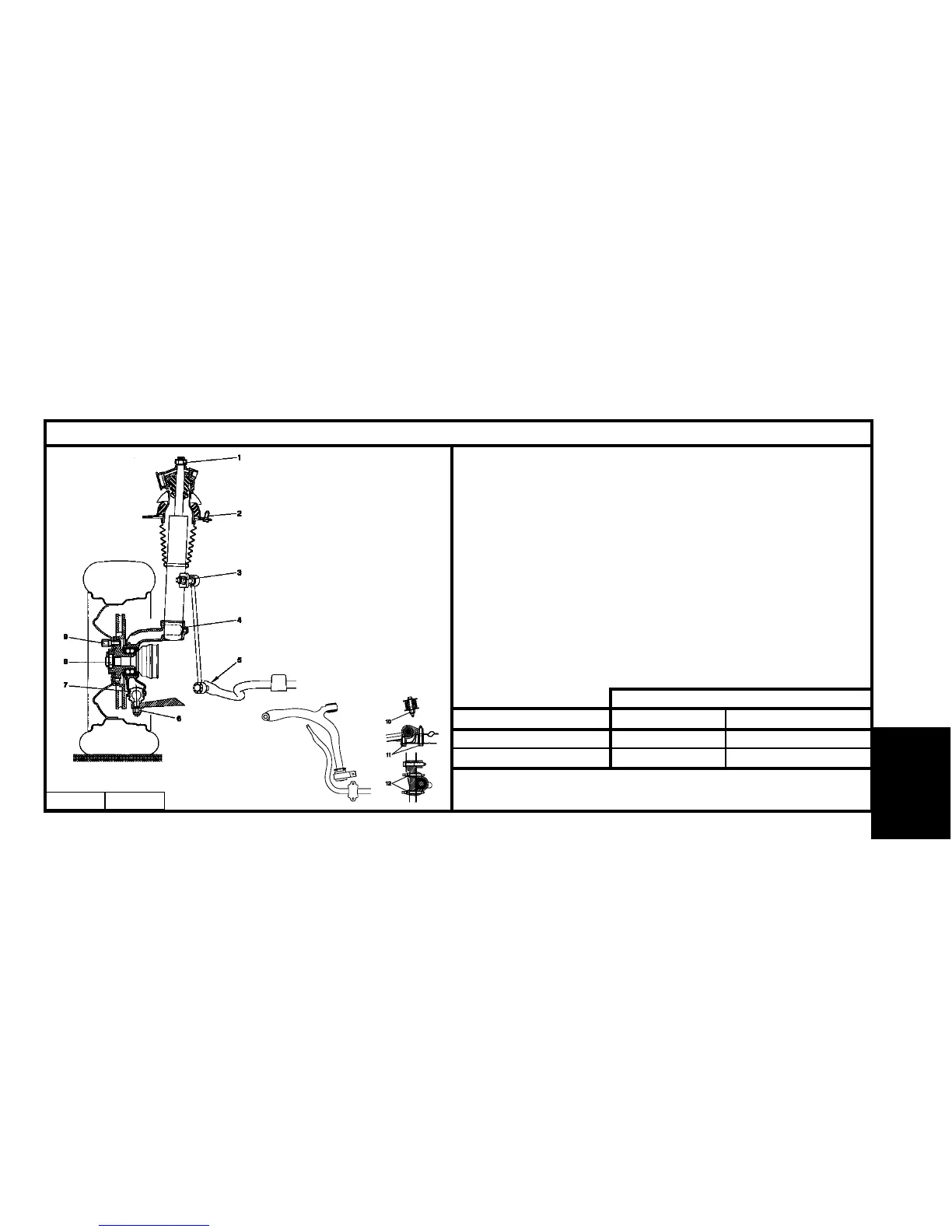

FRONT AXLE
Tightening torques m.daN.
(1) Suspension leg upper fixing 7 ± 0.7
(2) Suspension leg fixing on bodyshell 4.3 ± 0.6
(3) Anti-roll bar link rod upper fixing 6.4 ± 0.6
(4) Anti-roll bar link rod upper fixing 6.4 ± 0.6
(5) Ball-joint fixing 4.5 ± 0.4
(6) Ball-joint fixing on pivot 25 ± 2.5
(7) Suspension leg upper fixing on pivot 5.4 ± 0.5
(8) Hub nut 32.5± 2.6
(9) Wheel fixing 9 ± 1
(10) Arm front fixing 13 ± 1.3
(11) Arm rear fixing 8 ± 0.8
(12) Anti-roll bar bearing fixing on subframe 4.2 ± 0.6
Stabiliser bar fixing on subframe 6.6 ± 0.6
Anti-roll bar
Engines Diameter (mm) Colour ref.
All types (exc. ES9J4) 23.5 Yellow
ES9J4 24.5 White
NOTE : The geometry specifications are given with the suspension
specifications.
