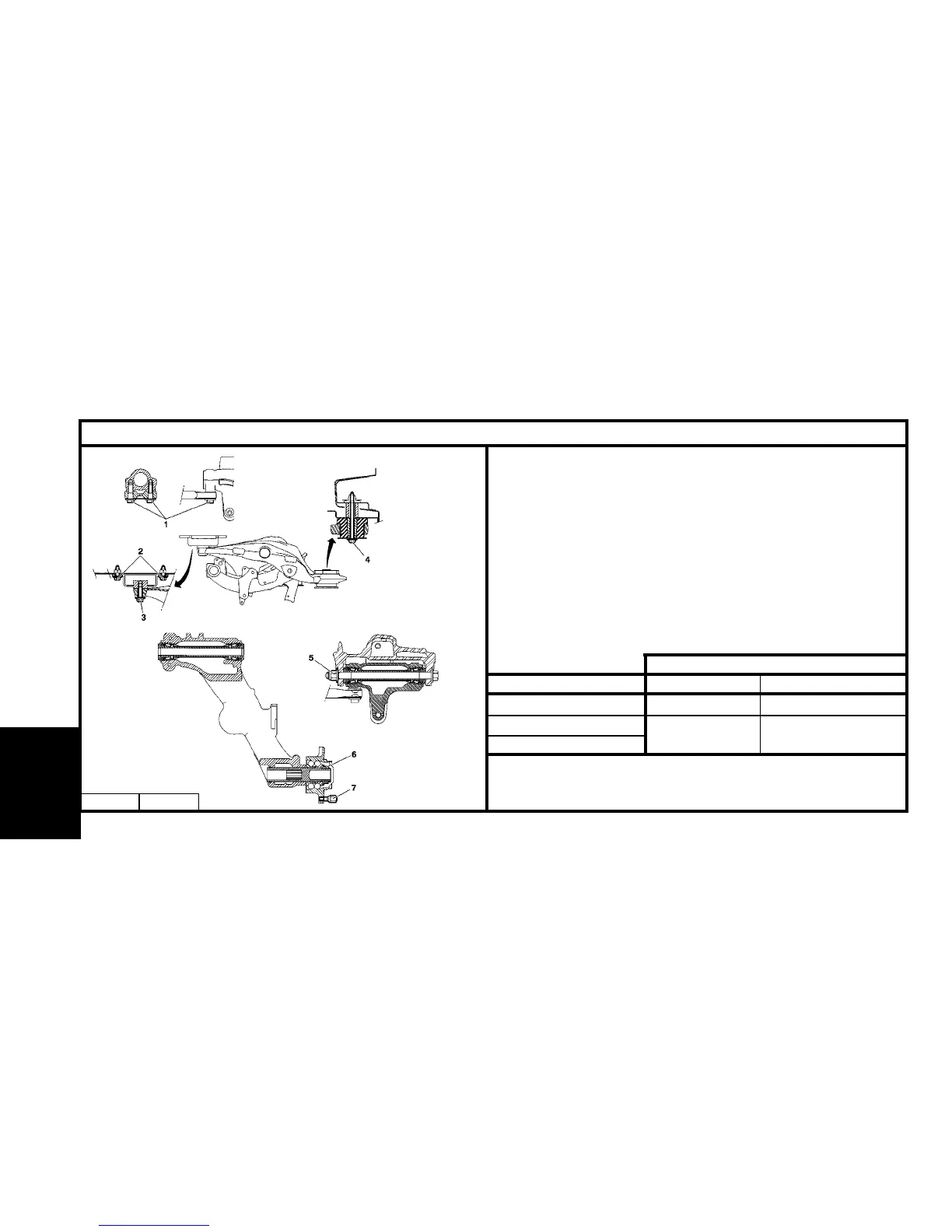

REAR AXLE
Tightening torques m.daN.
(1) Anti-roll bar fixing 13.1± 1.4
(2) Rear rubber mounting fixing on bodyshell 8 ± 1.2
(3) Rear subframe fixing 11.5 ± 1.1
(4) Front subframe fixing on bodyshell 11.5 ± 1.1
(5) Suspension shaft fixing 14.9 ± 1.3
(6) Hub nut 25 ± 2.5
(7) Wheel fixing 9 ± 1
NOTE : (3) and (4) Face and threads not greased.
Anti-roll bar
Engines Diameter (mm) Colour ref.
All Types (exc. ES9J4) 21.5 Blue
ES9J4
22 Yellow
All Types Estates
NOTE : The geometry specifications are given with the suspension
specifications.
