ENGINE
80

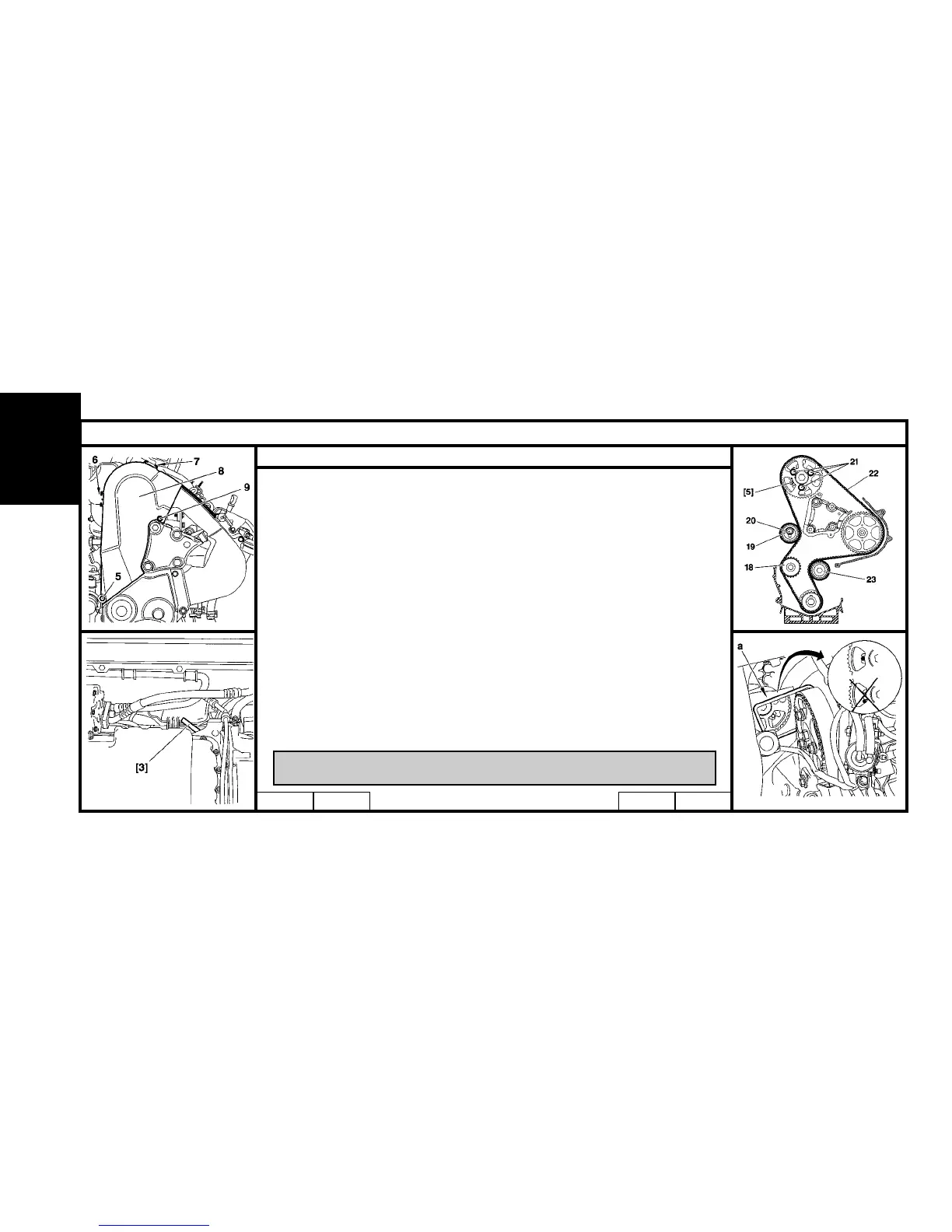

CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ
Tools
[1] Belt tension measuring instrument : 4122-T
[2] Tension lever : (-).188.J2
[3] Engine flywheel peg : (-).188.X
[4] Belt retaining pin : (-).0188.K
[5] Camshaft pinion peg : (-).0188.M
[6] Engine flywheel lock : (-).0188.F
[7] Set of blocking plugs : (-).0188.T
[8] Crankshaft pulley extractor : (-).0188.P
Checking the setting of the valve timing.
Peg :
- The engine flywheel, using tool [3]. (From under the vehicle).
- The camshaft, using tool [5].
WARNING : On removing screws (6), (7), (9), and (5) of the timing cover, refit the
screw (5) equipped with a spacer (thickness : 17 mm).
Tighten to 1,5 ± 0,1m.daN.
(The screw (5) is one of the screws fixing and sealing the water pump).
WARNING : Should it be impossible to peg the camshaft, check that the offset
between the camshaft pinion hole and the pegging hole is not more than 1 mm,
with the help of a mirror «a» and a Ø 7 mm screw.
B1BP282C
B1BP1YSCB1EP152D
B1EP14AC
IMPERATIVE : If pegging is impossible, restart the adjusting.
(See corresponding operation).
