English Micro-Touch® Stabilizer LP (Single-Sided Table Mount)
2
SETTING UP MICRO-TOUCH
®
STABILIZER LP (SINGLE-SIDED TABLE MOUNT)

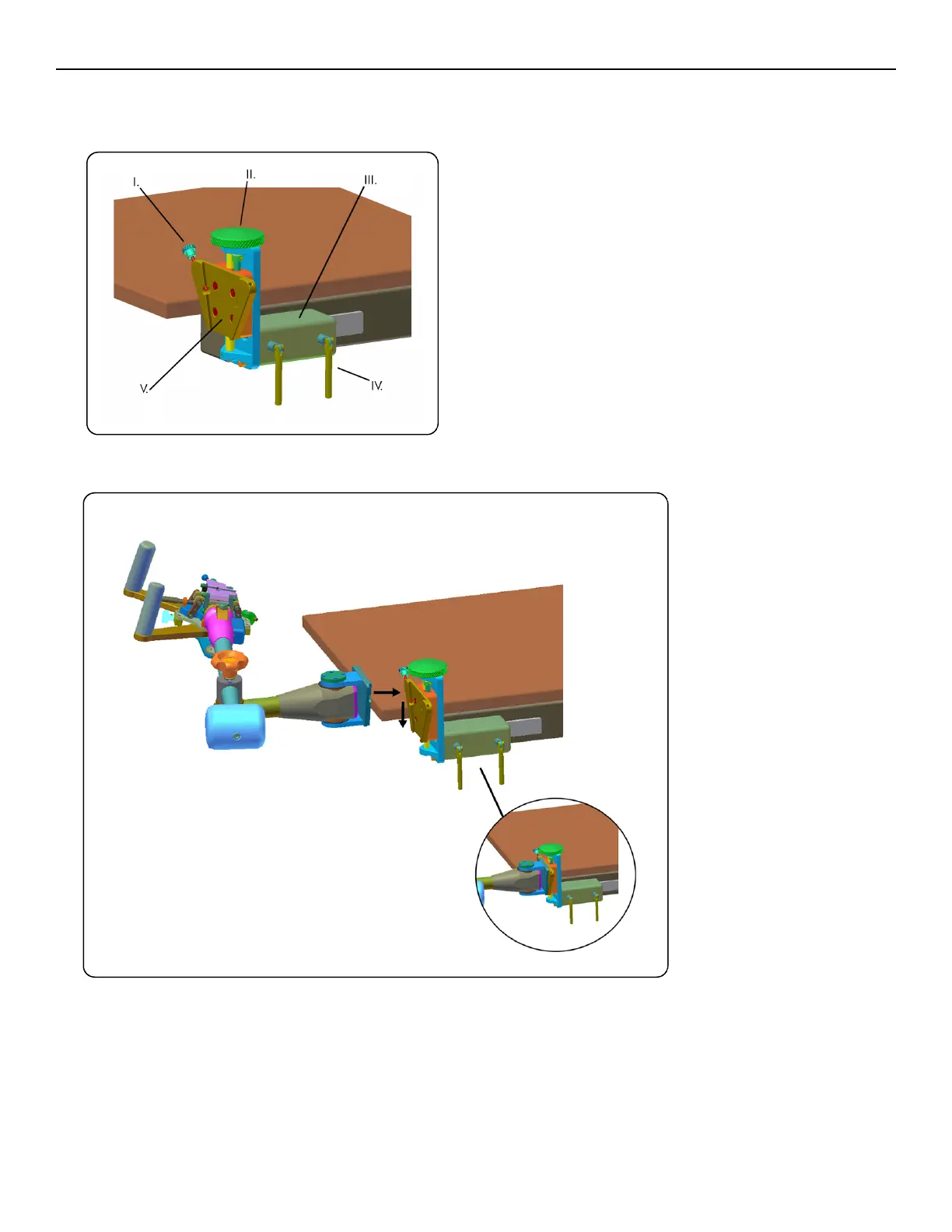

1. Loosen rail clamp levers on table mount before removing from transportation stand. Slide table mount onto table rail and tighten rail clamp levers to
secure. Center the Y adjustment.
I. Stabilizer quick connect knob
II. Knob Y
III. Rail clamp
IV. Rail clamp levers
V. Stabilizer mounting plate
2. Remove stabilizer from transportation stand. Fit dovetailed mounting plate to mating stabilizer mounting plate on table mount. Secure with stabilizer
quick connect knob.
