CKD GX8275D User Manual

9
Main line unit

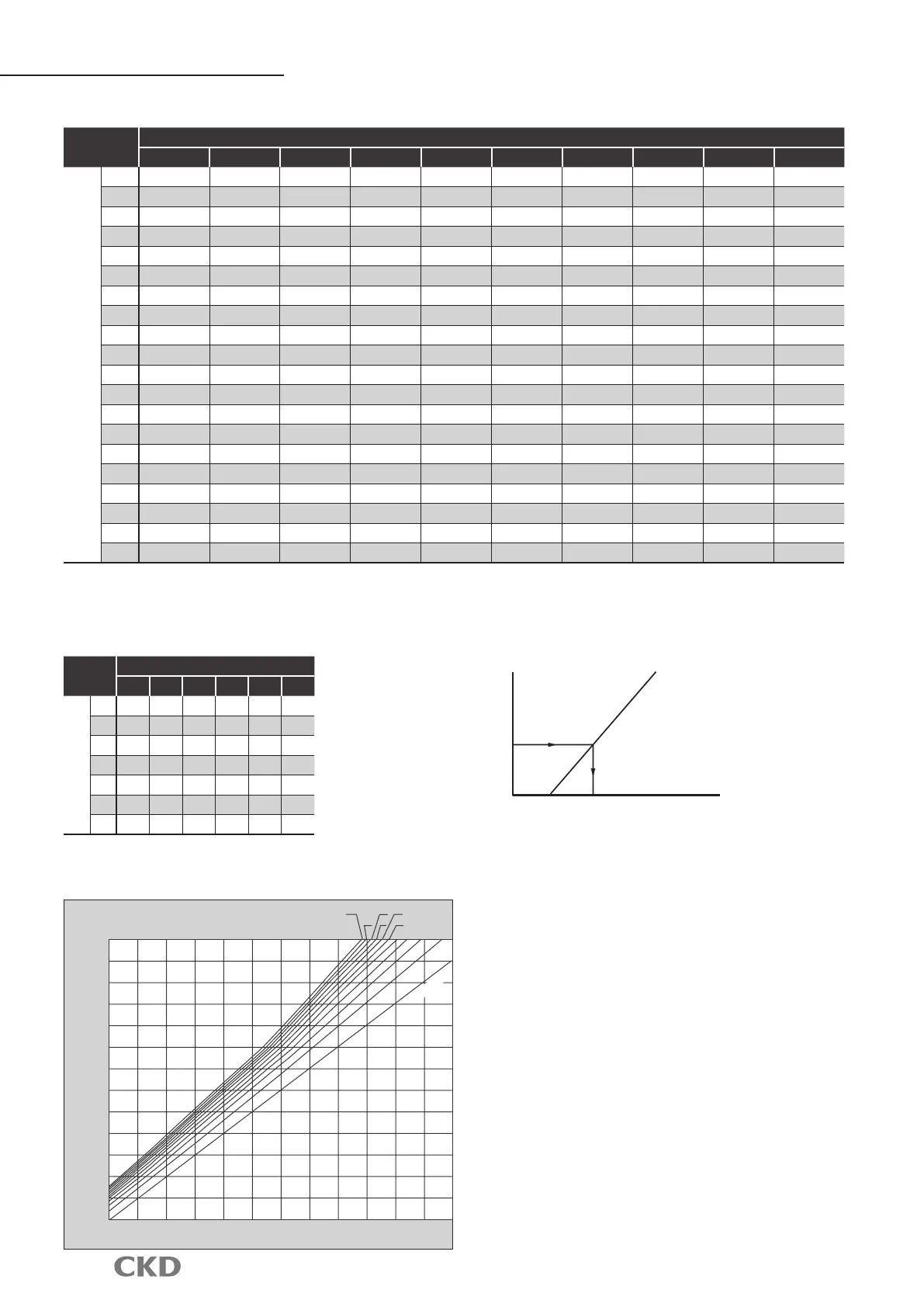

Saturated vapor rate table (relative humidity 100%)
Temperature at 1
°C
unit
0 1 2 3 4 5 6 7 8 9
Temperature at 10°C
unit
90
418 433 449 465 481 498 515 532 551 569
80
291 302 313 325 337 350 363 376 390 404
70
197 205 213 222 231 240 250 259 270 280
60
130 135 141 147 154 160 167 174 182 189
50
82.8 86.7 90.8 95.0 95.5 104 109 114 119 124
40
51.1 53.7 56.4 59.3 62.2 65.3 68.5 71.9 75.4 79.0
30
30.3 32.0 33.7 35.6 37.6 39.6 41.7 43.9 46.2 48.6
20
17.2 18.3 19.4 20.6 21.8 23.0 24.4 25.8 27.2 28.7
10
9.39 10.0 10.7 11.3 12.1 12.8 13.6 14.5 15.4 16.3
0
4.85 5.19 5.56 5.94 6.36 6.79 7.26 7.75 8.27 8.81
-0
4.84 4.48 4.13 3.82 3.52 3.24 2.99 2.75 2.53 2.33
-10
2.14 1.96 1.80 1.65 1.51 1.39 1.27 1.16 1.06 0.967
-20
0.882 0.804 0.732 0.667 0.607 0.551 0.501 0.454 0.412 0.373
-30
0.338 0.305 0.276 0.249 0.225 0.203 0.183 0.164 0.148 0.133
-40
0.119 0.107 0.0955 0.0854 0.0763 0.0681 0.0608 0.0541 0.0482 0.0428
-50
0.0381 0.0338 0.0299 0.0265 0.0234 0.0207 0.0183 0.0161 0.0142 0.0125
-60
0.0109 0.00959 0.00840 0.00734 0.00642 0.00560 0.00488 0.00425 0.00369 0.00320
-70
0.00277 0.00240 0.00207 0.00179 0.00154 0.00133 0.00114 0.000977 0.000836 0.000715
-80
0.000610 0.000520 0.000442 0.000376 0.000318 0.000269 0.000228 0.000192 0.000162 0.000136
-90
0.000114 0.0000952 0.0000795 0.0000663 0.0000551 0.0000458 0.0000379 0.0000313 0.0000259 0.0000213
Reading saturated vapor rate table
The temperature in 10°C units is shown in the vertical column, and the
temperature in 1°C units is shown in the horizontal row. (E.g.) Find saturated
vapor rate for 32°C.
Reading pressure dew point - atmospheric dew point conversion table
This table is used to convert the pressure dew point at each pressure to the
atmospheric pressure dew point, or vice versa.
(E.g.) Find the atmospheric dew point where pressure is 0.7MPa and pressure
dew point 5°C.
Temperature at 1
°C
unit
0 1 2 3
Temperature at 10°C unit
40
30
33.7
20
33.7 g/m
3
can be selected from the above table.
Pressure dew point (°C)
Atmospheric dew point (°C)
When a pressure dew point
of 5°C at 0.7 MPa pressure is
converted to atmospheric
dew point, the result is -20°C.
Pressure dew point - atmospheric dew point conversion table
(Unit: g/m
3
)
5°C
-20°C
0.7MPa
1.0
0.9
0.8 0.6
0.7
0.5
0.4 0.3 0.2 0.1
0MPa
pressure dew point (°C)
Atmospheric dew point (°C)
40
20
0
-20
-40
-60
-80 -60 -40 -20 0 20 40
