N-V5927 (R-3/2010)

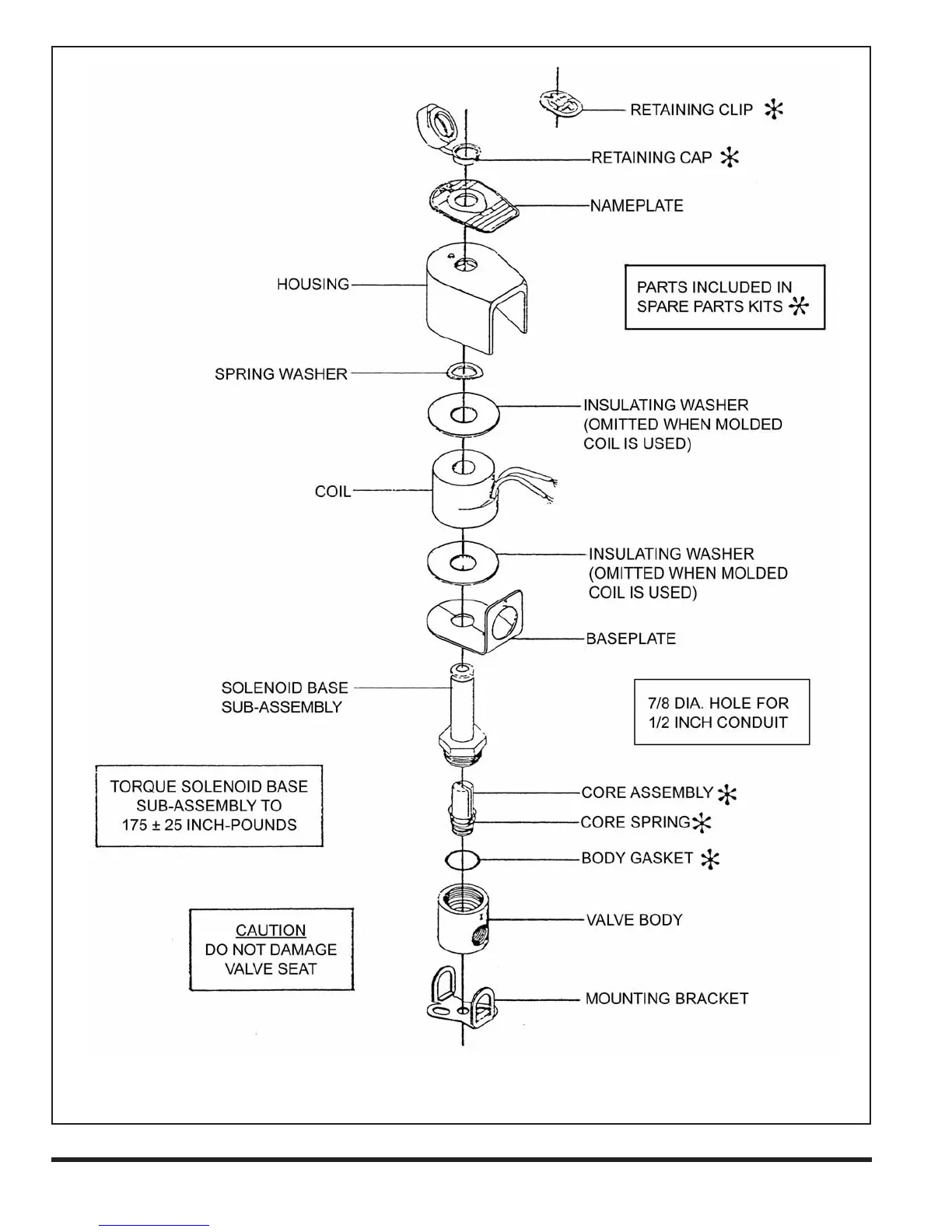

Figure 3
Bulletin 8262 (10.5 A-C, 11.2 D-C or 16.7 Watts A-C)
General Purpose Solenoid Enclosure Shown
For Explosion-Proof/Watertight Solenoid Enclosure, See Form No. V-5380
