Dimensions
Available only in replacement assembly.
PL-CDC-1 (R-6/2011)
NPT
5
3
4
2
1
I
Full Open Operation
NPT
5
3
4
2
1
I
Tight Closing Operation
B
C
A
NSF 61
Approved
Item Description Material
1 Body Brass
2
End
Connection
Brass
3 Disc Polytherimide
4 Seat NBR
5 Spring Stainless Steel
Size
(NPT)
Stock
Number
A B C I C
V
psi Wt.
3/8" 9834501A 1.73 0.79 1.06 0.40 4.55 400 0.37
1/2" 9834502J 2.32 0.98 1.35 0.53 6.00 400 0.32
• NSF 61 Approved
• Meets low lead requirements
• Soft Seat for Bubble Tight Shutoff, Spring Loaded for
Fast Seating Action
• Compact Design
• Low Cracking Pressure 1/2 psi
• Flow Profile Designed to Minimize Head Loss
• Perfect Seating both at High and Low Pressure, Wide
Temperature Range: +10
° to 210°F
•
Polyethermide Disc to ensure the Best Resistance for
Corrosion and Abrasion
•
Patented Disc Guide to Prevent Any Side Loading

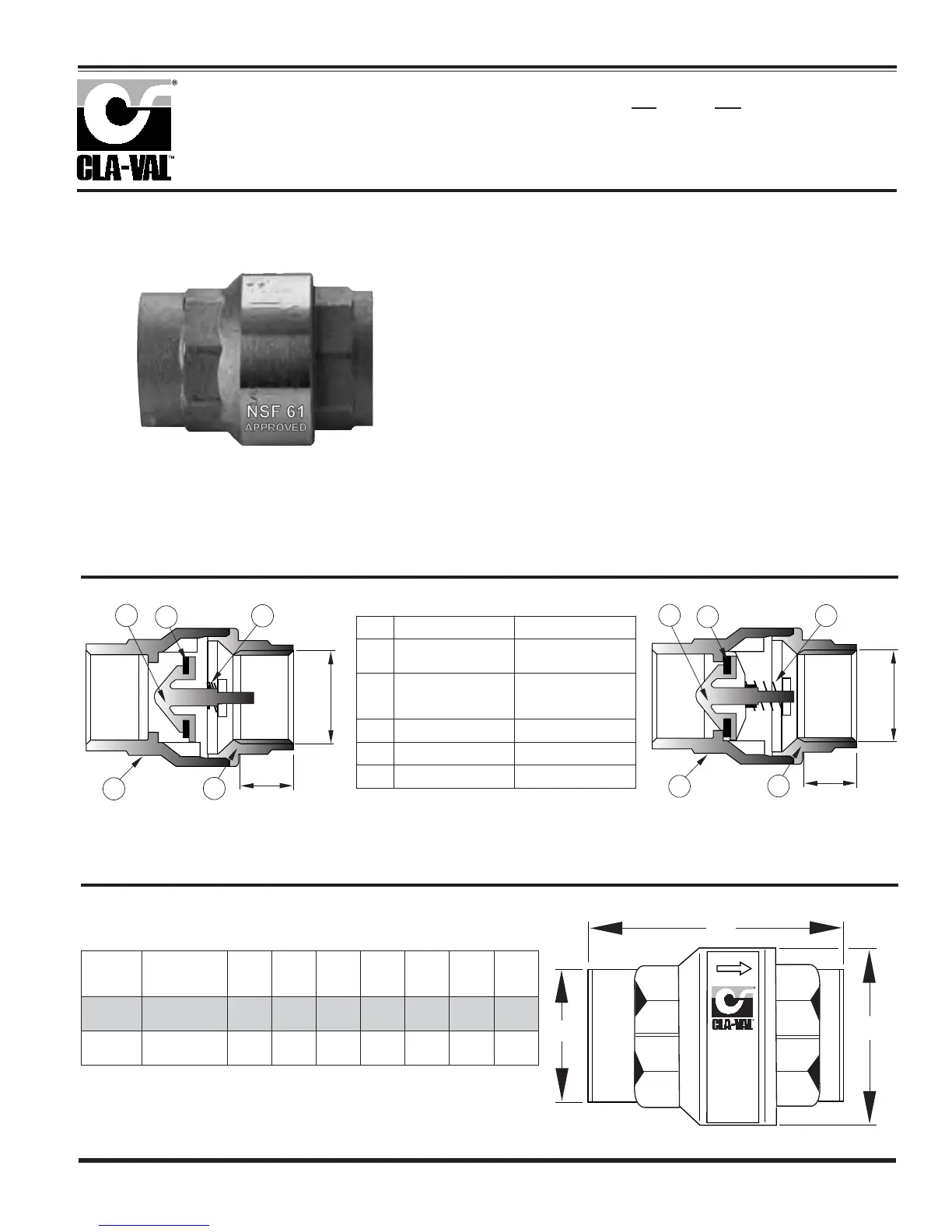

CDC-1
PARTS LIST
Check Valve (Sizes 3/8” and 1/2”)
MODEL
