Claas ARES 697 - Dashboard Panel Instruments and Indicators

Ares 507-607 – 04.2006 – GB
B.3

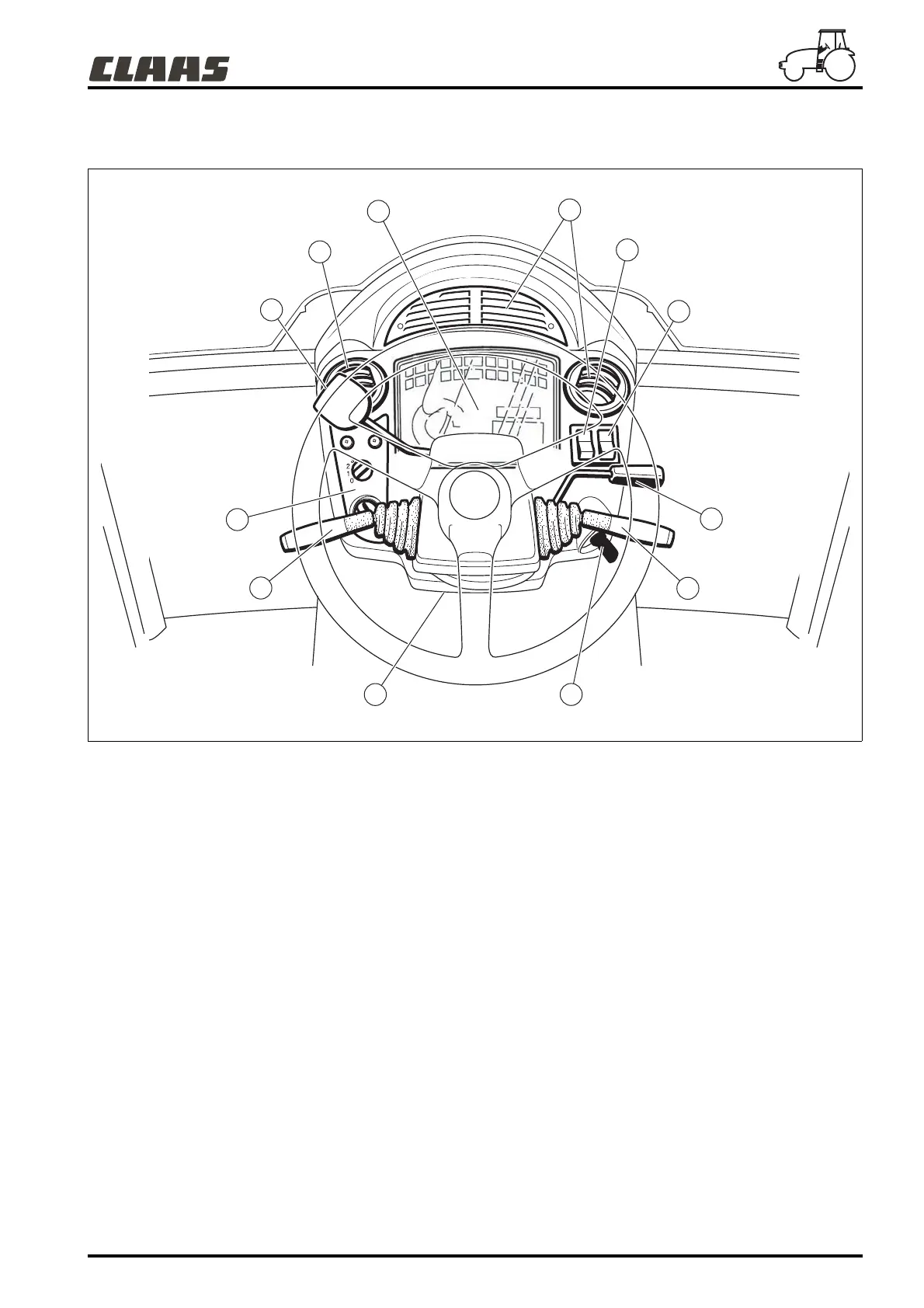

INSTRUMENTS AND CONTROLS (PANEL)
761msn04
1 - Reverser lever under torque.
2 - Hot/cold air vents.
3 - Instrument cluster.
4 - Rotating beacon control switch.
5 - Hazard flasher switch.
6 - Steering wheel adjuster.
7 - Multifunction control:
- Front screen wiper.
- Front screen washer.
- Digital display (instrument panel).
8 - Main switch (key operated).
9 - Drinks cooler compartment.
10 - Multifunction control:
- Direction indicators.
-Lights.
- Horn.
11 - Fresh air/air conditioning control.
1
11
10
9
8
2
3
2
4
5
6
7
