39
DIRECT DISC
40
DIRECT DISC

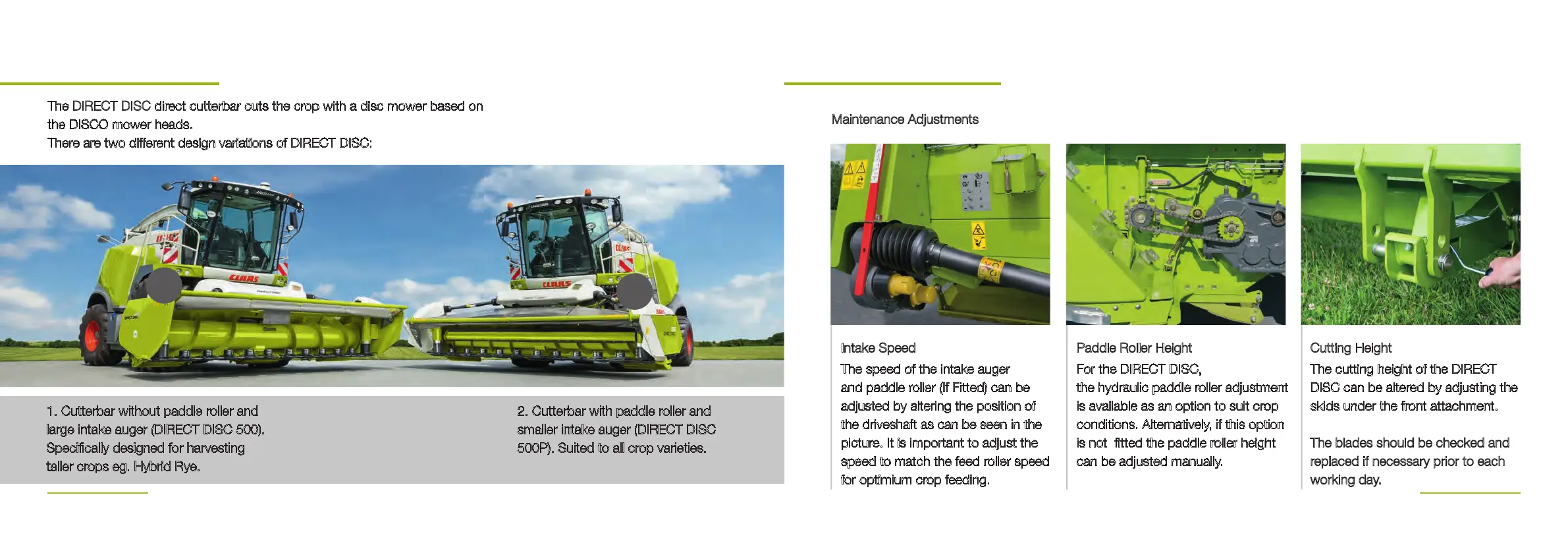

The DIRECT DISC direct cutterbar cuts the crop with a disc mower based on
the DISCO mower heads.
There are two different design variations of DIRECT DISC:
Maintenance Adjustments
Intake Speed
The speed of the intake auger
and paddle roller (If Fitted) can be
adjusted by altering the position of
the driveshaft as can be seen in the
picture. It is important to adjust the
speed to match the feed roller speed
for optimium crop feeding.
Paddle Roller Height
For the DIRECT DISC,
the hydraulic paddle roller adjustment
is available as an option to suit crop
conditions. Alternatively, if this option
is not tted the paddle roller height
can be adjusted manually.
Cutting Height
The cutting height of the DIRECT
DISC can be altered by adjusting the
skids under the front attachment.
The blades should be checked and
replaced if necessary prior to each
working day.
1. Cutterbar without paddle roller and
large intake auger (DIRECT DISC 500).
Specically designed for harvesting
taller crops eg. Hybrid Rye.
2. Cutterbar with paddle roller and
smaller intake auger (DIRECT DISC
500P). Suited to all crop varieties.
1
2
