05

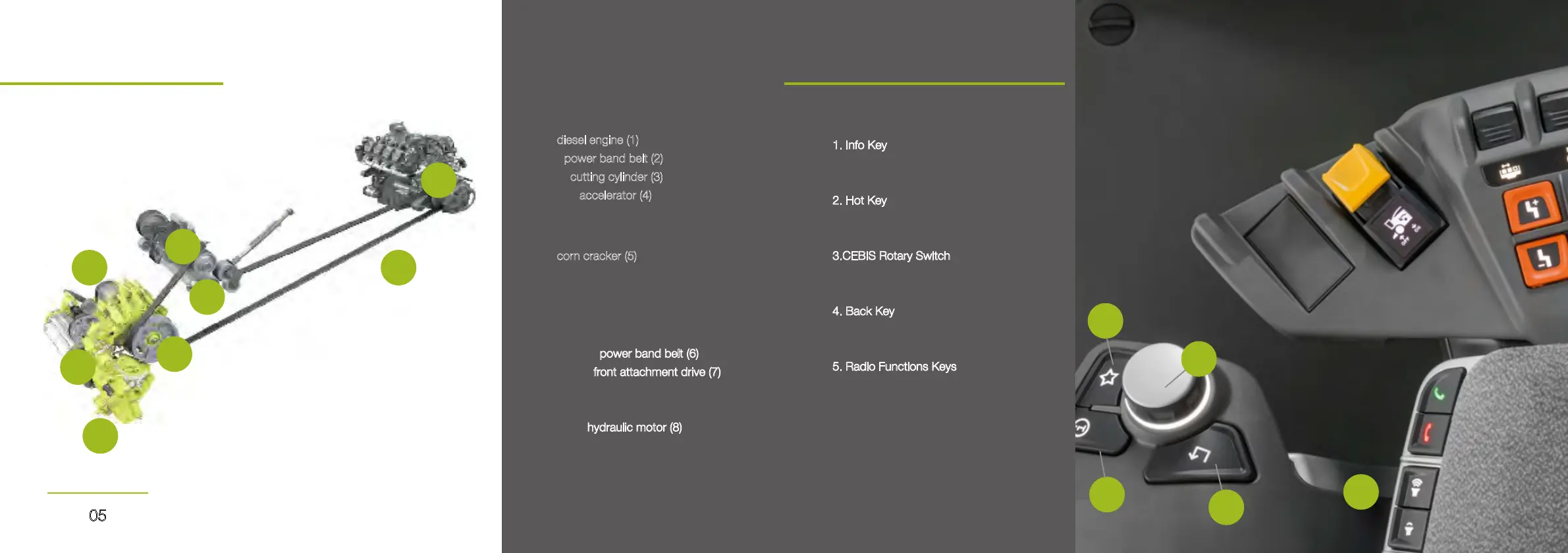

Drive Concept
Drive is taken directly from
the
diesel engine (1)
via a power band belt (2)
to the cutting cylinder (3),
and the
accelerator (4).
The accelerator shaft drives
the
corn cracker (5) by means of
another belt drive.
The cutting cylinder shaft
transmits the power to the right side
via the third
power band belt (6),
driving the
front attachment drive (7)
and the feed rollers.
The feed rollers are reversed
using the
hydraulic motor (8).
1
2
3
4
5
6
7
8
Right Hand Console
1. Info Key
Provides extra information
2. Hot Key
Additional machine functions
3.CEBIS Rotary Switch
Main Menu functions
4. Back Key
Back step / cancels a change
5. Radio Functions Keys
Operates radio and bluetooth
5
1
2
3
4
