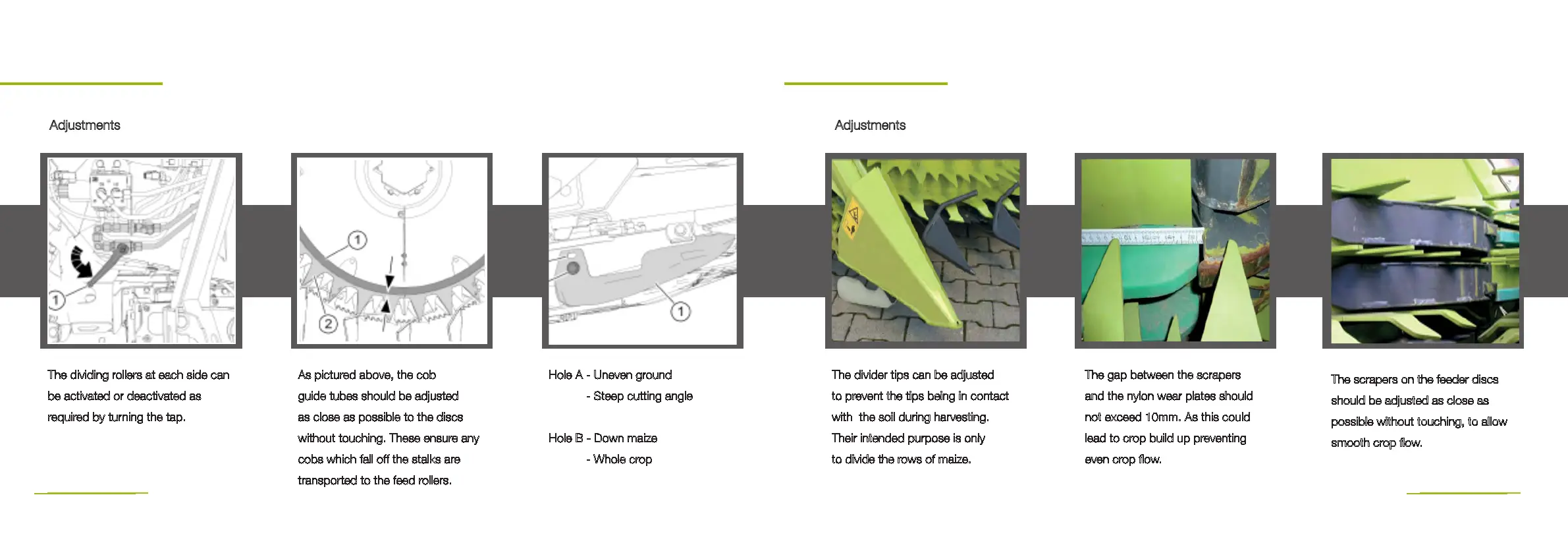

The dividing rollers at each side can
be activated or deactivated as
required by turning the tap.
The divider tips can be adjusted
to prevent the tips being in contact
with the soil during harvesting.
Their intended purpose is only
to divide the rows of maize.
As pictured above, the cob
guide tubes should be adjusted
as close as possible to the discs
without touching. These ensure any
cobs which fall off the stalks are
transported to the feed rollers.
The scrapers on the feeder discs
should be adjusted as close as
possible without touching, to allow
smooth crop ow.
Hole A - Uneven ground
Hole A - Steep cutting angle
Hole B - Down maize
Hole A - Whole crop
The gap between the scrapers
and the nylon wear plates should
not exceed 10mm. As this could
lead to crop build up preventing
even crop ow.
Adjustments Adjustments
To Next Page
