claber Dual Select 8488 - Installation and Programming; Timer Installation; Watering Programme Selection

Dual Select
Dual Select
Pag. 2

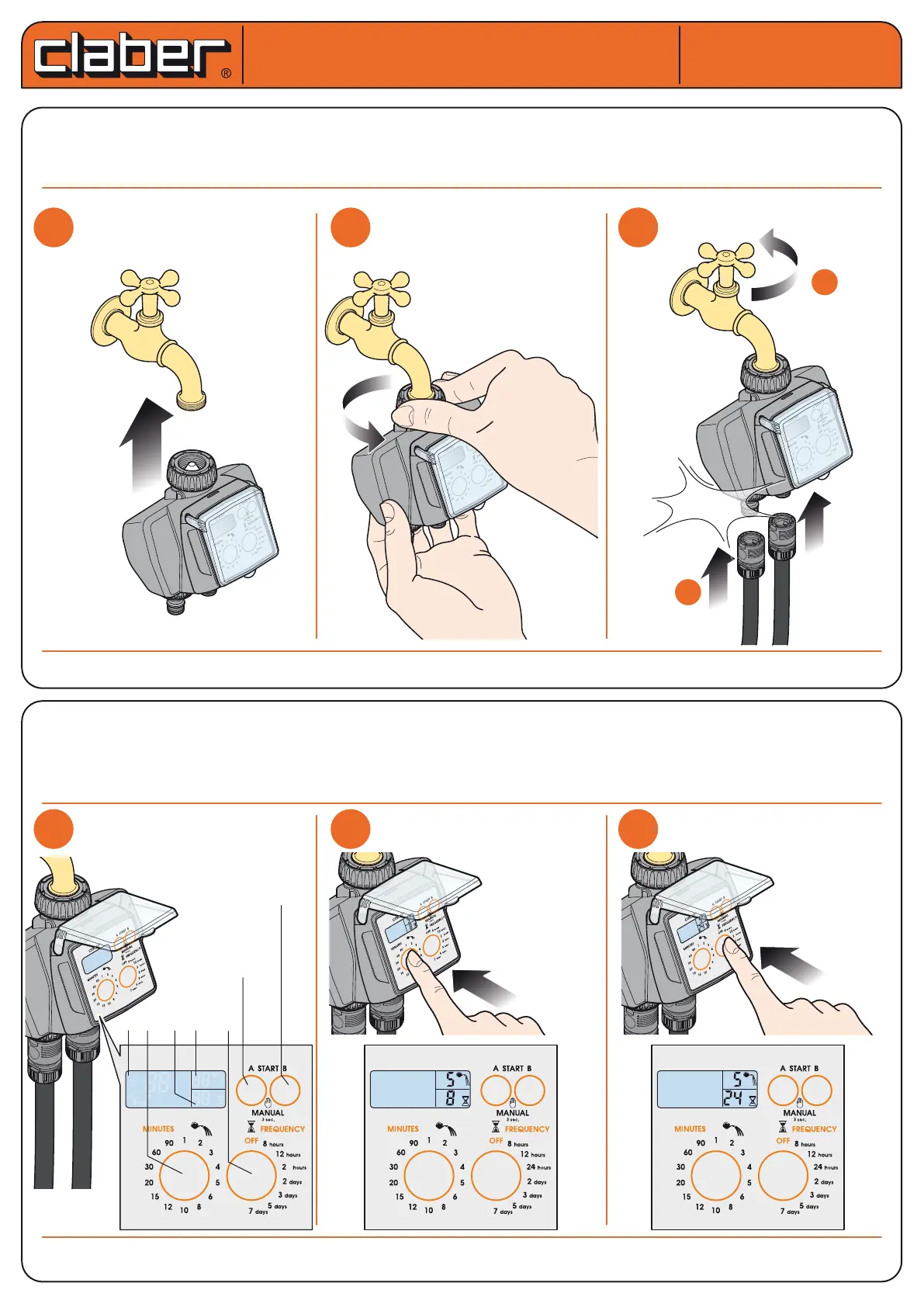

INSTALLATION. Fit the timer to a cold water tap, following these simple instructions. The spout of the tap should have
a 3/4" male thread (if not, use an adaptor). Screw the clamp collar of the 3/4 " female tting onto the tap. Caution:
tighten the collar using hand pressure only. Do not use wrenches or other tools. Connect the watering lines to the
respective quick-click or threaded ttings, using the appropriate connectors. Remember to turn on the water tap!
SELECTION OF WATERING PROGRAMME. Press any button once to light up the display. Set the watering time
by pressing the “M” button repeatedly (e.g. 5 times) until the required value appears in display eld “D”(e.g. 5
min). Set the watering frequency (the interval between successive watering cycles) by pressing the “F” button
repeatedly until the required value appears in display eld “E” (e.g. 24h). The selectable intervals are: every 8, 12
or 24 hours, or every 2, 3, 4, 5 or 7 days.
