Clarion 2/1 Channel Power Amplifier DPX1000.2 User Manual

2-Channel Full-Range, Satellite, or Subwoofer Stereo System
OWNER'S MANUAL
7
APPLICATIONS
L Full Range
L Subwoofer R Subwoofer
L Satellite R Satellite
R Full Range
2-way Passive
Crossover
2-way Passive
Crossover
Set Ampz Mode as shown.
Set Amp Mode as shown;
adjust FREQ to speaker
specifications.
Set Amp Mode as shown;
adjust FREQ to speaker
specifications.

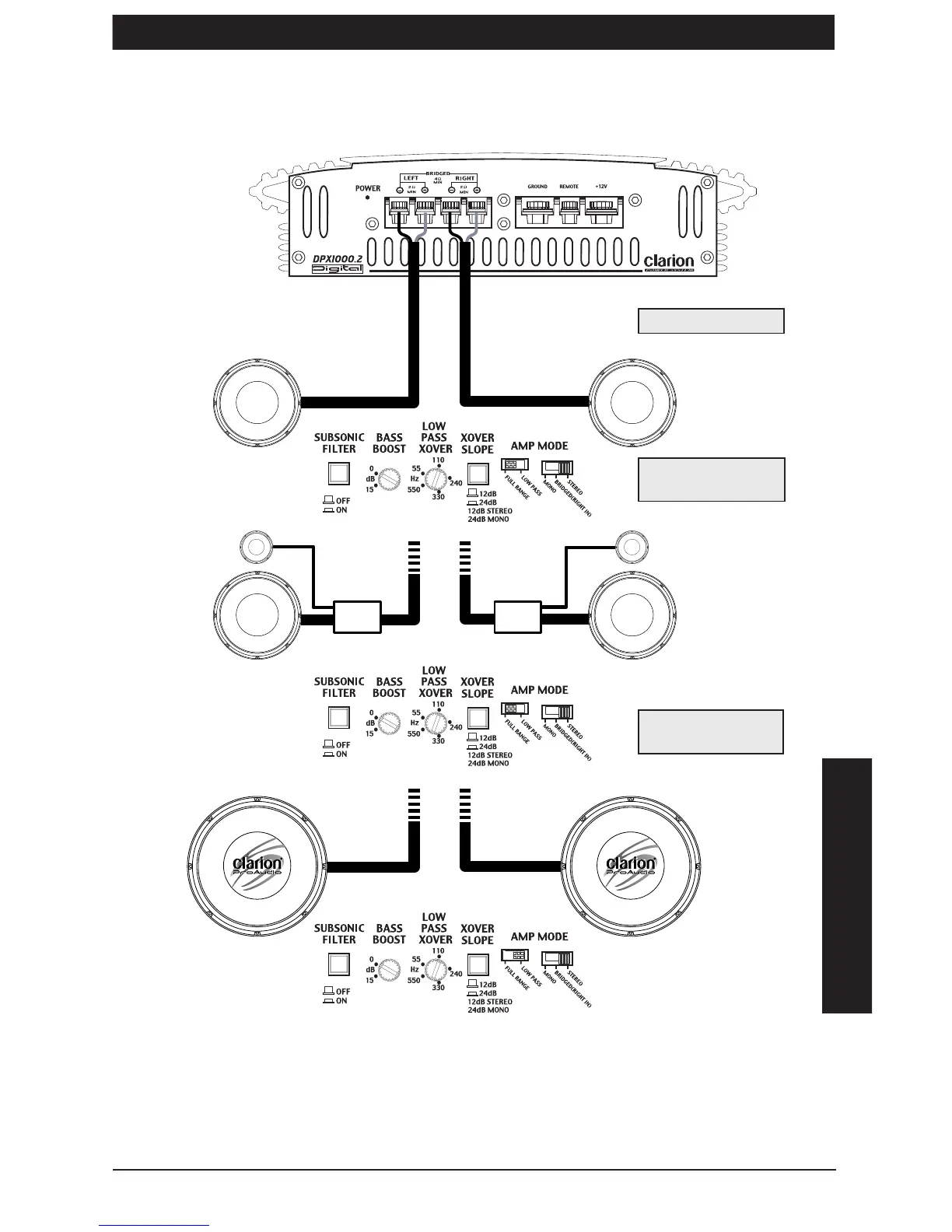

Figure 4 - In this application, the amplifier is used in stereo and drives two
full-range (or satellite or subwoofer) speakers. NOTE: A passive crossover
must be used with satellite speakers. Minimum load in the stereo mode is 1
ohms.
