Clarion APX480M

APX480M Power System Amplifier
6

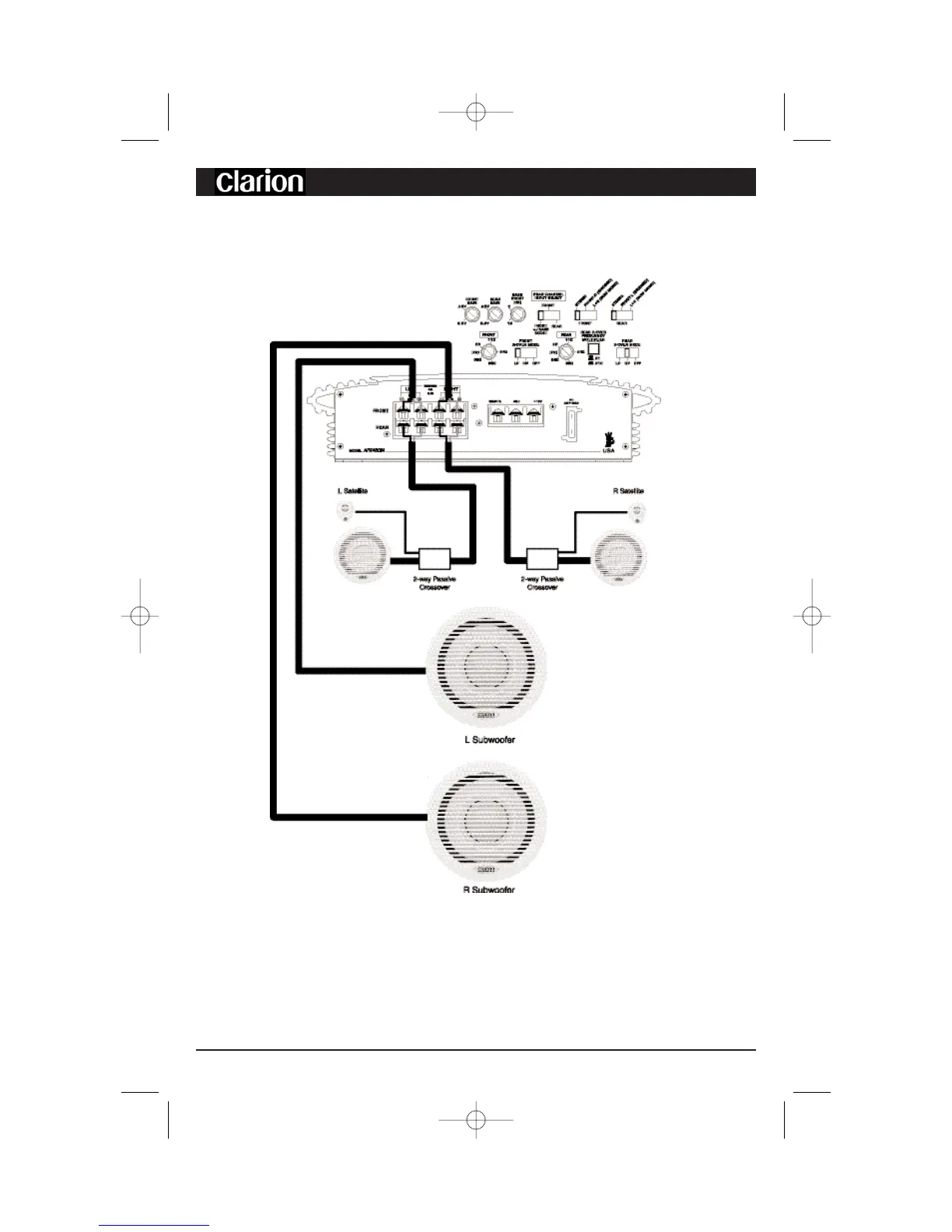

Figure 5
In this 4-channel system, the APX480M drives a pair of stereo satellites for
the front and a pair of subwoofers for the rear. Note the filter settings.
4-Channel Stereo System
2-Channel High-Pass, 2-Channel Low-Pass
