clarion Operation/Installation Ma~ual

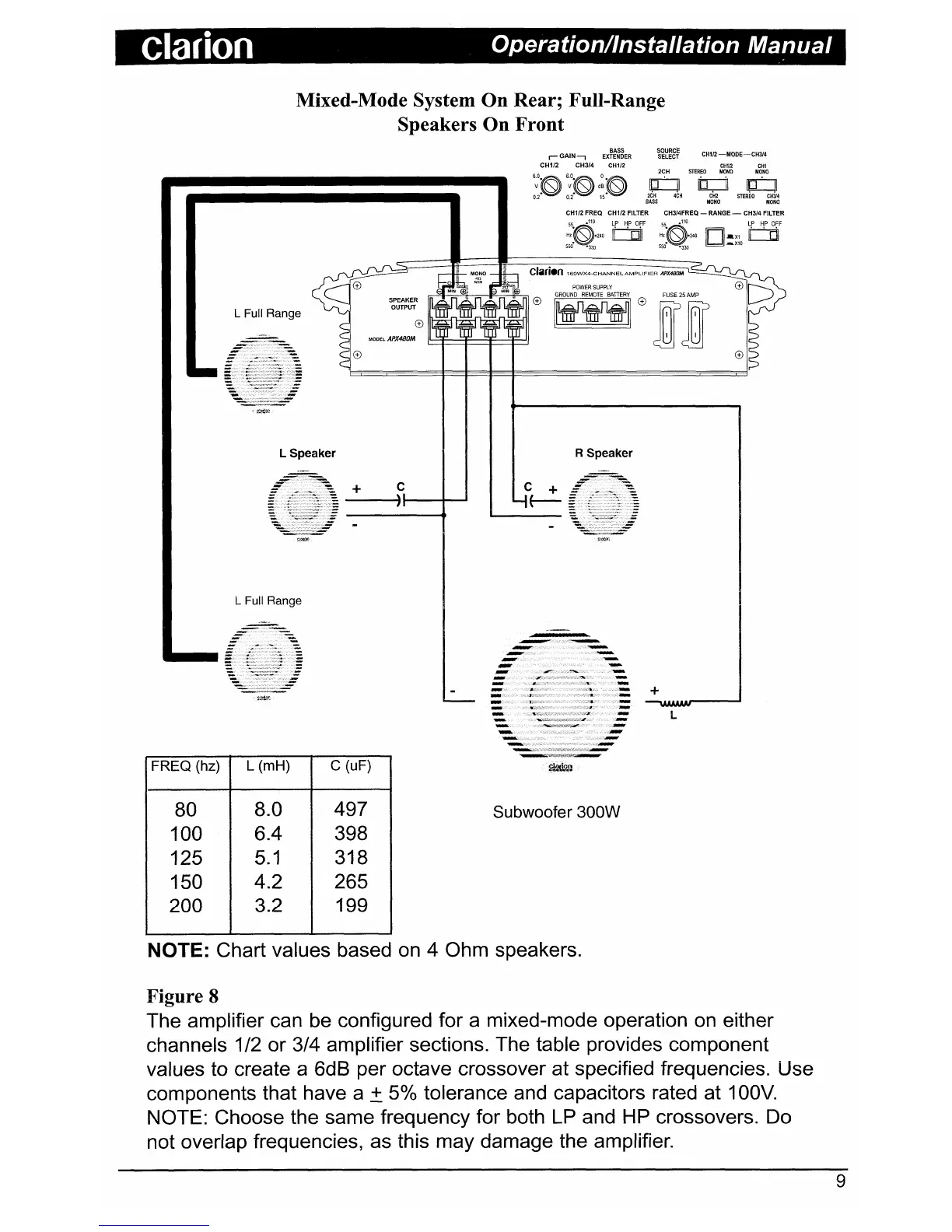

Mixed-Mode System On Rear; Full-Range
Speakers On Front
BASS
,GAIN-, EXTENDER
CH1/2 CH3/4 CH1/2
~~~~gf CH1/2 -MODE-CH3/4
CH112 CH1
2CH STEREO MONO MONO
lO 0 0
2CH 4CH CH2 STEREO CH3I4
BASS MONO MONO
CH1/2 FREQ CH1/2 FILTER CH3/4FREQ - RANGE- CH3/4 FILTER
H5z5~0240 t:jiF H:5oQ0240 D-X1 It~rr
550
0
0330 5500~0 _X10
L Full Range
L Speaker
L Full Range
cl.uien
160WX4-CHANNELAMPLIFIER APX480M
R Speaker
FREQ (hz)
L(mH) C (uF)
80
8.0
497
100
6.4
398
125
5.1 318
150
4.2
265
200
3.2 199
Subwoofer 300W
+
L
NOTE: Chart values based on 4 Ohm speakers.
Figure 8
The amplifier can be configured for a mixed-mode operation on either
channels 1/2 or 3/4 amplifier sections. The table provides component
values to create a 6dB per octave crossover at specified frequencies. Use
components that have a
.± 50/0 tolerance and capacitors rated at 100V.
NOTE: Choose the same frequency for both LP and HP crossovers. Do
not overlap frequencies, as this may damage the amplifier.
9
