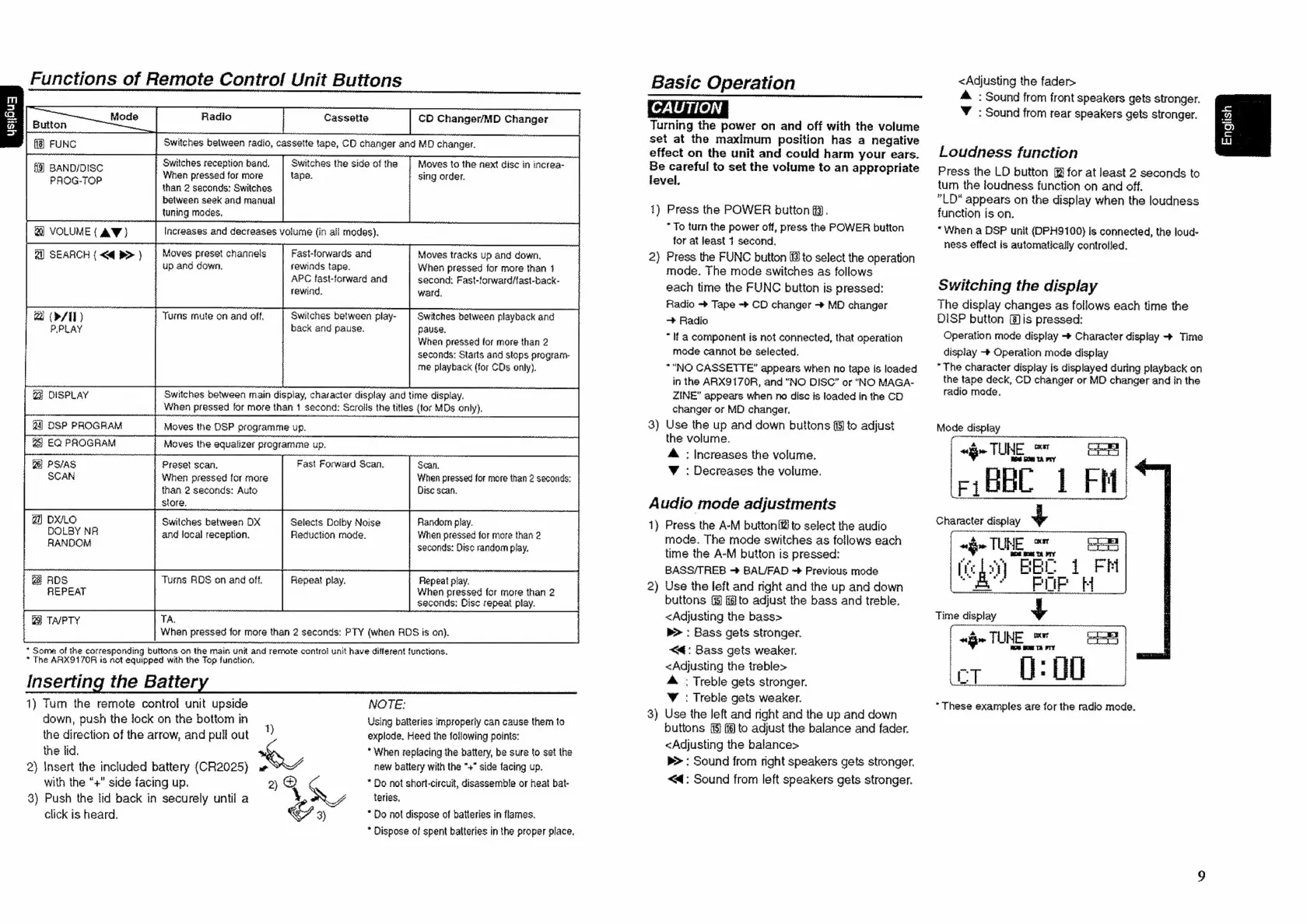

Functions of Remote Contro! Unit Buttons
ff) FUNC Switches between radio, cassette tape, CD changer and MD changer.
Switches the side of the
tape.
Switches reception band.
When pressed for more
than 2 seconds: Switches
between seek and manual
tuning modes,
Moves to the next disc in increa-
9)
BAND/DISC
sing
order.
PROG-TOP
2] VOLUME ( AW)
Zi] SEARCH { <q D> )
Increases and decreases volume (in all modes).
Fast-forwards and
rewinds tape.
APC fast-forward and
rewind.
Moves preset channels
up and down.
Moves tracks up and down,
When pressed for more than 4
second; Fast-forward/fast-back-
ward.
Turns mute on and off,
@ (>/ 11)
P.PLAY
Switches between play-
back and pause.
Switches between playback and
pause.
When pressed for more than 2
seconds: Starts and stops program-
me playback (for CDs only).
2 DISPLAY Switches between main display, character display and time display.
When pressed for more than 1 second: Scrolls the titles {for MDs only).
2 4
24) OSP PROGRAM Moves the DSP programme up.
) EQ PROGRAM Moves the equalizer programme up.
Be PS/AS Preset scan. Fast Forward Scan. Scan.
SCAN When pressed for more When pressed for more than 2 seconds:
than 2 seconds: Auto Dise scan.
store.
2) DX/LO
DOLBY NR
RANDOM
Switches between DX
and local reception.
Selects Dolby Noise
Reduction mode.
Random play.
When pressed for more than 2
seconds: Dis random play.
28} RDS Turns RDS on and off. Repeat play, Repeat play.
REPEAT When pressed for more than 2
seconds: Disc repeat play.
@} TAIPTY TA.
When pressed for more than 2 seconds: PTY (when ADS is on).
* Some of the corresponding buttons on the main unit and remote control unit have different functions.
* The ARX9170RA is not equipped with the Top function.
inserting the Batter
1) Tum the remote contro! unit upside NOTE:
down, push the lock on the bottom in , Using batteries improperly can cause them to
the direction of the arrow, and pull out ) explode. Heed the following points:
the lid. * When repiacing the battery, be sure to set the
2) insert the included battery {CR2025) w new battery with the “+” side facing up.
with the “+" side facing up. 2) @ * Do not short-circuit, disassemble or heat bat-
3) Push the tid back in securely until a \ By teries.
click is heard. LY 3) * Do not dispose of batteries in (lames.
* Dispose of spent batteries in the proper place.
Basic Operation
CAUTION
Turning the power on and off with the volume
set at the maximum position has a negative
effect on the unit and could harm your ears.
Be careful to set the volume to an appropriate
level.
1) Press the POWER button @.
* To turn the power off, press the POWER button
for at least 7 second,
2) Press the FUNC button @! to select the operation
mode. The mode switches as follows
each time the FUNC button is pressed:
Radio - Tape -+ CD changer -* MD changer
“> Radio
“ lf a component is not connected, that operation
mode cannot be selected.
““NO CASSETTE” appears when no tape is loaded
in the ARX9170R, and “NO DISC” or “NO MAGA-
ZINE” appears when no disc is loaded in the CD
changer or MD changer.
3) Use the up and down buttons {§) to adjust
the volume.
& : Increases the volume.
Vv : Decreases the volume.
Audio mode adjustments
1) Press the A-M button to select the audio
mode. The mode switches as follows each
time the A-M button is pressed:
BASS/TREB + BAL/FAD ~ Previous mode
Use the left and nght and the up and down
buttons {8 fg to adjust the bass and treble.
<Adjusting the bass>
b> : Bass gets stronger.
<4: Bass gets weaker.
<Adjusting the treble>
A ; Treble gets stronger.
YW : Treble gets weaker.
3) Use the Jeft and nght and the up and down
buttons [i fig) to adjust the balance and fader.
<Adjusting the balance>
b> : Sound from right speakers gets stronger.
<4: Sound from left speakers gets stronger.
sid
<Adjusting the fader
& : Sound from front speakers gets stronger.
¥ : Sound from rear speakers gets stronger.
Loudness function
Press the LD button ( for at least 2 seconds to
tum the loudness function on and off,
"LD" appears on the display when the loudness
function is on.
“When a DSP unit (DPH9100) is connected, the loud-
ness effect is automatically controlled.
Switching the display
The display changes as follows each time the
DISP button Mis pressed:
Operation mode display + Character display > Time
display -> Operation mode display
“The character display is displayed during playback on
the tape deck, CD changer or MD changer and in the
radio mode.
Mode display
«§ TUNE °" EE
ribbC | Fit
Character display 4
~~ UE, Ss
fiber BBC 1 FM
: ‘a ) SPOR H
Time display +
«TUNE = EE
CT
0: U0
“ These examples are for the radio mode.
