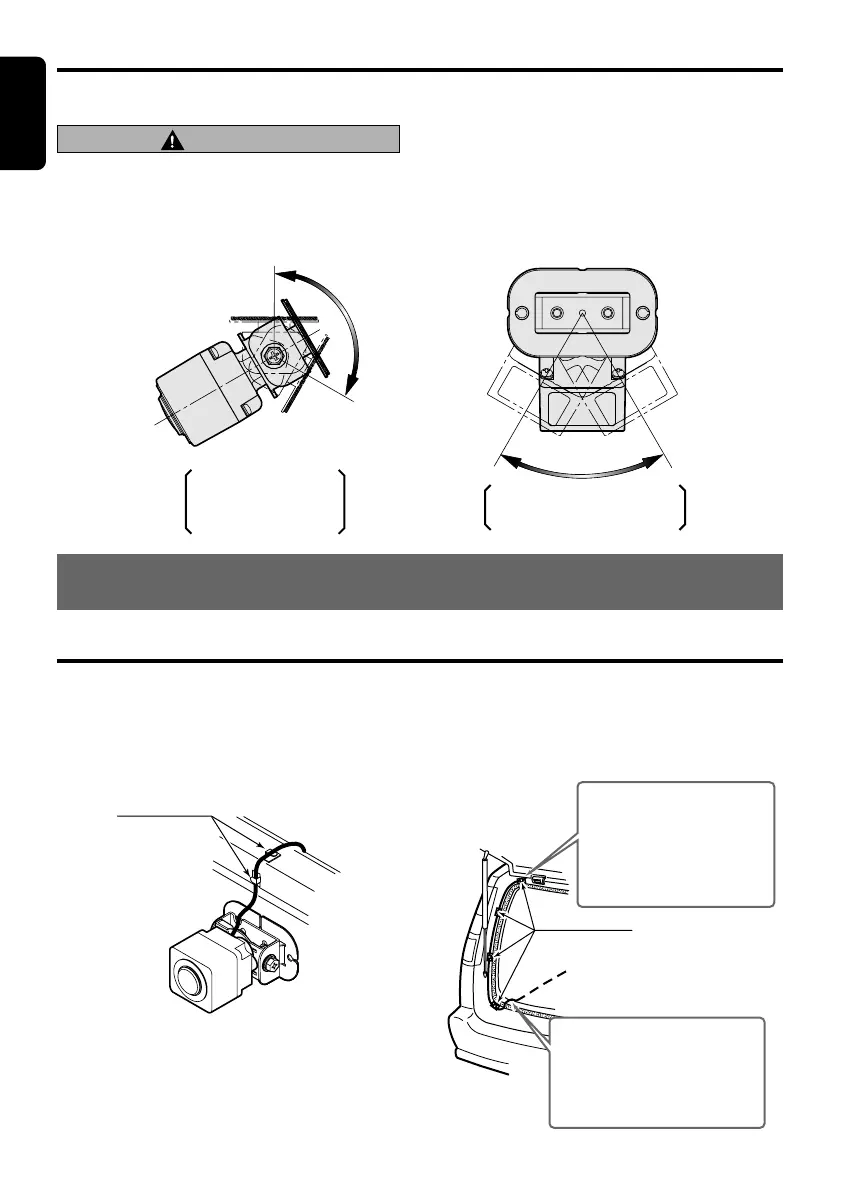

Installing/Wiring the camera
When the camera angle has been changed,
the range displayed by the image on the
monitor will change. Always confirm by
direct observation when backing the vehicle.
■ Adjusting camera angle (example)
Adjust the angle of
brackets A+B as
required by the
mounting position.
Adjust horizontal angle
while confirming image on
monitor.
6. WIRING
Wiring
1 Lead the camera cable into the vehicle and
align it along the vehicle weather stripping.
Use the supplied cable holders as necessary
to fix the wires in place and prevent them
from being pinched in hinges or dampers.
Cable holders
2 Using an optional extension cable, the
camera cable can be installed under the
vehicle floor (carpet) to connect to a Clarion
rear-view monitor or independent power
supply box (CAA-188).
Fix the cable with
adequate looseness in
this area to prevent it from
being stretched or
pinched in the hinge when
the rear gate is opened
and closed.
Always introduce the cable
into the vehicle from the
bottom (floor) side.
Introducing the cable from the
door top or side may lead to
penetration by water.
Cable holders
CAUTION
