-8-
CX501/CX501B/CX501A

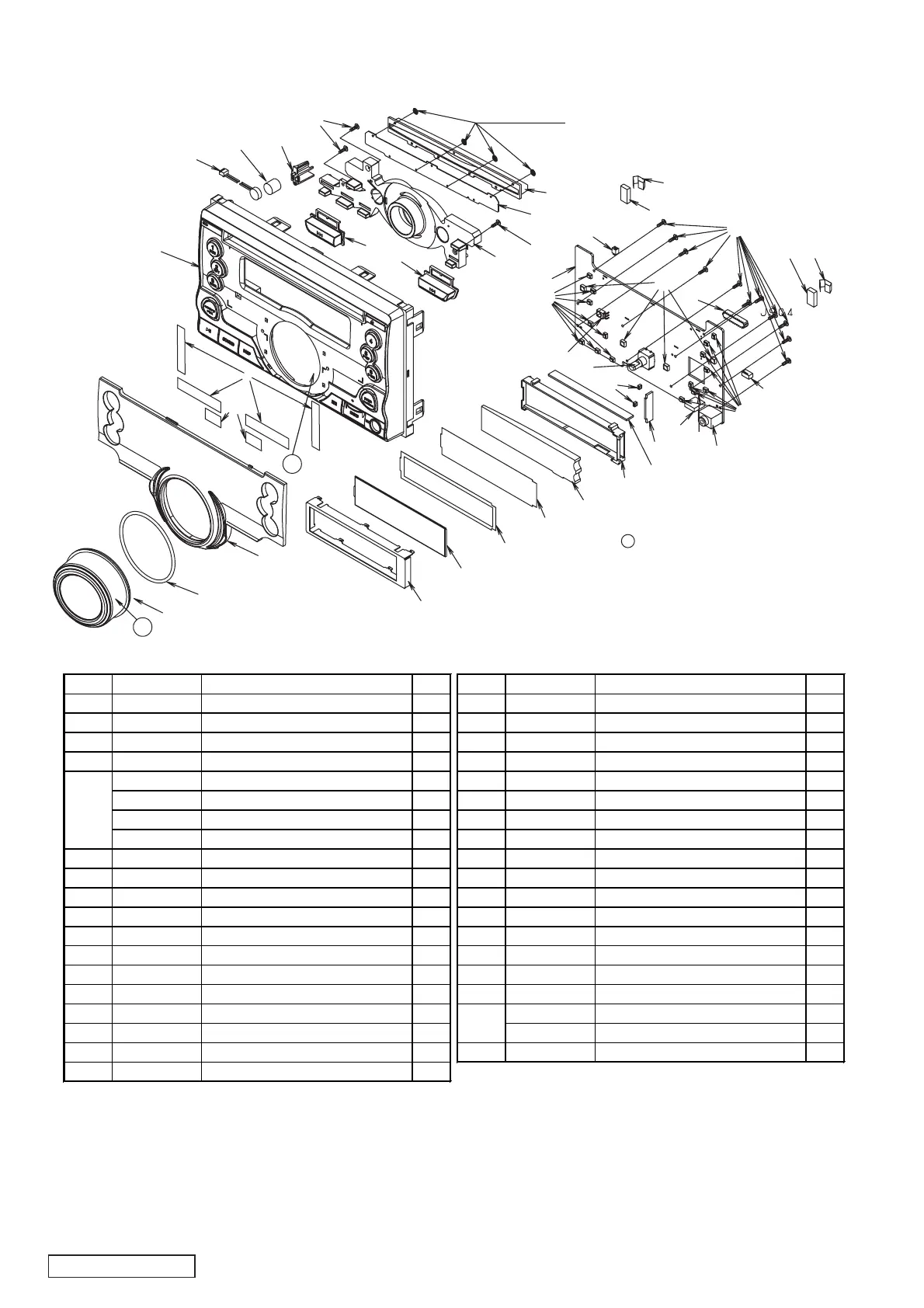

EXPLODED VIEW / PARTS LIST
Escutcheon section
: SANKOL application
Note) SANKOL uses CFD-409Z
A
Note)1. Some parts depend on each model.
The model name is specified in the description.
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 947-0785-00 KNOB ASSY 1 18 331-5080-00 LCD COVER
1
2 947-0784-00 DIAL ASSY 1 19 379-1457-51 INDICATOR(LCD)
1
3 347-8918-00 DOUBLE FACE 2 20 347-8922-00 BLACK FILM
1
4 347-8298-00 DOUBLE FACE 4 21 347-8921-00 WHITE FILM
1
5 940-8602-00 ES ASSY(PE-3402B-A) 1 22 335-9037-00 LCD ILLUMI
1
940-8602-08 ES ASSY(PE-3402B-B) 1 23 335-9038-00 LCD HOLDER
1
940-8602-02 ES ASSY(PE-3402K-A) 1 24 345-6526-00 RUBBER PART
1
940-8602-07 ES ASSY(PE-3402K-B) 1 25 074-4036-50 USB JACK(PE-3402B-A/K-B)
1
6 081-0040-00 MICRIPHONE 1 26 001-7088-92 DIODE
6
7 382-9582-00 BUTTON(RESET) 1 27 016-9900-94 VR W/SHAFT
1
8 346-0209-00 LEATHER SHEET 1 28 060-4021-00 IR-RECEIVER
1
9 371-3827-03 TRIM PLATE 1 29 075-9021-50 AUX JACK
1
10 345-5312-00 CUSHION 2 30 001-7062-90 DIODE
1
11 347-7321-00 E-SHEET 2 31 013-6312-50 TACT SWITCH
16
12 345-6422-00 SPONGE 1 32 076-0478-52 PLUG(2P)
1
13 716-0872-51 SPECIAL SCREW(M1.7x5) 14 33 074-3014-72 OUTLET SOCKET(22P)
1
14 382-9580-00 BUTTON(FW) 1 ------------ SWITCH PWB1
1
15 382-9579-00 BUTTON(FF) 1 ------------ SWITCH PWB2
1
16 335-9044-00 ILLUMI(MID) 1 35 076-0502-55 PLUG(5P)(PE-3402B-A/K-B)
1
17 347-8968-00 FILM 1
34
1
2
17
18
20
19
21
22
23
24
25
29
30
31X8
35
26
33
10
11
13X11
10
11
31X8
32
16
13
8
9
14
15
13
12
6
7
5
3
4
26
27
28
A
A
Weld by heating
34
34
