280-7815-00
DB625MP 23
■

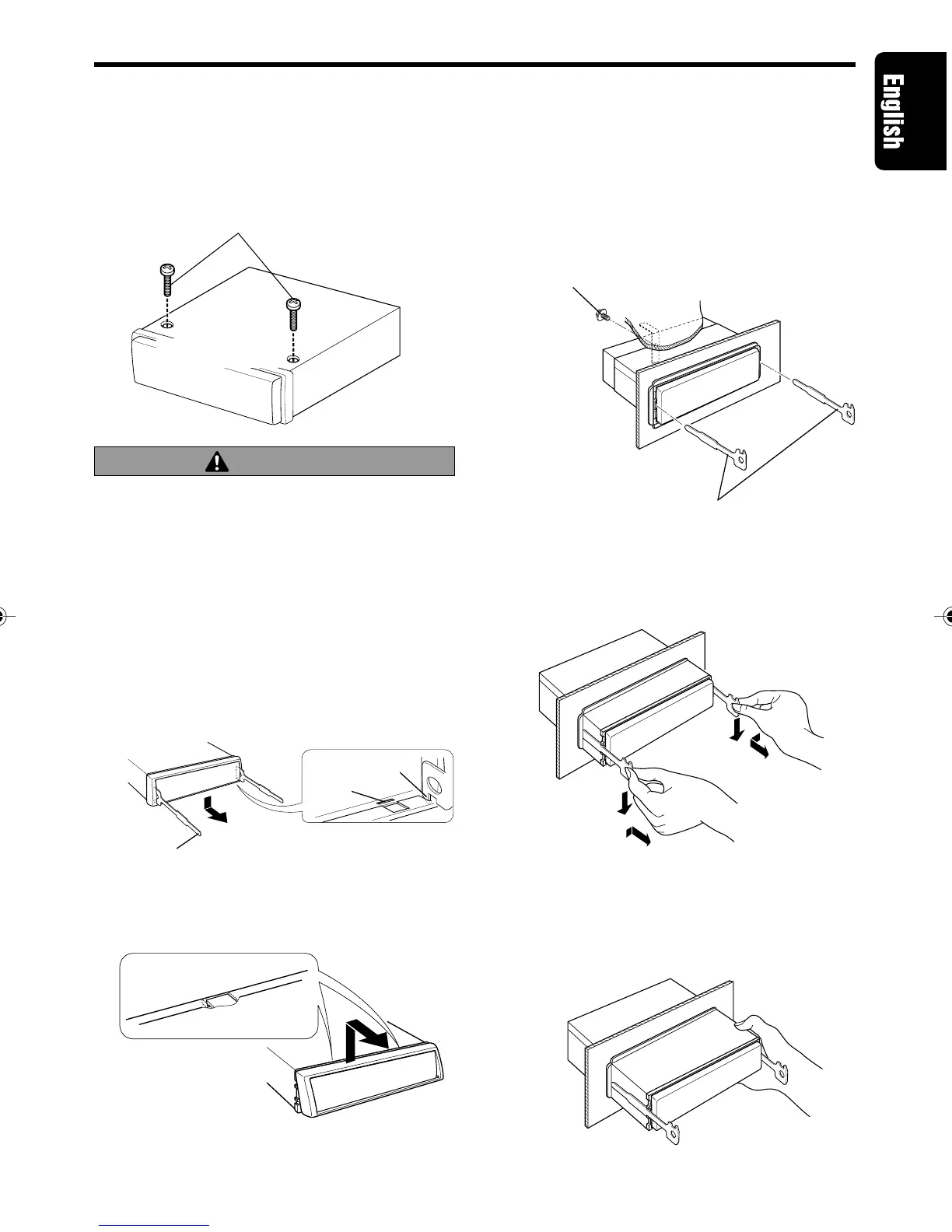

Screwing the Faceplate on the Unit
If you want to fasten the faceplate to the main
unit so that it does not fall off, screw in the pro-
vided screws (ø4 X 16 mm) in the holes shown
below.
CAUTION
Never insert the taptite screw (ø4 × 16 mm) in
any other screw hole than the one specified. If
you screw it in another hole, it will contact and
may cause damage to the mechanical parts in-
side the unit.
Installation
■
Removing the hard rubber frame
1. Engage the catch pins on the removal tool and
remove the two locks on the lower level.
Lower the frame and pull it forward as shown
in the figure.
2. When the lower level is removed, remove the
upper two locations.
Note:
• The frame can be removed from the top side in
the same manner.
Accessory 2 Removal tool
Catch
Lock
Screw (M4×8)
(commercially available)
Accessory 2 Removal tool
■
Removing the Unit
1. Refer to the section “Removing the hard rub-
ber frame” and then remove the hard rubber
frame.
2. Remove the screw (M4×8) on the back panel.
3. Insert the two removal tools deeply into the
slots on each side, as shown.
4. Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
Note:
• Be careful to avoid injury from the catch pins on
the removal tool.
5. Pull the unit all the way out with your hands,
being careful not to drop it.
Accessory 5
Bottom panel
280-7815-00_009-030 (En) 4/2/02, 4:58 PM23
