Clarion DCZ625 - Exploded View Parts List; Main Section

DCZ625
DCZ628
- 5 -

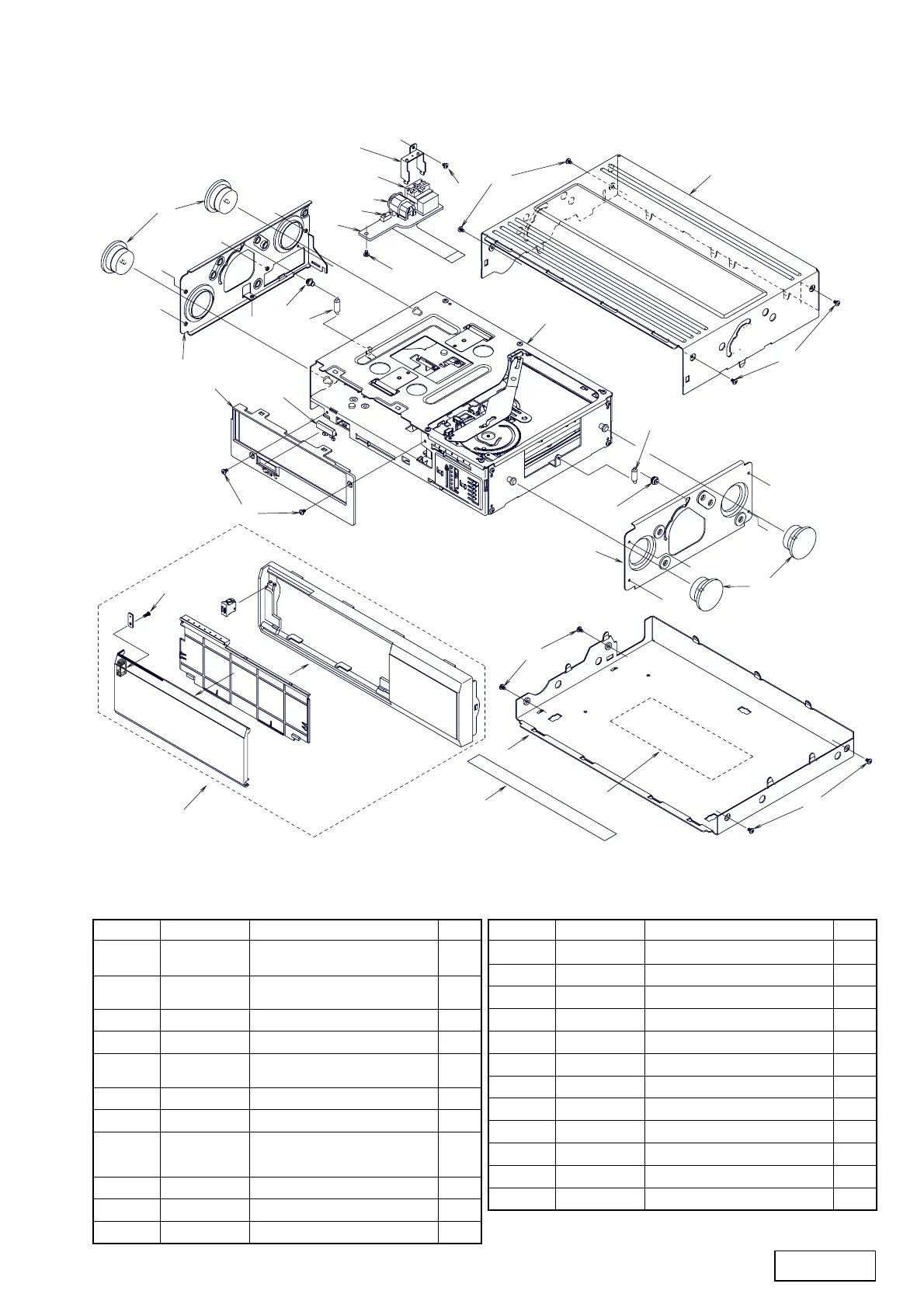

■EXPLODED VIEW・PARTS LIST
Main section
2
2-1
12
19
15
16
21
10
14
12
4
3
5
6
17
13
12
8
12
11
1
20
18
14
12
7
9
12
B1
B2
A1
A2
A4
A2
A3
A1
A4
A3
B3
B4
B6
B5
B6
B4
B2
B3
B1
B5
22
1 −−−−− CHANGER MECHANISM 1
(025020)
2 940-7965-63 ESCUTCHEON ASSY(DCZ625) 1
940-7965-60 ESCUTCHEON ASSY(DCZ628) 1
2-1 716-0872-00 PAD SCREW 1
3 013-3968-00 SWITCH 1
4 039-1948-20 CONNECTOR PWB 1
(WITHOUT COMPONENT)
5 074-1194-00 OUTLET SOCKET 1
6 075-0305-00 JACK 1
7 286-9860-00 SETPLATE(DCZ625/U.S.A) 1
286-9858-00 SETPLATE(DCZ628)
286-9861-00 SETPLATE(DCZ625/OTHER)
8 310-1742-21 UPPER CASE 1
9 311-1838-20 LOWER CASE 1
10 750-3460-21 FL-SPRING L 1
11 750-3459-21 FL-SPRING R 1
12 716-1716-00 SCREW 11
13 716-0484-00 SPECIAL SCREW 1
14 629-0080-00 DAMPER GS-6 4
15 371-5693-22 TRIM PLATE 1
16 382-6254-20 BUTTON 1
17 620-1088-20 CE-NET HOLDER 1
18 620-0996-21 DAMPER PLATE R 1
19 620-0997-20 DAMPER PLATE F 1
20 622-1545-20 FL PIN R 1
21 622-1546-20 FL PIN L 1
22 348-0331-00 TAPE 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
Note)Some parts depend on each model.The model name is specified in the description.
