Clarion DRX6575RZ Service Manual

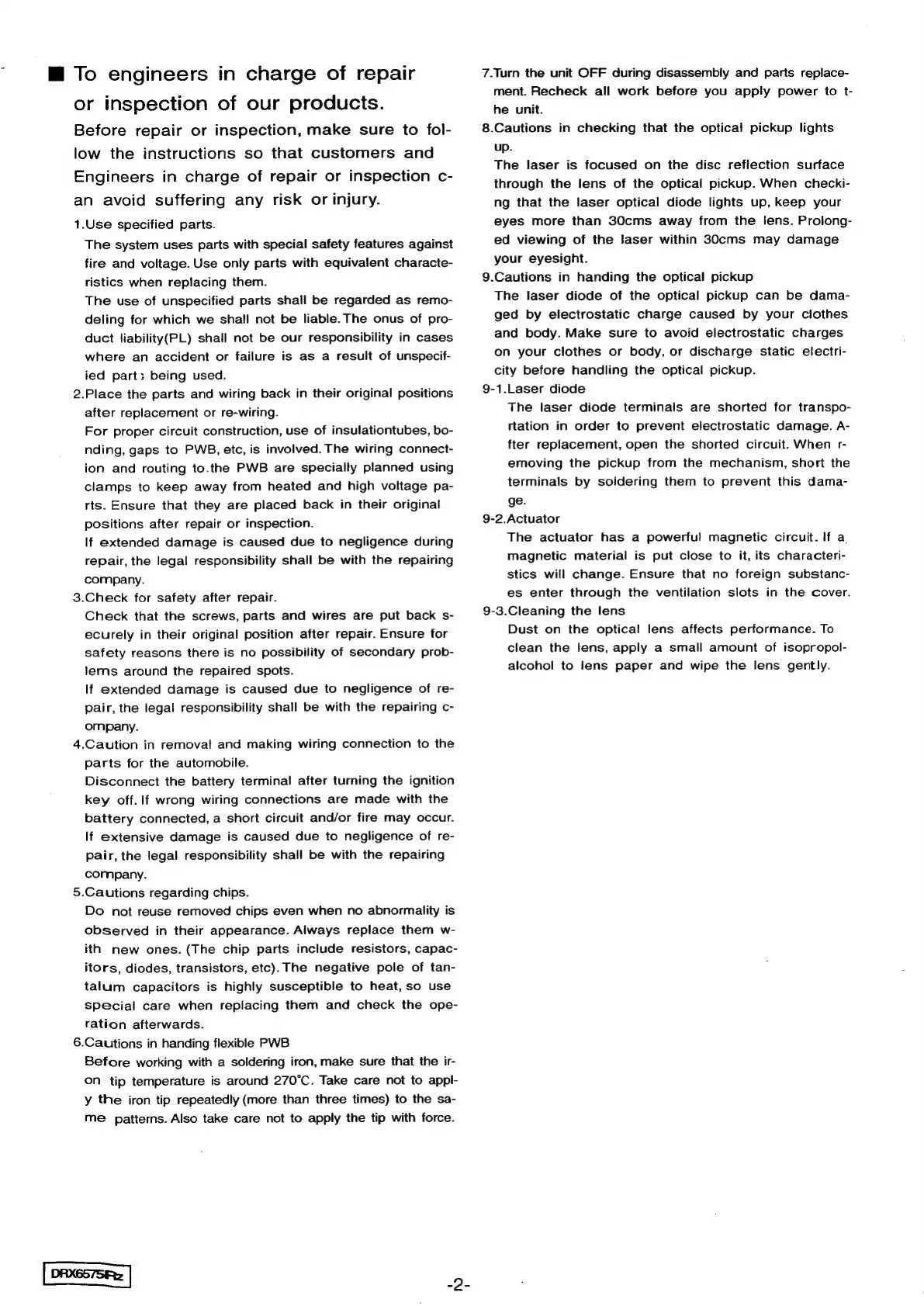

M@ To engineers in charge of repair
or inspection of our products.
Before repair or inspection, make sure to fol-
low the instructions so that customers and
Engineers in charge of repair or inspection c-
an avoid suffering any risk or injury.
1.Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent characte-
ristics when replacing them.
The use of unspecified parts shall be regarded as remo-
deling for which we shall not be liable. The onus of pro-
duct liability(PL) shall not be our responsibility in cases
where an accident or failure is as a result of unspecif-
ied part; being used.
2.Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulationtubes, bo-
nding, gaps to PWB, etc, is involved. The wiring connect-
ion and routing to.the PWB are specially planned using
clamps to keep away from heated and high voltage pa-
rts. Ensure that they are placed back in their original
positions after repair or inspection.
lf extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3.Check for safety after repair.
Check that the screws, parts and wires are put back s-
ecurely in their original position after repair. Ensure for
safety reasons there is no possibility of secondary prob-
lems around the repaired spots.
If extended damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing c-
ompany.
4.Caution in removal and making wiring connection to the
parts for the automobile.
Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the
battery connected, a short circuit and/or fire may occur.
If extensive damage is caused due to negligence of re-
pair, the legal responsibility shall be with the repairing
company.
5.Cautions regarding chips.
Do not reuse removed chips even when no abnormality is
observed in their appearance. Always replace them w-
ith new ones. (The chip parts include resistors, capac-
itors, diodes, transistors, etc). The negative pole of tan-
talum capacitors is highly susceptible to heat, so use
special care when replacing them and check the ope-
ration afterwards.
6.Cautions in handing flexible PWB
Before working with a soldering iron, make sure that the ir-
on tip temperature is around 270°C. Take care not to appl-
y the iron tip repeatedly (more than three times) to the sa-
me patterns. Also take care not to apply the tip with force.
7.Turn the unit OFF during disassembly and parts replace-
ment. Recheck all work before you apply power to t-
he unit.
8.Cautions in checking that the optical pickup lights
up.
The laser is focused on the disc reflection surface
through the lens of the optical pickup. When checki-
ng that the laser optical diode lights up, keep your
eyes more than 30cms away from the lens. Prolong-
ed viewing of the laser within 30cms may damage
your eyesight.
9.Cautions in handing the optical pickup
The laser diode of the optical pickup can be dama-
ged by electrostatic charge caused by your clothes
and body. Make sure to avoid electrostatic charges
on your clothes or body, or discharge static electri-
city before handling the optical pickup.
9-1.Laser diode
The laser diode terminals are shorted for transpo-
rtation in order to prevent electrostatic damage. A-
fter replacement, open the shorted circuit. When r-
emoving the pickup from the mechanism, short the
terminals by soidering them to prevent this dama-
ge.
9-2.Actuator
The actuator has a powerful magnetic circuit. If a,
magnetic material is put close to it, its characteri-
stics will change. Ensure that no foreign substanc-
es enter through the ventilation slots in the cover.
9-3.Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropol-
alcohol to lens paper and wipe the fens gently.
