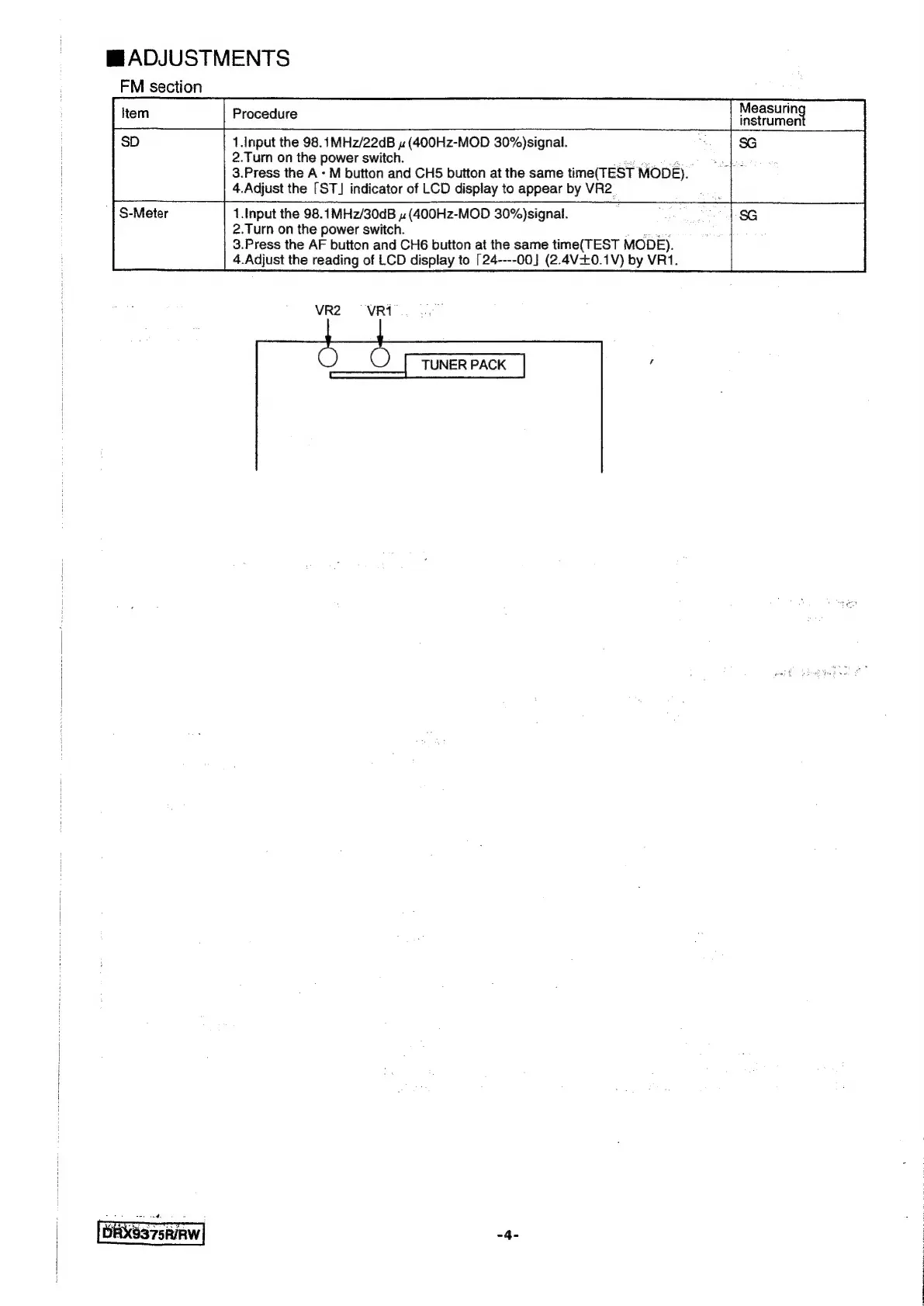

ADJUSTMENTS
FM
section
1.Input
the
98.1MHz/22dB
»
(400Hz-MOD
30%)signal.
2.Tum
on
the
power
switch.
3.Press
the
A
-
M
button
and
CH5
button
at
the
same
time(TEST
MODE).
4.Adjust
the
[ST]
indicator
of
LCD
display
to
appear
by
VR2
1.Input
the
98.1MHz/30dB
»
(400Hz-MOD
30%)signal.
2.Turn
on
the
power
switch.
3.Press
the
AF
button
and
CH6
button
at
the
same
time(TEST
MODE).
4.Adjust
the
reading
of
LCD
display
to
[24----00]
(2.4V+0.1V)
by
VR1.
VR2
=
~-VR1
TUNER
PACK
‘i
Measurin
instrumen
