4. If the unit should become wet, turn off all power and ask your authorized
Clarion dealer to clean or service the unit.

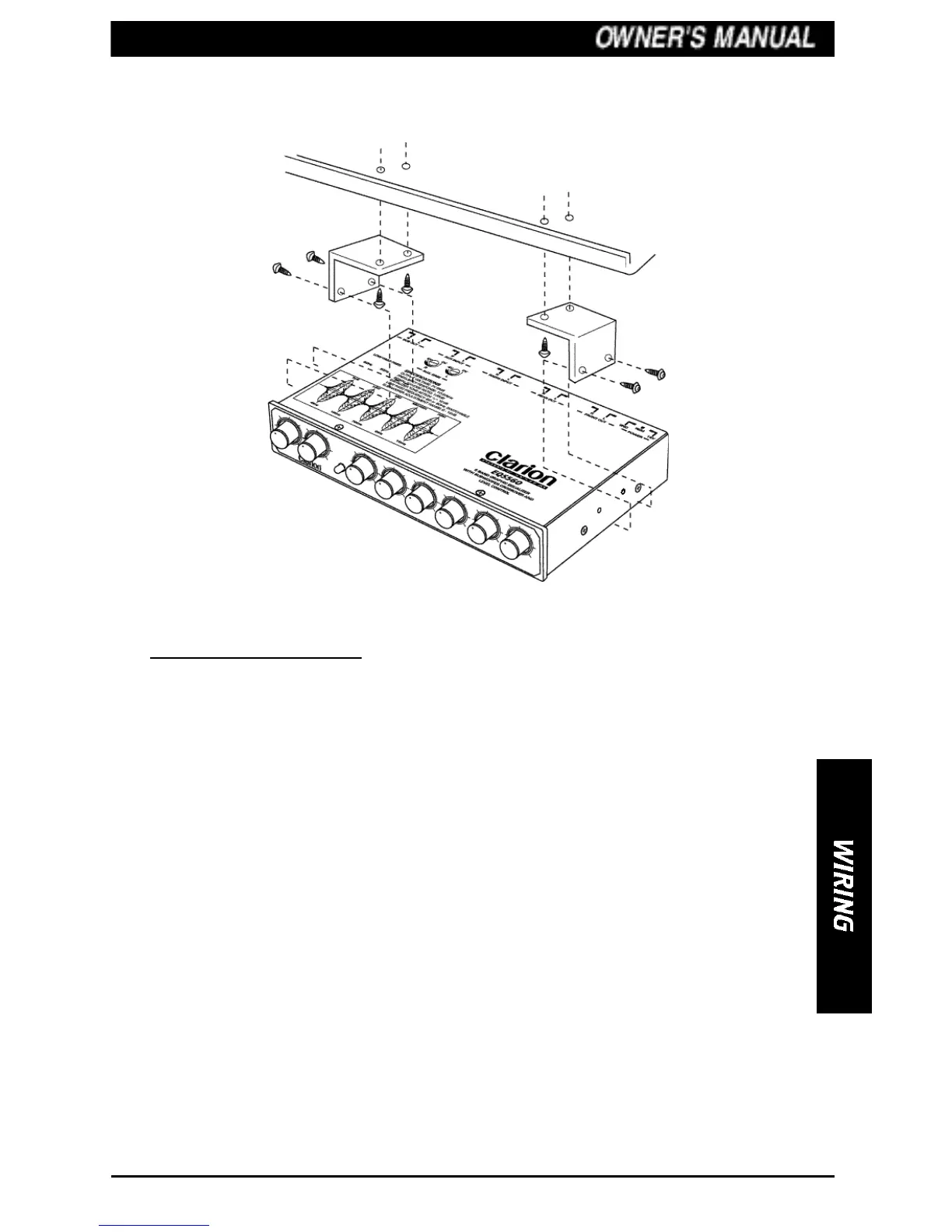

WIRING PRECAUTIONS
Read all wiring precautions. If you are not sure of the connections, contact
your authorized Clarion dealer.
1. This unit operates on an automotive 12V negative ground power source
and requires additional mobile audio components for proper operation.
2. Disconnect the negative (-) lead of the battery before making any power
connections.
3. A good chassis ground connection is critical to the performance of your
Clarion equalizer. Use the shortest ground wire possible and securely
connect to the car chassis along with the source unit ground to minimize
resistance and avoid noise problems.
4. Extra cable can cause signal loss and act as an “antenna” for noise. Use
only high-quality RCA cables that are no longer than necessary to make a
direct connection with the source unit and amplifiers.
5. If you are using a source unit, without a remote turn-on lead, the EQS560
can be turned on with a switched accessory lead. You can find this
accessory power source in the factory harness at the back of the radio. It is
the lead that turns on and off with the key.
5
