Clarion EQS755 - Controls

3.

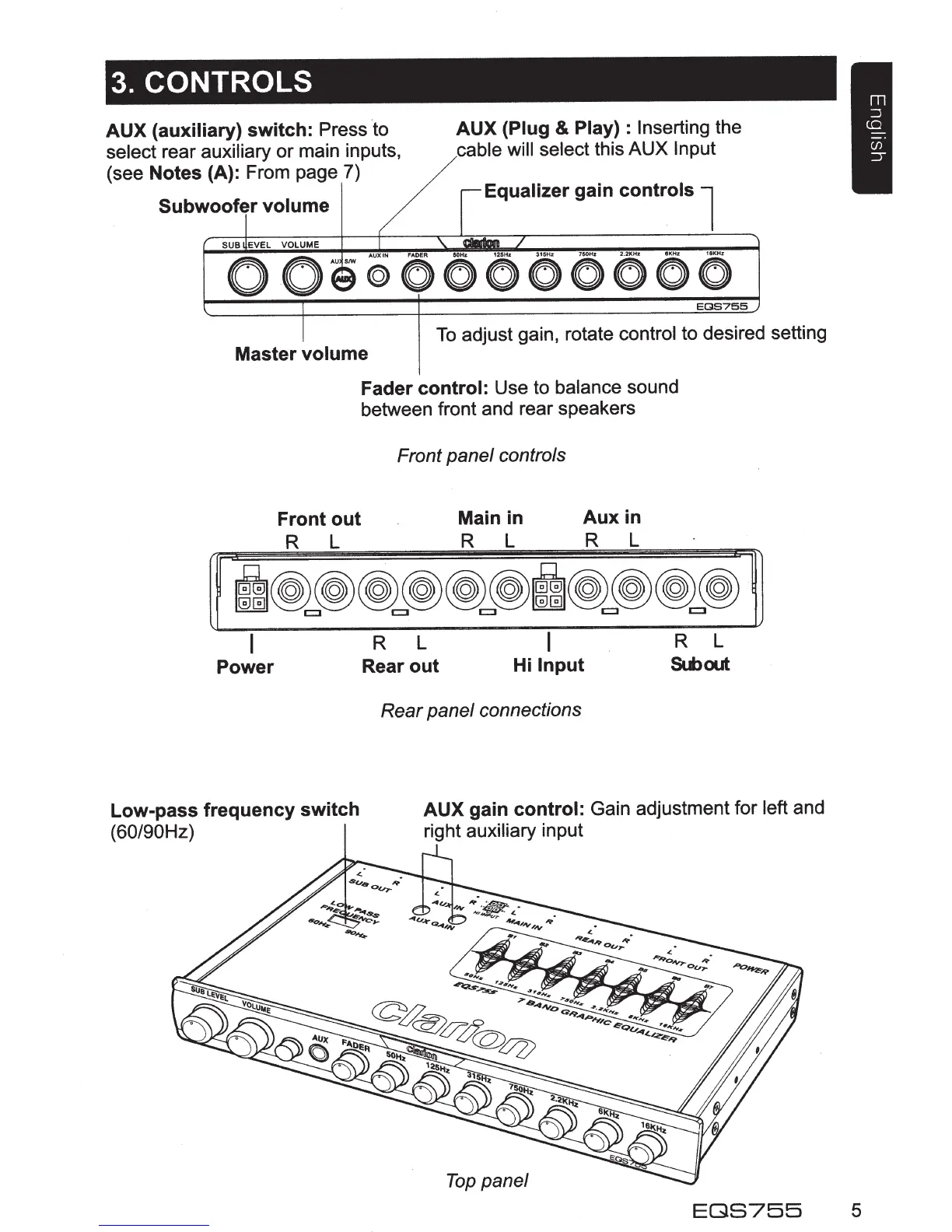

CONTROLS
AUX
(auxiliary)
switch:
Press to
select
rear
auxiliary
or
main inputs,
(see
Notes (A): From page 7)
AUX (Plug
& Play) :
Inserting
the
cable will select
this
AUX
Input
Subwoofer
volume
Equalizer
gain
controls
l
SUB
EVEL
VOLUME
EQS755
To
adjust gain, rotate
control to desired setting
Master
volume
Fader
control:
Use to
balance
sound
between front and rear speakers
Front panel controls
Front
out
Main
in
Aux
in
R L R L R L
Power
Low-pass
frequency
switch
(60/90Hz)
R L
Rear
out
Hi
Input
Rear panel connections
R L
&mout
AUX gain
control:
Gain adjustment for
left and
right
auxiliary
input
Top
panel
EQS755
5
