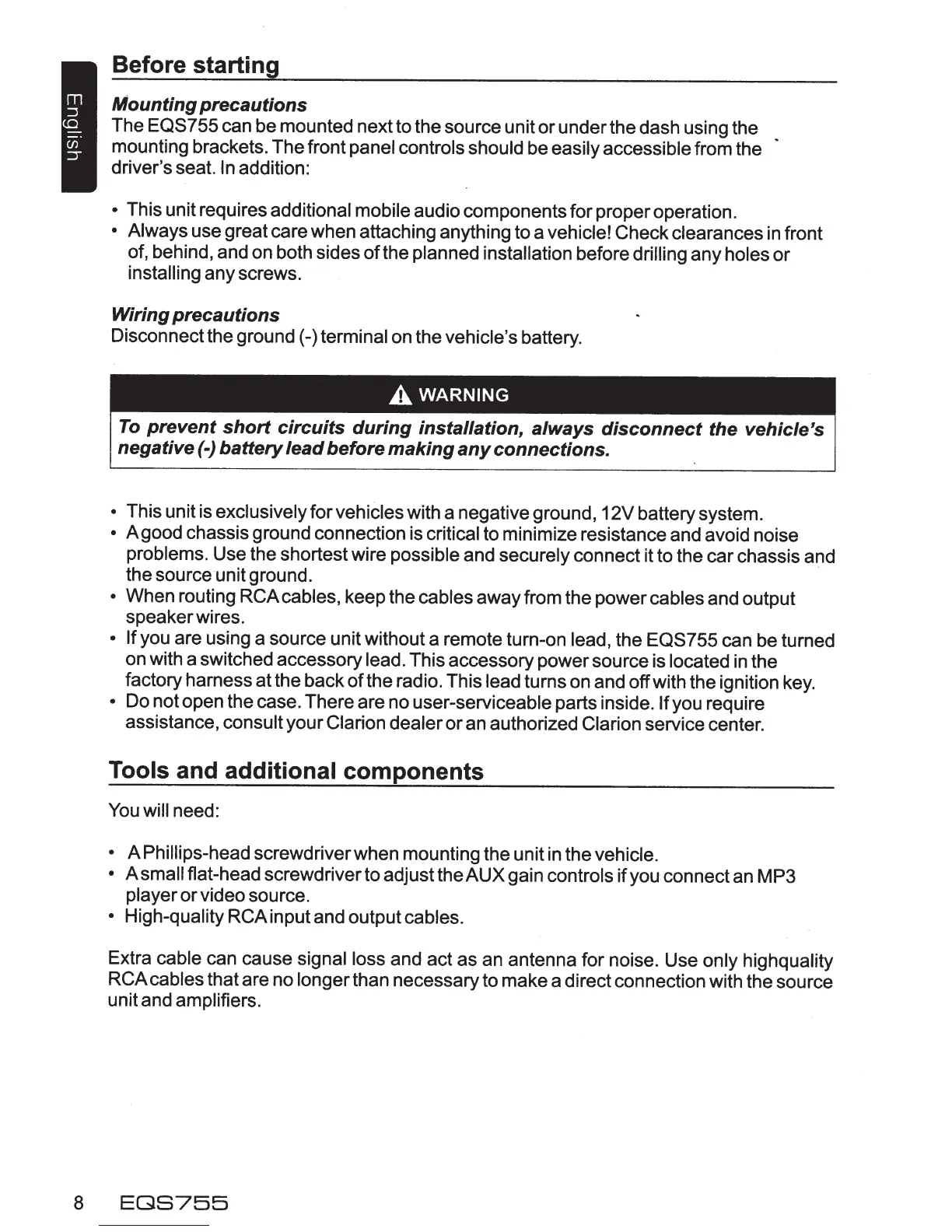

Before
starting
Mounting
precautions
The
EQS755 can be mounted next to the source unit or under the dash using the
mounting brackets. The front
panel controls should
be
easily accessible from the
driver's seat.
In
addition:
•
This unit requires additional mobile audio components for proper operation.
• Always use great care when attaching anything to a vehicle!
Check clearances
in
front
of, behind, and on both sides of the planned installation
before drilling
any holes
or
installing
any screws.
Wiring
precautions
Disconnect the ground (-)terminal
on
the vehicle's battery.
A
WARNING
To
prevent
short
circuits
during
installation,
always
disconnect
the vehicle's
negative(-)
battery
lead
before
making
any
connections.
•
This unit is exclusively
for vehicles with a negative ground, 12V battery system.
• A good chassis ground connection
is
critical to minimize resistance and avoid noise
problems. Use the shortest wire possible and securely connect it to the car chassis and
the source unit ground.
·
•
When routing
RCA
cables, keep the
cables
away from the power
cables
and output
speaker wires.
• If
you are using a source unit without a remote turn-on
lead,
the
EQS755 can
be
turned
on
with a switched accessory
lead.
This accessory power source is located
in
the
factory harness at the back
of
the radio. This lead
turns on and off with the ignition
key.
•
Do
not open the case. There are no user-serviceable parts inside. If
you require
assistance, consult your
Clarion
dealer or
an
authorized Clarion
service center.
Tools
and additional
components
You
will
need:
•
A Phillips-head screwdriver when mounting the unit
in
the vehicle.
• A
small flat-head screwdriver to adjust theAUX gain controls if you connect
an
MP3
player or video source.
•
High-quality
RCA
input and output cables.
Extra
cable
can cause signal
loss
and act as
an
antenna for noise. Use
only
highquality
RCA
cables that are no
longer
than necessary to make a direct connection with the source
unit and amplifiers.
8
EQS755
