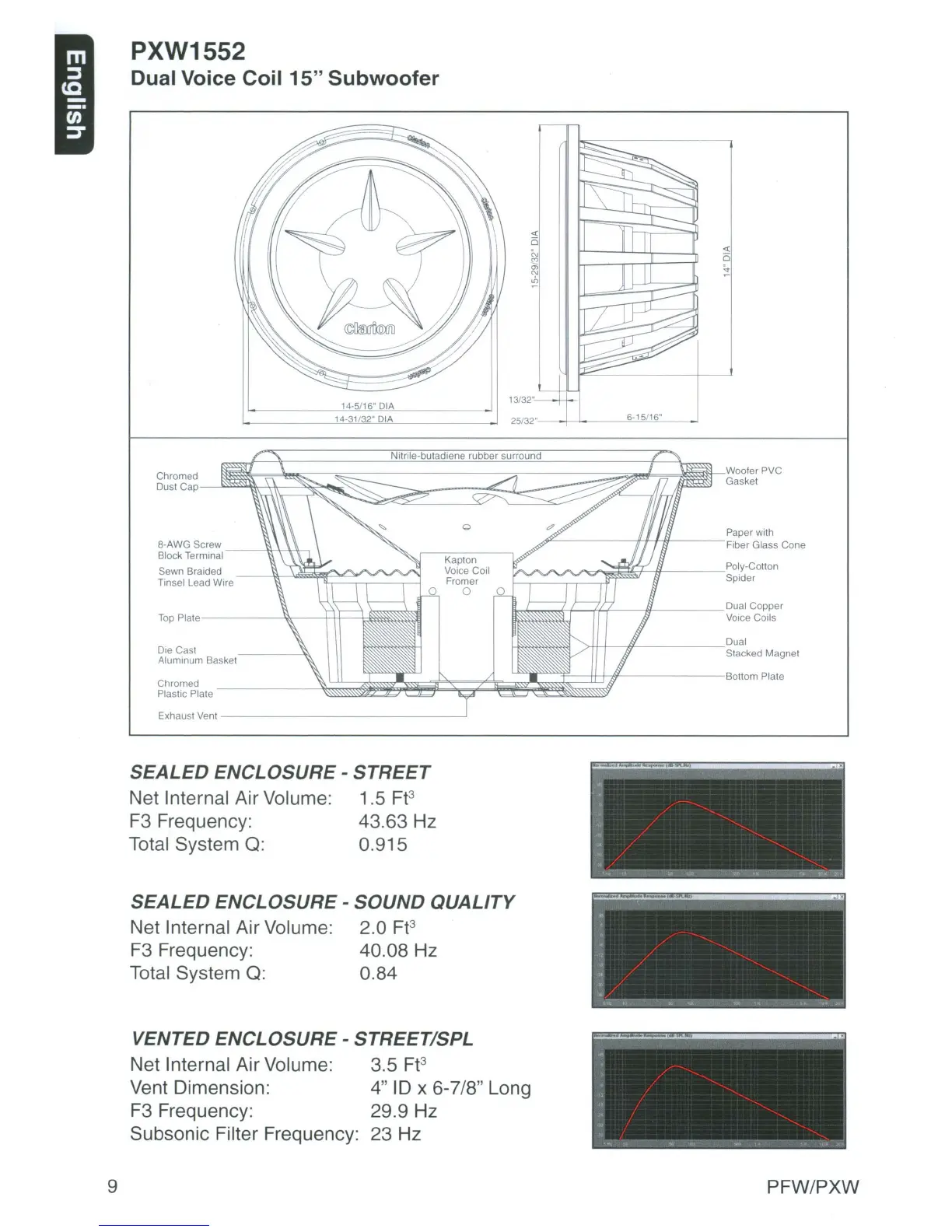

Clarion PFW User Manual

PXW1552
Dual Voice Coil 15" Subwoofer
14·5/16" DIA
, 4·31/32" DIA
Chromed
Dust Cap
8·AWG Screw
Block
Termlnal---\t-\..--\-'l"
Sewn Braided __ ,~~~~~~~~
Tinsel Lead Wire
Top
Plate----~--t-H-__<,
Die Cast
Aluminum Basket
13/32"'----++-1
25/32"'----+-- '--_----'6"-.·1""5/-"16'--" _---'
Paper with
,------HC-H/---Fiber Glass Cone
~A.-""J'J"~~~~r- POly-COtlOn
Spider
-f--fl'-{-----fl-----Dual Copper
VOice Coils
Dual
>+++---fl------Stacked Magnet
_
____ ~~~~~~~#~~~~~~i~~r------BOtlOm Plate
Chromed
PlastiC Plate
Exhaust Vent
--------------'
SEALED ENCLOSURE - STREET
Net Internal Air Volume: 1.5 Fts
F3 Frequency: 43.63 Hz
Total System
Q: 0.915
SEALED ENCLOSURE - SOUND QUALITY
Net Internal Air Volume: 2.0 Fts
F3 Frequency: 40.08 Hz
Total System
Q: 0.84
VENTEDENCLOSURE-STREEVSPL
Net Internal Air Volume: 3.5 Fts
Vent Dimension: 4" 10 x 6-7/8" Long
F3 Frequency: 29.9 Hz
Subsonic Filter Frequency: 23 Hz
9
PFW/PXW
