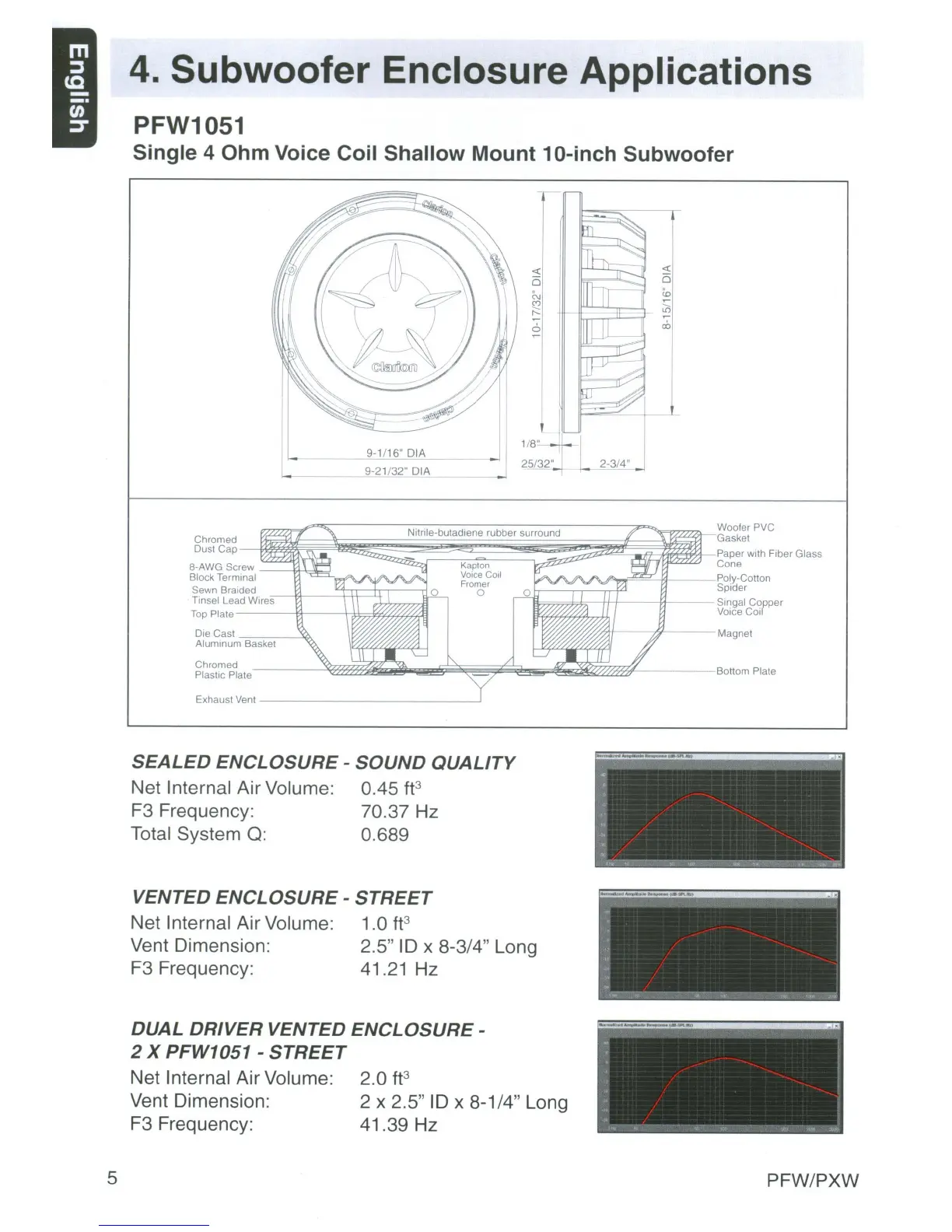

4. Subwoofer Enclosure Applications
PFW1051
Single 4 Ohm Voice Coil Shallow Mount 10-inch Subwoofer
<{
<{I
-I
0
0
N
Co,
~I
55!
01
ro
1/8'" +
25/32"_ 1-- 2-3/4" J
--J
9-1/16" DIA
9-21/32" DIA
Magnet
Bottom Plate
~
I~~~~~~~~~~~~~~~~~ii~wooferpvc
Chromed Gasket
Dust Cap Paper
With Fiber Glass
8-AWG Screw Cone
Block Termmal Poly-Cotton
Sewn Braided Spider
Tinsel Lead Wires
~;;:~;ICCo~pper
Top Plale-------l$I---+
O,e Cast ---,;---;--c:-------'~
Aluminum Basket
Chromed
---~~~~~"@!;!i!¥~~~!:!!;;;;.4!~~~'7---
Plastic Plate
Exhaust
Vent--------------'
SEALED ENCLOSURE - SOUND QUALITY
Net Internal Air Volume: 0.45 fP
F3 Frequency: 70.37 Hz
Total System
Q: 0.689
VENTED ENCLOSURE - STREET
Net Internal Air Volume: 1.0 fP
Vent Dimension: 2.5" 10 x 8-3/4" Long
F3 Frequency: 41.21 Hz
2.0
fP
2 x 2.5" 10 x 8-1/4" Long
41.39 Hz
DUAL DRIVER VENTED ENCLOSURE -
2 X PFW1051 - STREET
Net Internal Air Volume:
Vent Dimension:
F3 Frequency:
