3-6 Pod Symbols and Functions
4. Anti-drive and parking brake reminder function
When parking brake is engaged, the truck cannot be driven
although the directional switch closed. A parking brake alarm
shall be activated if key switch is turned to the OFF position
and the parking brake is not applied. Applying the park brake will
reset the alram.
5. Gauges and indicators

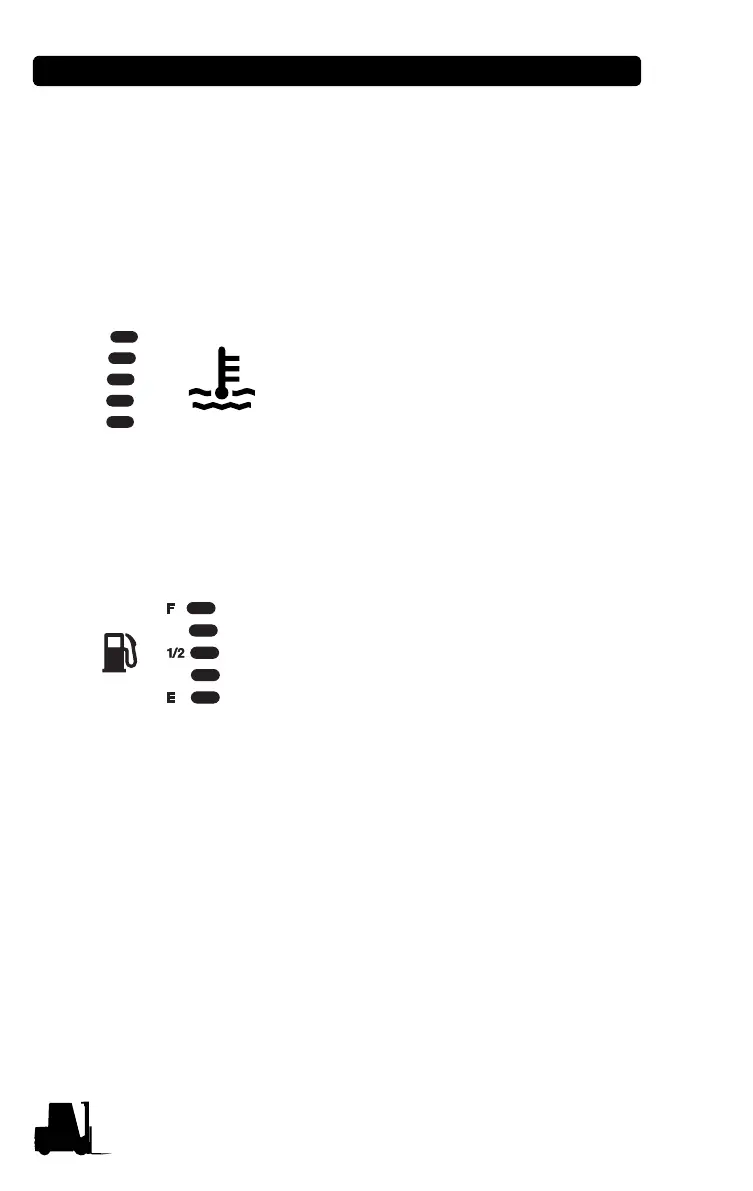

• Coolant temperature gauge
Five LEDs indicates whether engine
coolant is in cool (Blue), normal(two
Green, Yellow), or hot(Red) range. If
the indicator registers in the cool(Blue)
is still on in 5 minutes when the engine
is running, there is a problem with the
gauge, sender, or wiring harness. If the
indicator registors in the hot(Red) range, shut down the truck
and have it serviced.
• Fuel gauge
* Diesel and Gasoline truck
Indicates fuel level remaining in the tank.
* LPG Truck
All 3 green LEDs will light up when LPG tank pressure is
above 20 Psi and 1 red LED will turn ON and flash when the
LPG tank pressure is lower than 20 Psi.
LED Color Volume of Fuel
Green 80% above
Green 60% above
Green 40% above
Yellow 20% above
Red 20% below
Red LED flashes 10% below
LED Color Volume of Fuel
Green LPG tank is full, three green LEDs are on.
Green
Green
Yellow not used
Red LPG tank is empty (when pressure switch is
engaged), red LED is on and flashes.
FX1186
hot
norm
cold
FX1177
