Clark C300 40 - Before Operation Checks (Tilt and Lift Operations); Forward Tilt Operation and Halt; Lift Operation and Overhead Clearance; Load Descent Observation and Control

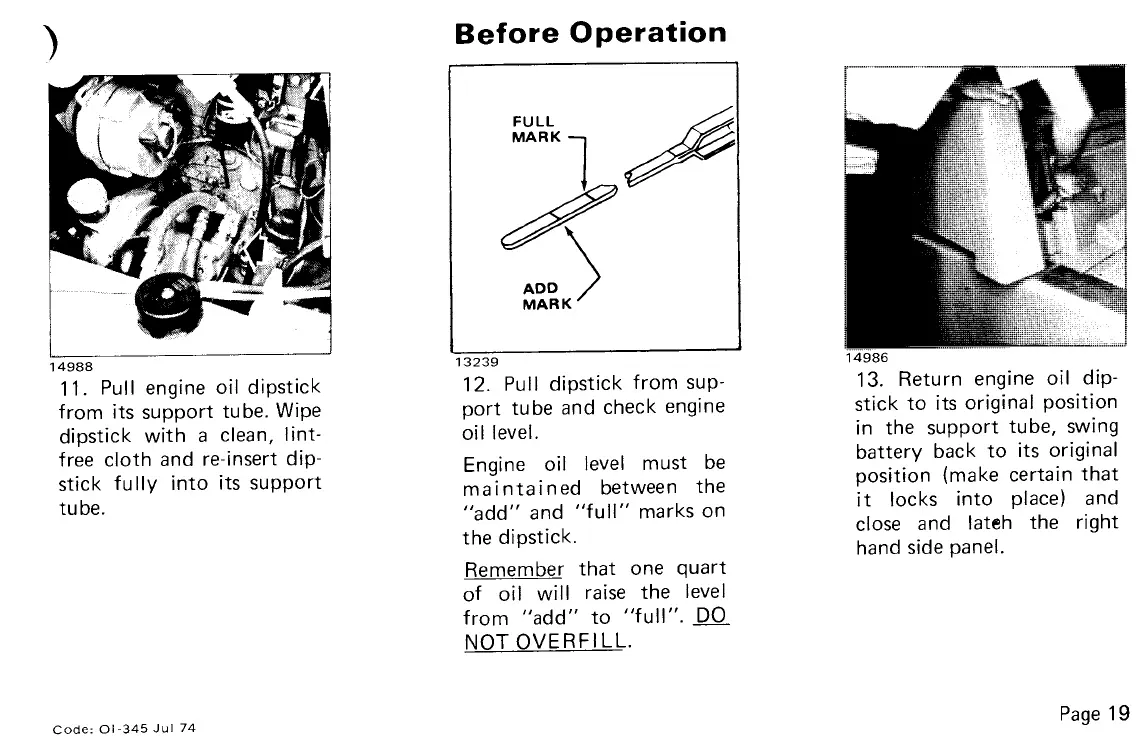

Before Operation
14988
11. Pull engine oil dipstick
from its support tube. Wipe
dipstick with a clean, lint-
free cloth and re-insert dip-
stick fully into its support
tube.
FULL
MARK
ADD
MARK
13239
12. Pull dipstick from sup-
port tube and check engine
oil level.
Engine oil level must be
maintained between the
"add" and "full" marks on
the dipstick.
Remember that one quart
of oil will raise the level
from "add" to "full". DO
NOT OVERFILL.
14986
13. Return engine oil dip-
stick to its original position
in the support tube, swing
battery back to its original
position (make certain that
it locks into place) and
close and lateh the right
hand side panel.
Code: OI-345 Jul 74
Page 19
