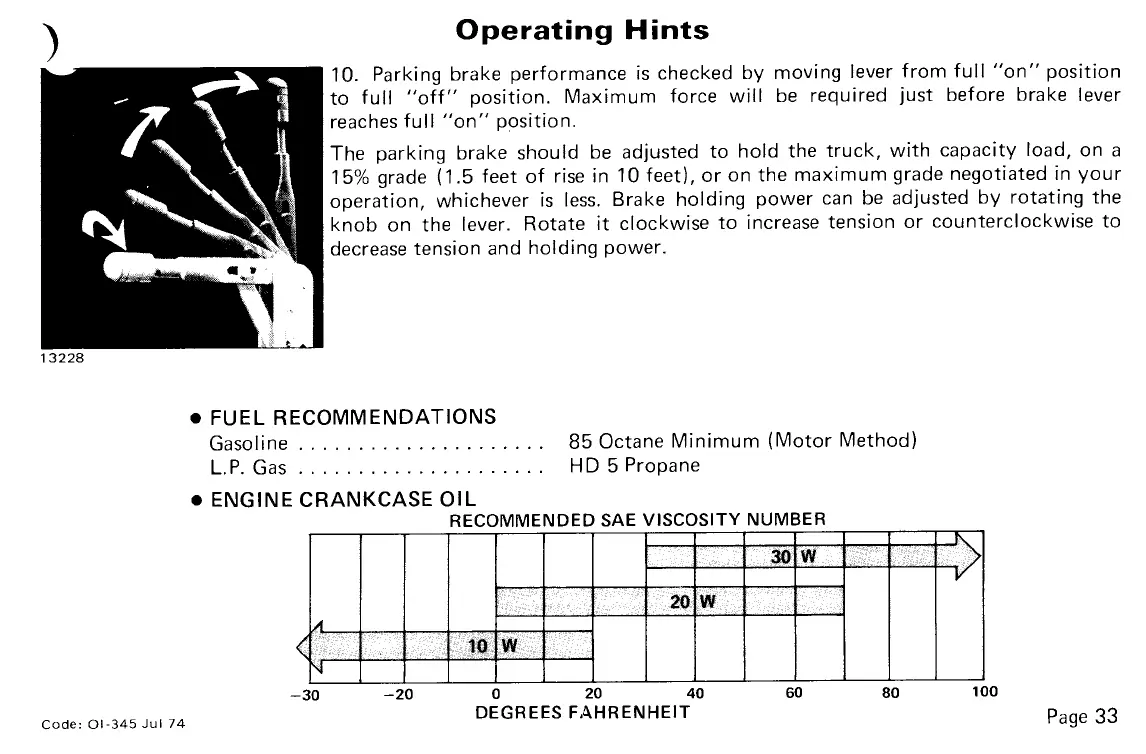

Operating Hints
10. Parking brake performance is checked by moving lever from full "on" position
to full "off" position. Maximum force will be required just before brake lever
reaches full "on" position.
The parking brake should be adjusted to hold the truck, with capacity load, on a
15% grade (1.5 feet of rise in 10 feet), or on the maximum grade negotiated in your
operation, whichever is less. Brake holding power can be adjusted by rotating the
knob on the lever. Rotate it clockwise to increase tension or counterclockwise to
decrease tension and holding power.
13228
• FUEL RECOMMENDATIONS
Gasoline 85 Octane Minimum (Motor Method)
L.P. Gas HD 5 Propane
• ENGINE CRANKCASE OIL
RECOMMENDED SAE VISCOSITY NUMBER
A
M
10
w
20
w
30 W
>
V
-30
Code: 01-345 Jul 74
-20
0 20 40
DEGREES FAHRENHEIT
60
80
100
Page 33
