4-10 GEX,GTX Operator Compartment

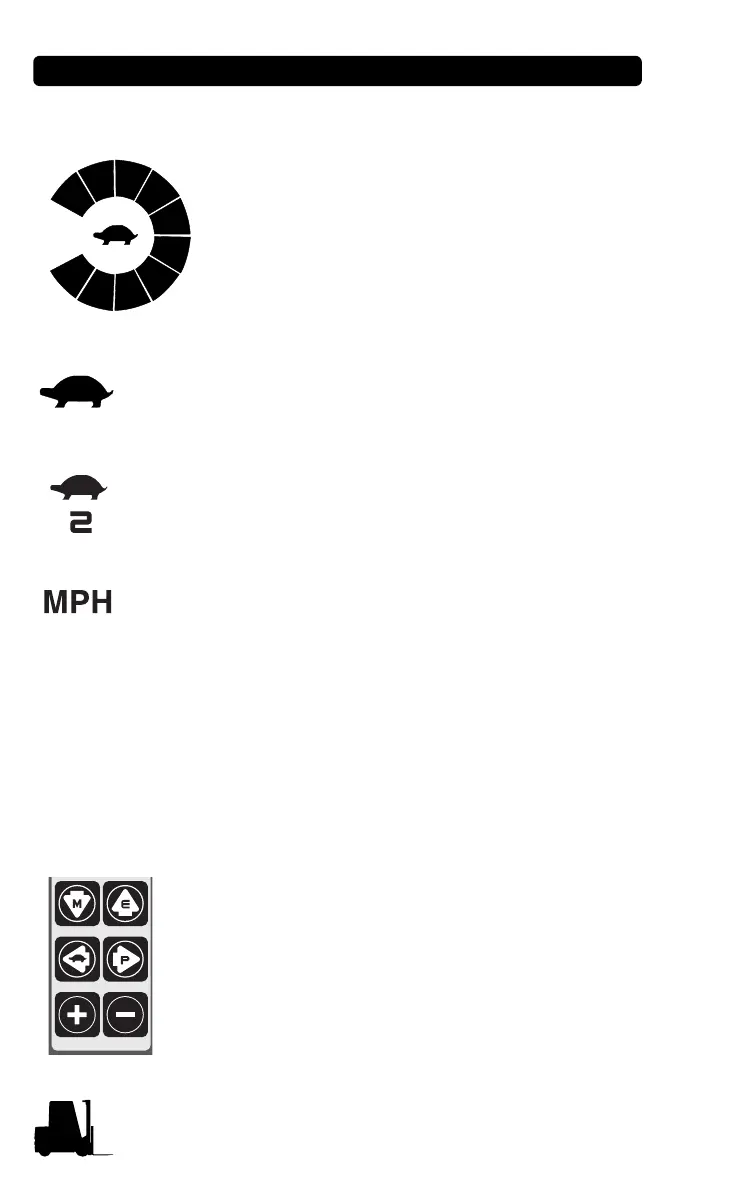

Speed limit rate indicator (ECX)
This indicating lamp shows the traveling speed
limit rate. One segment will turn off when the
speed limit rate is reduced by 10%.
Displays the maximum allowable travel speed.
When all segments are lit, no restriction is
present. If the speed is limited, the appropriate
number of segments will be lit.
Speed limit function indicator (ECX): This indicating
lamp shows traveling speed is limited. It will turn on when
the traveling speed limit function of fork lift truck is
working.
Slow-speed indicator (GEX,GTX): The traveling speed
of truck is limited to set speed.
The upper mark is slow speed operating icon, and the
figure shows the limited max. speed. (In upper example,
the limited max. speed is 2MPH)
Traveling speed indicator (ECX): This icon is shown
when the truck is moving.
Seat switch (ECX): If the operator leaves the seat without setting
the park brake regardless of key switch position (IGN. ON or OFF)
for more than two (2) seconds, the ICON shall flash during the
complete procedure. At first the internal beeper shall beep 5 times
and after that the horn shall beep 5 times. Setting the park brake will
reset the alarm.
Mode Selection Button (GEX,GTX)
6 mode selection buttons are located on right side of
LCD.
Each button has specific function, and some have
multiple functions.
