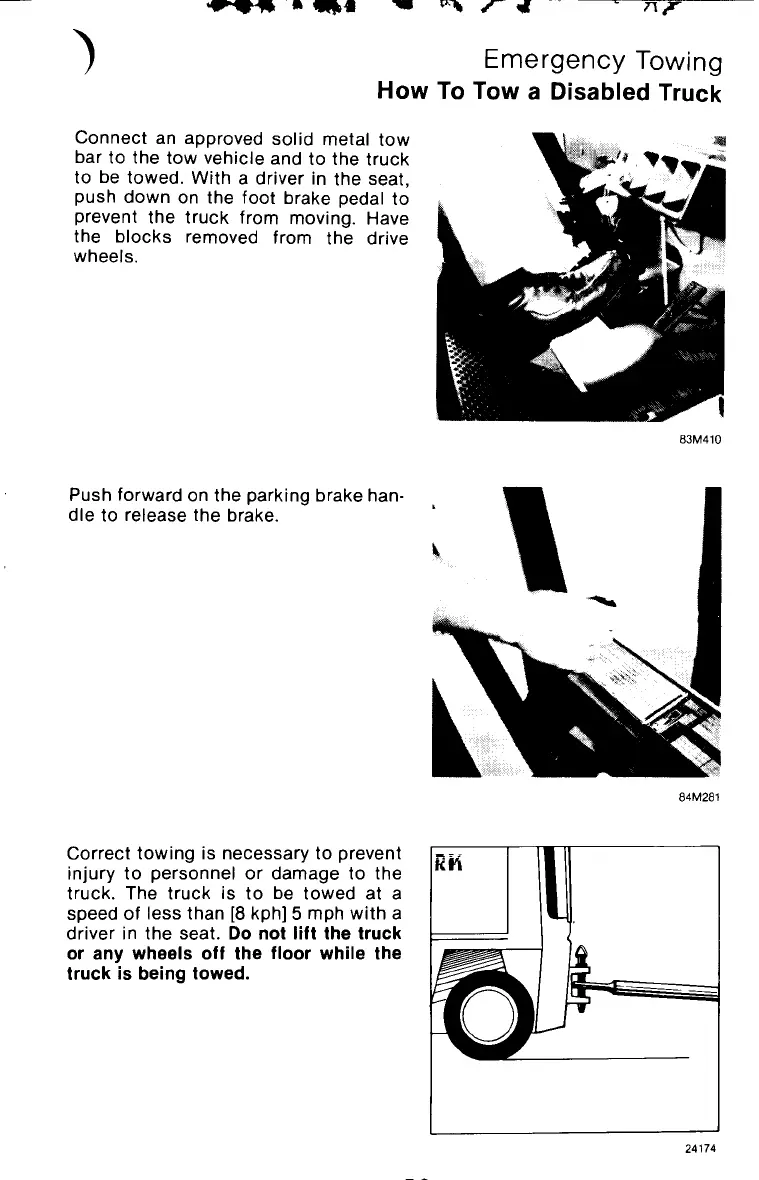

Clark GCS 17 - Page 97

Operating Hazards Emergency Towing
How To Tow a Disabled Truck
AWARNING:
Low overhead
Connect an approved solid metal tow
bar to the tow vehicle and to the truck
to be towed. With a driver in the seat,
push down on the foot brake pedal to
prevent the truck from moving. Have
the blocks removed from the drive
wheels.
Watch overhead:
moving into
overhead struc-
tures or tilting
heavy loads too far
forward can tip a
truck over.
83M410
Push forward on the parking brake han-
dle to release the brake.
Know the height of your truck.
Check your clearance.
84M281
Correct towing is necessary to prevent
injury to personnel or damage to the
truck. The truck is to be towed at a
speed of less than [8 kph] 5 mph with a
driver in the seat. Do not lift the truck
or any wheels off the floor while the
truck is being towed.
Keep loads
low and tilted
back.
24174
7.3
