Clark GCS 20 - Safety Inspection Procedures

Operator Maintenance

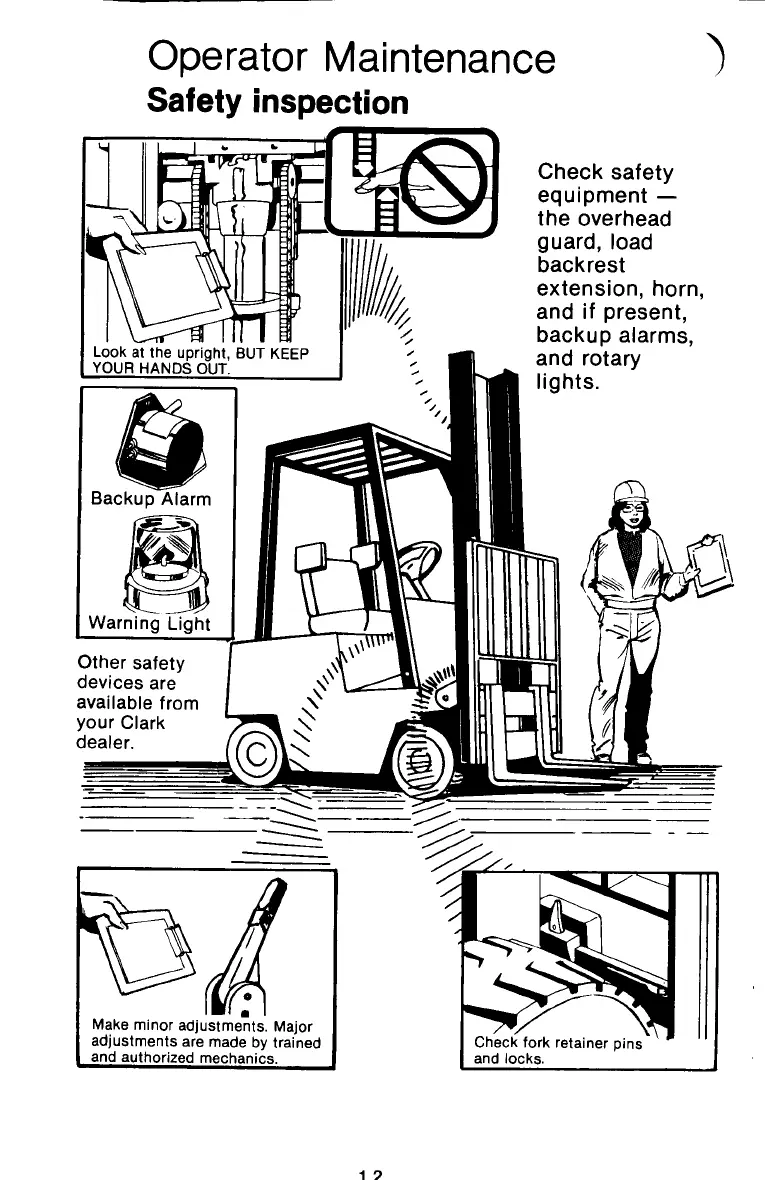

Safety inspection
Check safety
equipment —
the overhead
guard, load
backrest
extension, horn,
and if present,
backup alarms,
and rotary
lights.
Look at the upright, BUT KEEP
YOUR HANDS OUT.
Backup Alarm
Warning Light
Other safety
devices are
available from
your Clark
dealer.
Make minor adjustments. Major
adjustments are made by trained
and authorized mechanics.
Check fork retainer pins
and locks.
1.2
Specifications
Truck Specifications
Fill capacities/fluid volumes:
Fuel Tank -- Gasoline/Diesel [30,0 L] 8 gal
LPG [ICC Horiz Tank] [15 kg] 33.5 Ib
Cooling System:
Mitsubishi 2.6L Gasoline/LPG [8,5 L] 9 qt
Waukesha 2.9L Gasoline/LPG [10,4 L] 11 qt
Continental 2.7L Gasoline/Diesel [8,5 L] 9 qt
Engine Oil, w/Filter
Mitsubishi 2.6L Gasoline/LPG [4,5 L] 4.8 qt
Waukesha 2.9L Gasoline/LPG [4,7 L] 5.0 qt
Continental 2.7L Gasoline/LPG [6.65 L] 7.0 qt
Continental 2.7L Diesel [6.65 L] 7.0 qt
Transaxle [Transmission & Drive Axle]
HR500 [15,1 L] 32 pints
HR600 [12, 8 L] 27 pints
TA18 [15,1 L] 32 pints
Hydraulic Sump Tank [Useable Volume] [20, 8 L] 5.5 gal
Hydraulic system relief pressure setting:
Lift and Tilt Model 17,20 [16200 kPa] 2350 psi
[Adjustable] 22,35 [18270 kPa] 2650 psi
27,30 [20685 kPa]3000 psi
Steering system relief pressure setting: [8615 kPa]1250 psi
Engine speed settings: [+1 H 50 rPm
Engine 2.6 L
Transaxle HR500 HR600
*ldle Speed, 600 600
rpm Max.
No-Load
Governed
Speed,
rpm 2300-2600 2350-2650
2.7 L
HR600
600
2.9 L
HR600
550
2.6 L
TA18
600
2350-2650 2350 2300-2600
Electrical system: 12 volt DC, Negative Ground
Alternator: 37 amp
Battery Rating [Cold-Crank]:
Gasoline/LPG -- Water-Fill Type 12v DC -295 amps @ 0°F
Gasoline/LPG --Maintenance-Free 12 v DC -- 320 amps @ 0°F
Diesel -- Maintenance-Free 12 v DC --625 amps @ 0°F
Idle speed must be adjusted so truck has adequate oil supply to steer correctly.
'Idle speed must be adjusted so truck (when empty) does not have excessive
creep speed. Creep speed should be limited to 2 ft. per second.
9.3
