Clark NP 300 - Page 5

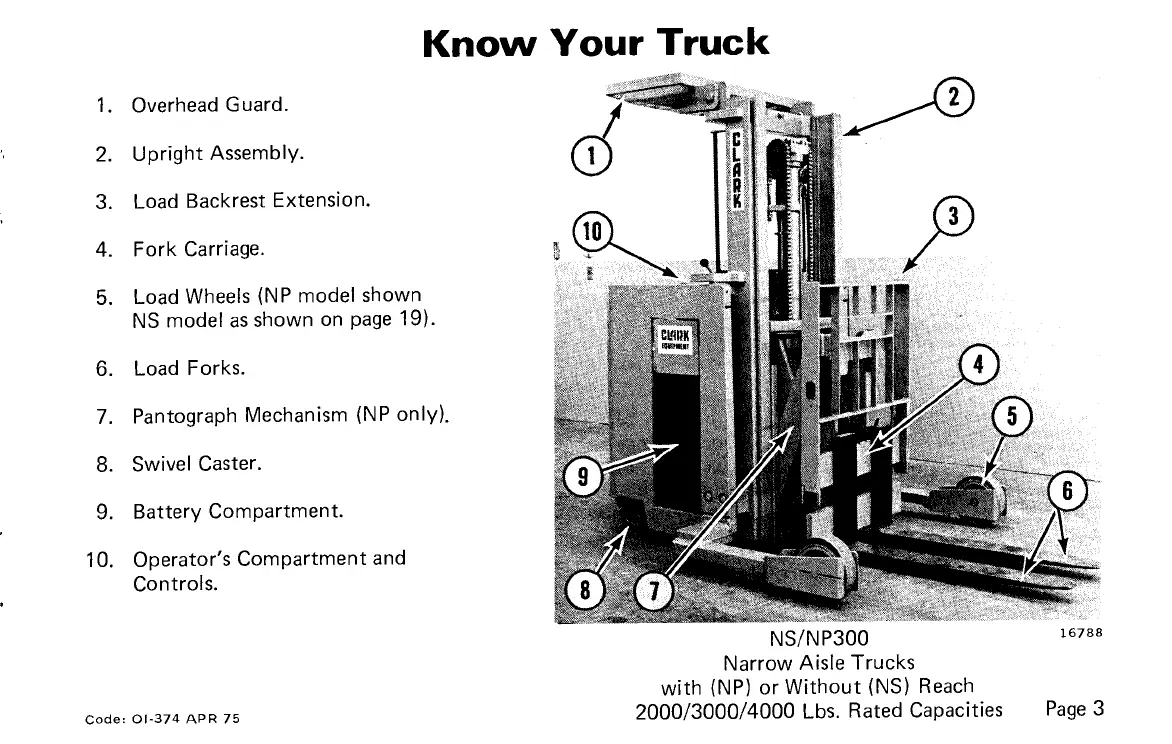

Know Your Truck
1. Overhead Guard.
2. Upright Assembly.
3. Load Backrest Extension.
4. Fork Carriage.
5. Load Wheels (NP model shown
NS model as shown on page 19).
6. Load Forks.
7. Pantograph Mechanism (NP only).
8. Swivel Caster.
9. Battery Compartment.
10. Operator's Compartment and
Controls.
Code: OI-374 APR 75
NS/NP300 16788
Narrow Aisle Trucks
with (NP) or Without (NS) Reach
2000/3000/4000 Lbs. Rated Capacities Page 3
