3-4 Fuel Level Indicator (diesel and gasoline models)
Accurately displays the remaining fuel for trucks using diesel or
gasoline.
If using LPG, only the FULL (blue) and EMPTY (red) levels are
indicated. When the low fuel icon begins flashing, the truck must be
immediately parked and the fuel tank renewed before the engine
shuts down.

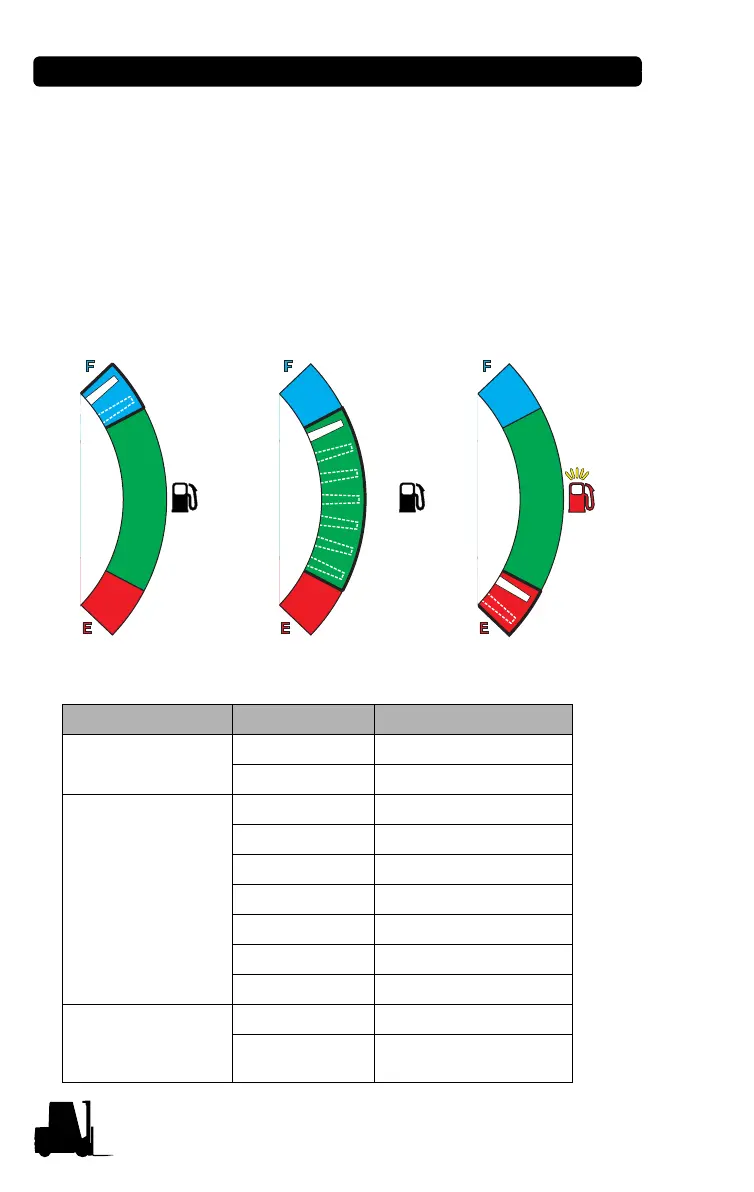

3-Zone specification
Zone Gauge Step Level
BLUE
(Top)
2 91 ~ 100 %
1 81 ~ 90 %
GREEN
(Middle)
7 71 ~ 80 %
6 61 ~ 70 %
5 51 ~ 60 %
4 41 ~ 50 %
3 31 ~ 40 %
2 21 ~ 30 %
1 11~ 20 %
RED
(Bottom)
*ICON Flashing
26 ~ 10 %
10 ~ 5 %
RED
2
7
1
6
2
2
1
5
3
4
1
GREENBLUE
