Clark S20 D - Page 47

Display 3-9
Section 3. Operator Compartment and Controls
Coolant Temperature Indicator

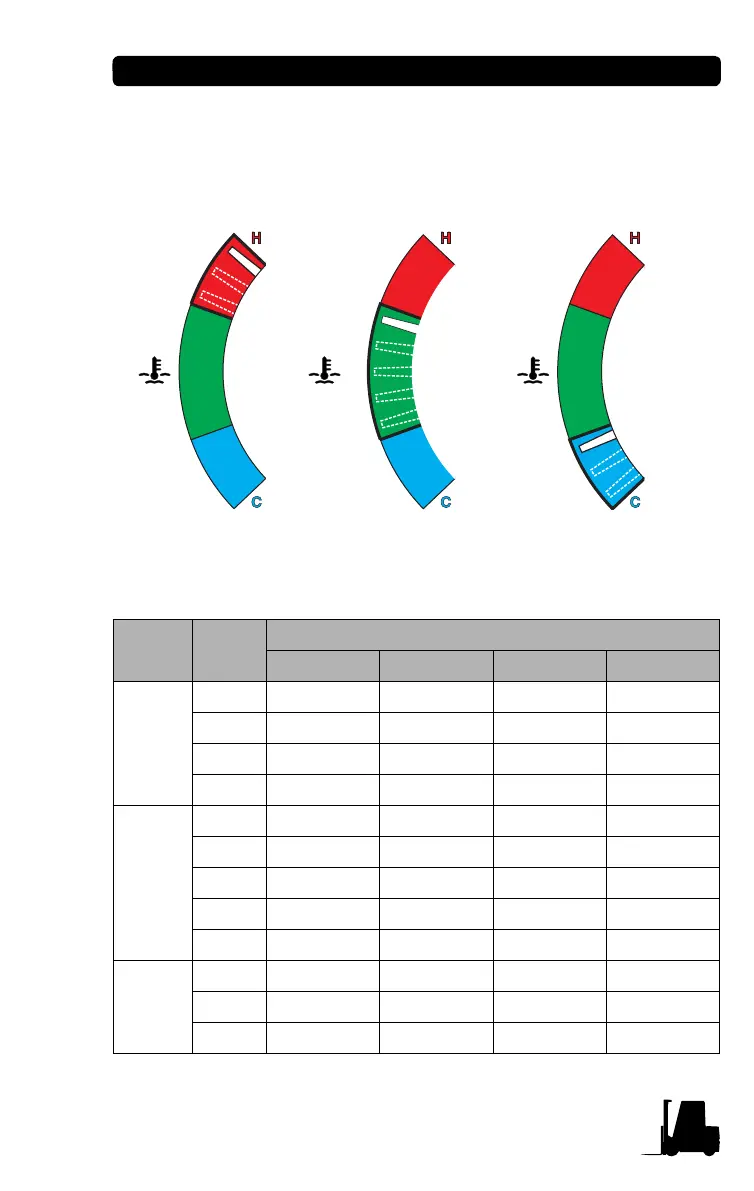

Show current truck coolant temperature.
3-Zone specification
Zone
Gauge
Step
Truck Engine Type
YANMAR ISUZU PSI FORD
RED
(Top)
4 118°C ~ 112°C ~ 108°C ~ 123°C ~
3 116~117°C 110~111°C 106~107°C 120~122°C
2 113~115°C 100~109°C 104~105°C 117~119°C
1 110~112°C 98~99°C 100~103°C 115~116°C
GREEN
(Middle)
5 101~109°C 91~97°C 91~99°C 112~114°C
4 86~100°C 81~90°C 81~90°C 96~111°C
3 71~85°C 71~80°C 71~80°C 81~95°C
2 56~70°C 61~70°C 61~70°C 61~80°C
1 41~55°C 41~60°C 41~60°C 41~60°C
BLUE
(Bottom)
3 21~40°C 21~40°C 21~40°C 21~40°C
2 1~20°C 1~20°C 1~20°C 1~20°C
1~ 0°C~ 0°C~ 0°C~ 0°C
RED
3
5
3
2
1
4
3
2
1
2
1
GREEN BLUE
